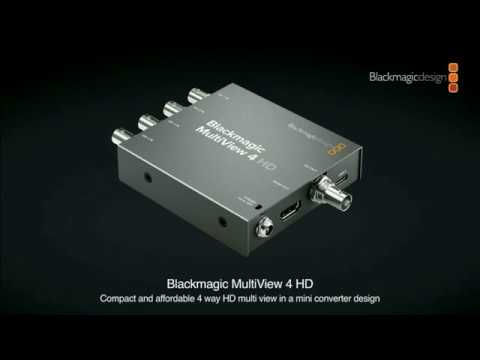

Blackmagic Design MultiView 4 HD
50.00€ + IVA /dia
O Blackmagic Design MultiView 4 HD é um mini-conversor compacto que permite exibir até quatro fluxos SDI separados por meio das suas saídas multiview HDMI ou SDI de 10 bits. Esta unidade suporta os formatos SD/ HD/ 3G-SDI, e possui detecção automática de sinal, SDI re-clocking e monitoramento de suporte EDID.
Pontos chave:
- 4 x SD/HD/3G-SDI Inputs
- 1 x SDI & 1 x HDMI Outputs
- Deteção Automática de Sinal
- SDI Re-Clocking on Output
Artigos incluídos neste aluguer
- 1x Blackmagic Design MultiView 4 HD
- 1x 12V Universal Power Supply
- 1x International Socket Adapters
Produtos Relacionados
-
Mini Converter SDI to HDMI
Referência: 2300325.00€ + IVA /dia Seleccionar Datas -
Mini Converter HEAVY DUTY SDI to Analog
Referência: 2300225.00€ + IVA /dia Seleccionar Datas -
Conversor de Bateria SDI to HDMI
Referência: 2300125.00€ + IVA /dia Seleccionar Datas -
Decimator – MD-HX conversor HDMI-SDI bidireccional
Referência: 2300525.00€ + IVA /dia Seleccionar Datas
Informação Adicional
Características (em inglês)
Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD’s metal housing measures approximately 5.3 x 3.6″, and it includes a power supply with international adapters.
Features
- Four SDI inputs output to one SDI and one HDMI multiview
- Automatic signal detection, SDI output re-clocking
- Monitor any combination of HD or SD formats, and frame rates
- Display custom labels, audio metering, and more on each view
Especificações Técnicas
Blackmagic Design HDL-MULTIP3G/04HD Specs
Connections
Inputs | SD/HD/3G-SDI: 4 x BNC |
Outputs | SD/HD/3G-SDI: 1 x BNC, 10-bit HDMI: 1 x Type A |
Standards
Supported Video Standards | 2K DCI: 1080p: 25/24/23.98HD: 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50NTSC SD: 525i: 59.94 PAL SD: 625i: 50 |
SDI Compliance | SMPTE 425M-B/310M/296M/292M/259M ITU-R BT.656/BT.601 |
SDI Color Precision | 10-bit 4:4:4, 4:2:2 |
SDI Color Space | Inputs: YUV, RGB Output: YUV |
SDI Video Sampling | 4:4:4, 4:2:2 |
SDI Audio Sampling | 24-bit, 48 kHz |
SDI Metadata Support | SMPTE 352M |
Operating System Support
Compatible Operating Systems | MacOS 10.12 Sierra MacOS 10.13 High Sierra, or later Windows 8.1, or 10 |
Power
Power Consumption | 5.5 W |
Operational Voltage Range | 6 to 36 VDC |
Physical and Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Relative Humidity (non-condensing) | 0 to 90% |
Dimensions | 3.1 x 4.8 x 1.2″ / 79.5 x 123 x 29.5 mm |
Weight | 8.53 oz / .24 kg |
