Reference:
50163
Categories:

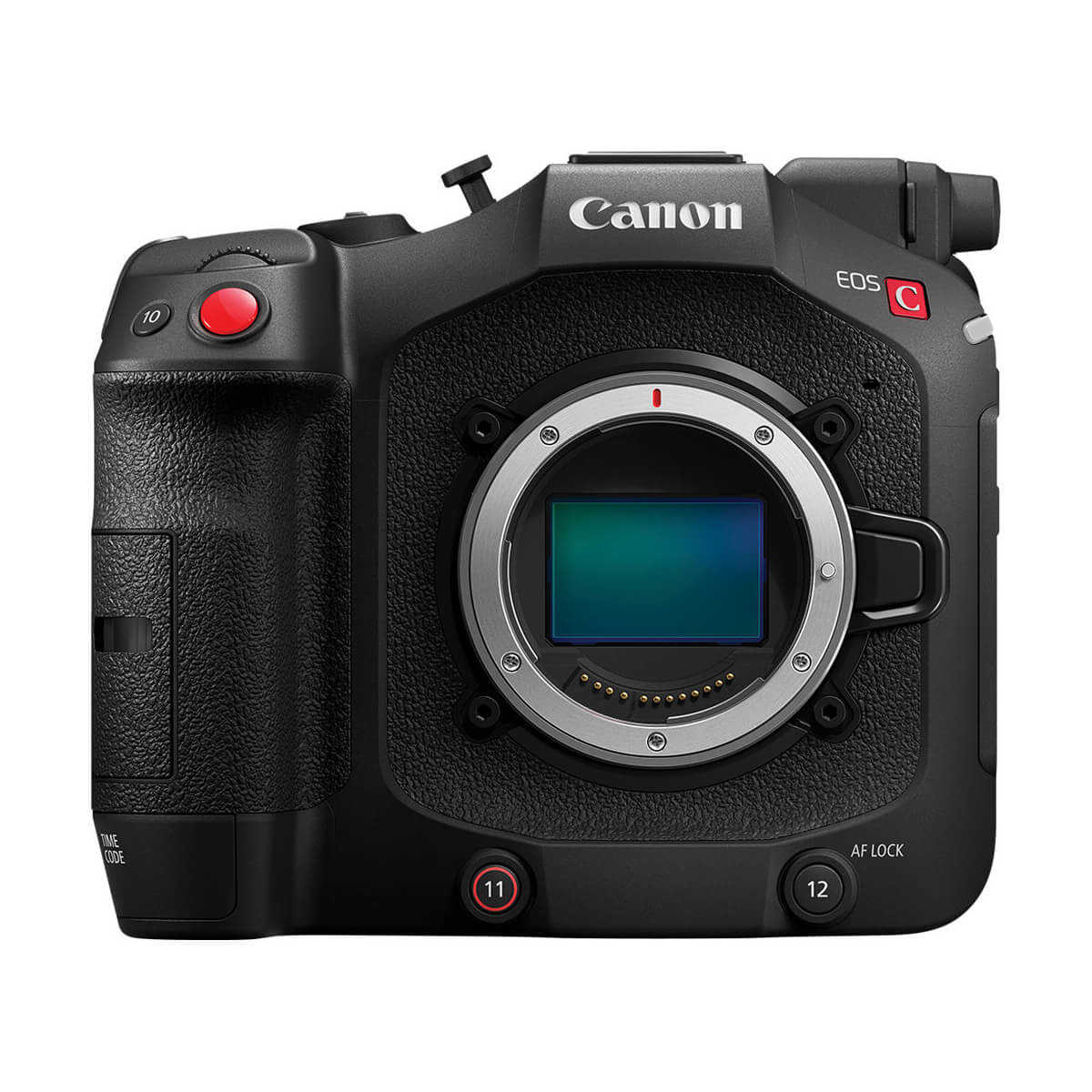

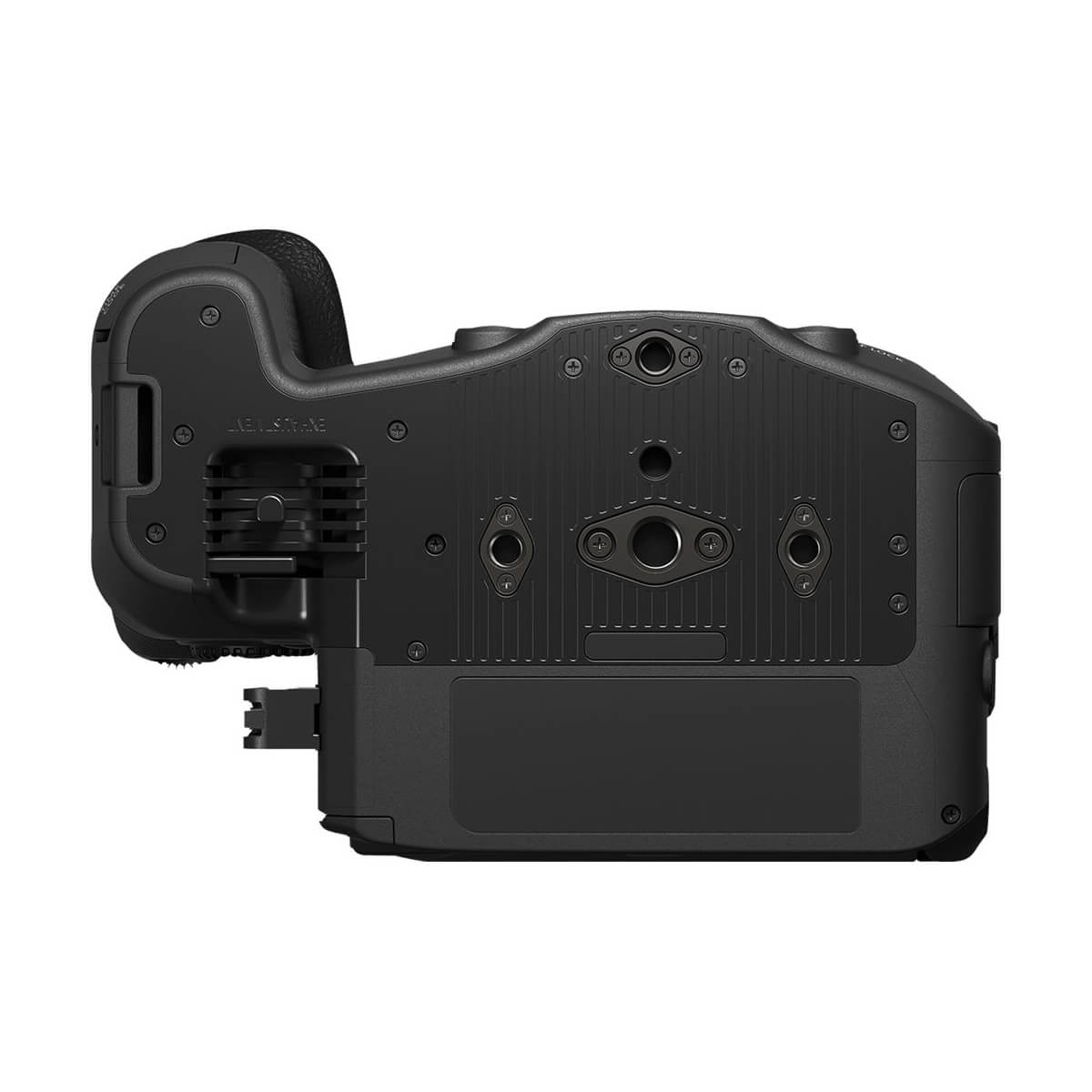

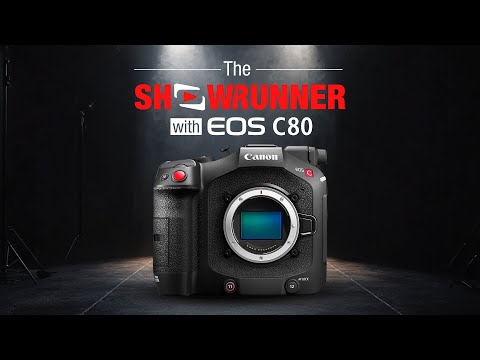

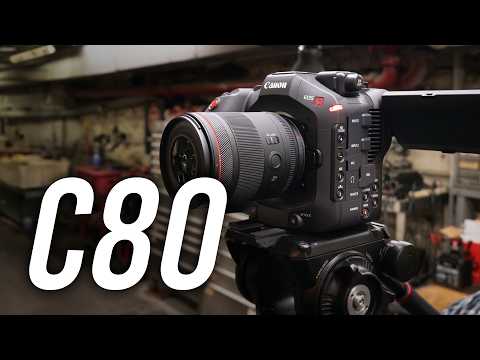

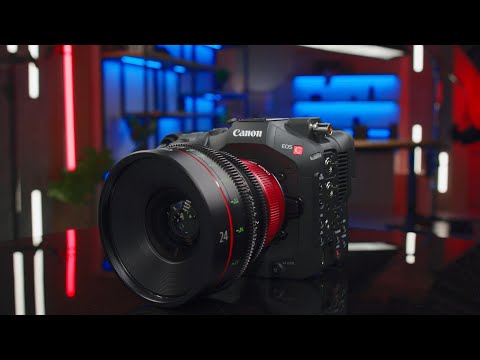

Canon EOS C80 6K Full-Frame Cinema Camera

210,00 € + IVA /day

+ More Info
6K Full-Frame Cinema Capture in a Mirrorless Form
Offering exceptional 6K30 full-frame capture in a compact form, the Canon EOS C80 6K Full-Frame Cinema Camera melds the EOS C400’s CMOS sensor with a lightweight design similar to the EOS C70. Ideal for fast-paced capture and solo operators, this digital camera features triple ISO bases of 800, 3200, and 12,800 in log/raw, upgraded Dual Pixel CMOS AF II autofocus, and simultaneous 12G-SDI and HDMI video output. The EOS C80’s RF mount provides compatibility with fast, reliable Canon RF lenses, and a motorized ND filter wheel enables on-the-fly exposure tweaking.

_______
Key Features:

  • 6K FF Back-Illuminated CMOS Sensor
  • 6K30, DCI 4K/2K, UHD 4K120 S35 Recording
  • Full Frame and Super35 Modes
  • 12G-SDI and HDMI Simultaneous Output

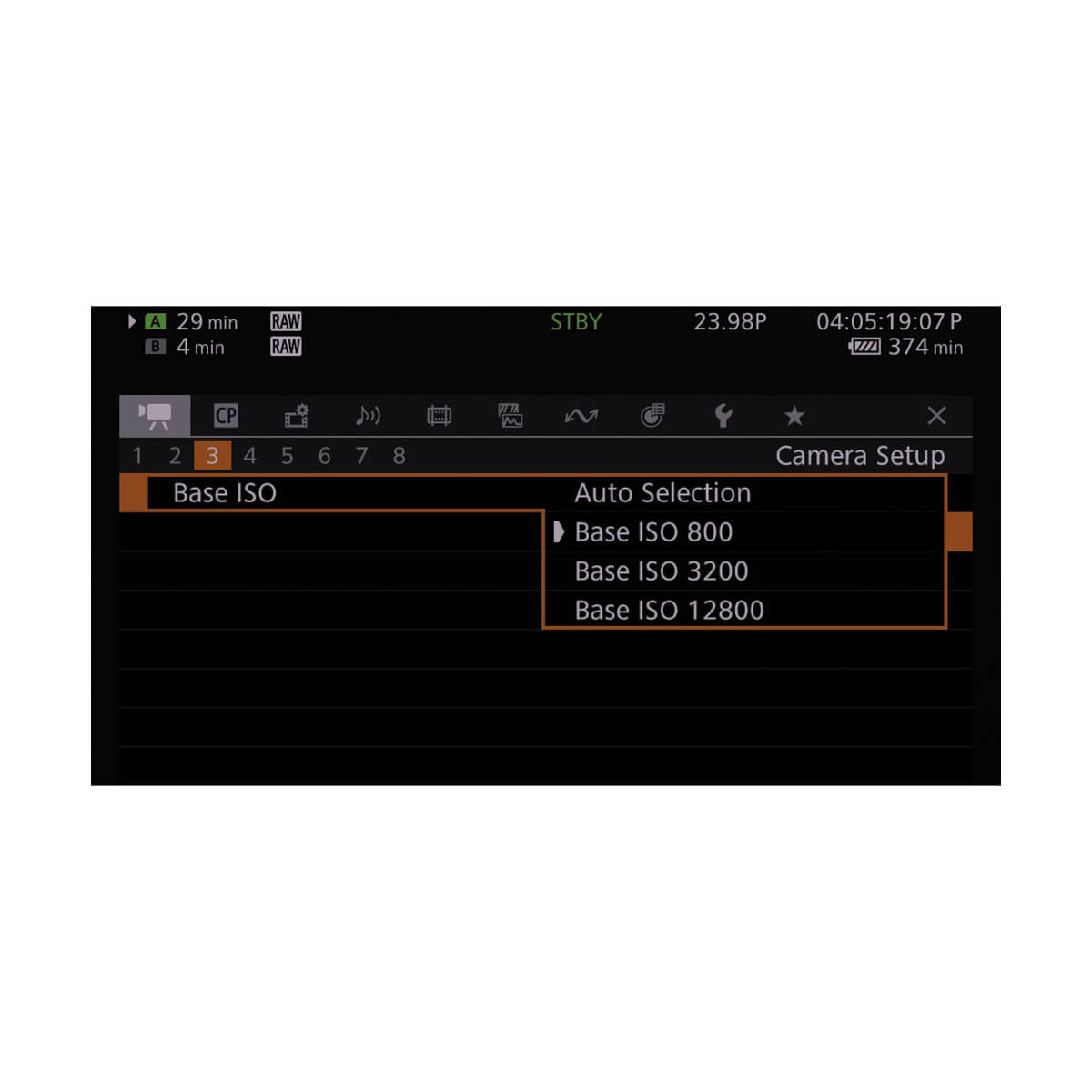

  • Triple-Base ISO: 800, 3200, 12,800
  • Cinema Raw Light LT, HEVC, AVC Codecs
  • 16+ Stops of Total Dynamic Range
  • Dual-Pixel CMOS AF II, Built-In NDs
  • 1 x BNC Timecode, 2 x Mini-XLR Audio In
  • 2 x SD Card Slots, LUT/Long GOP Support

____________

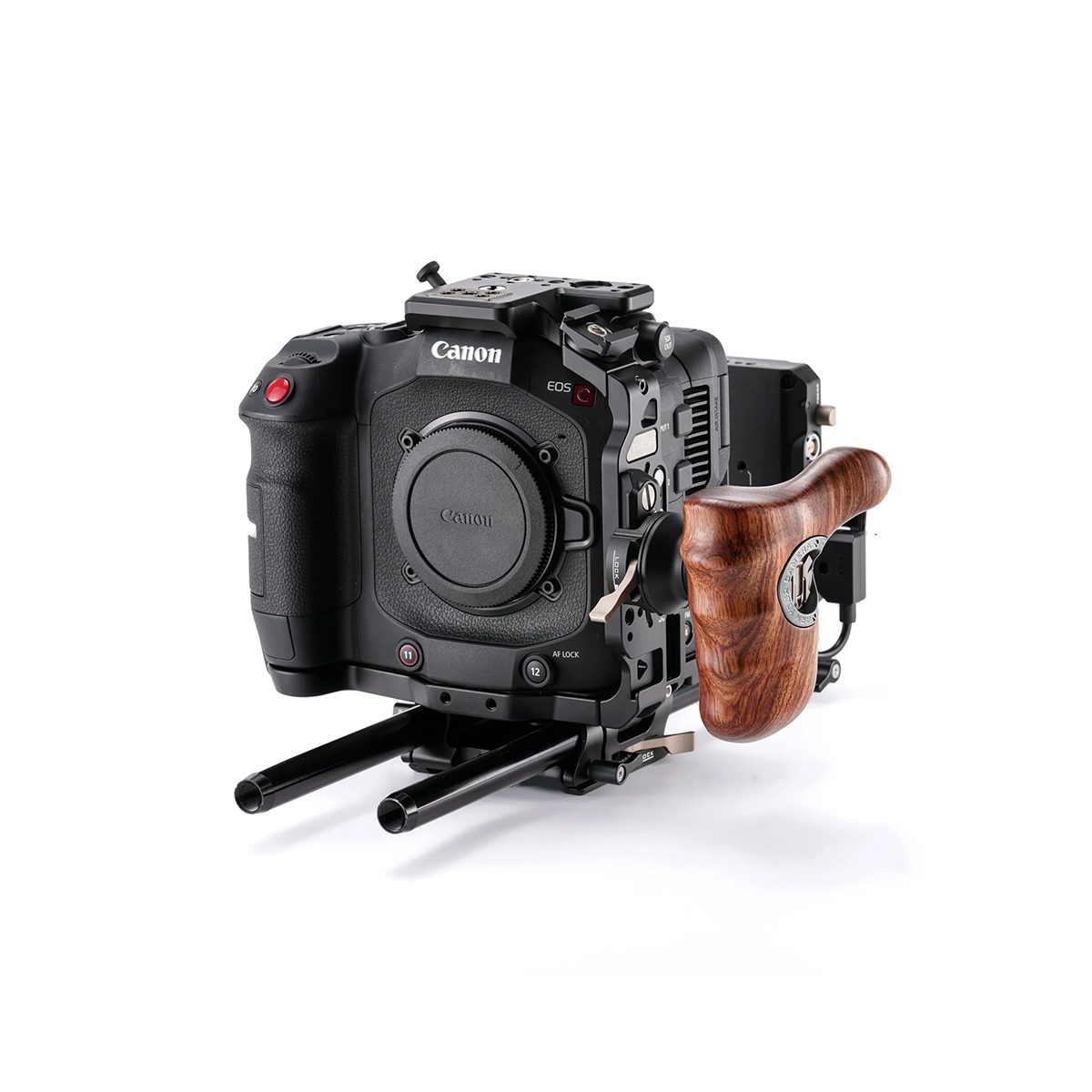

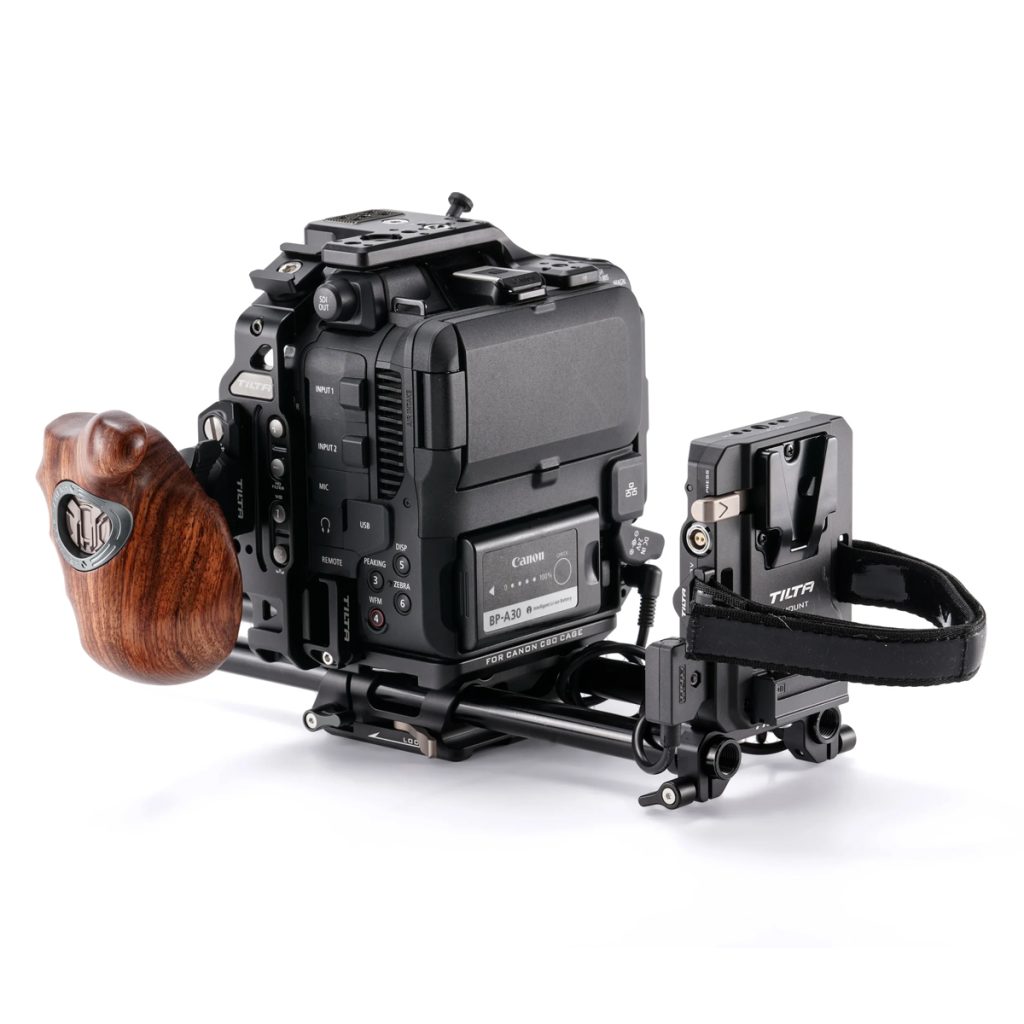

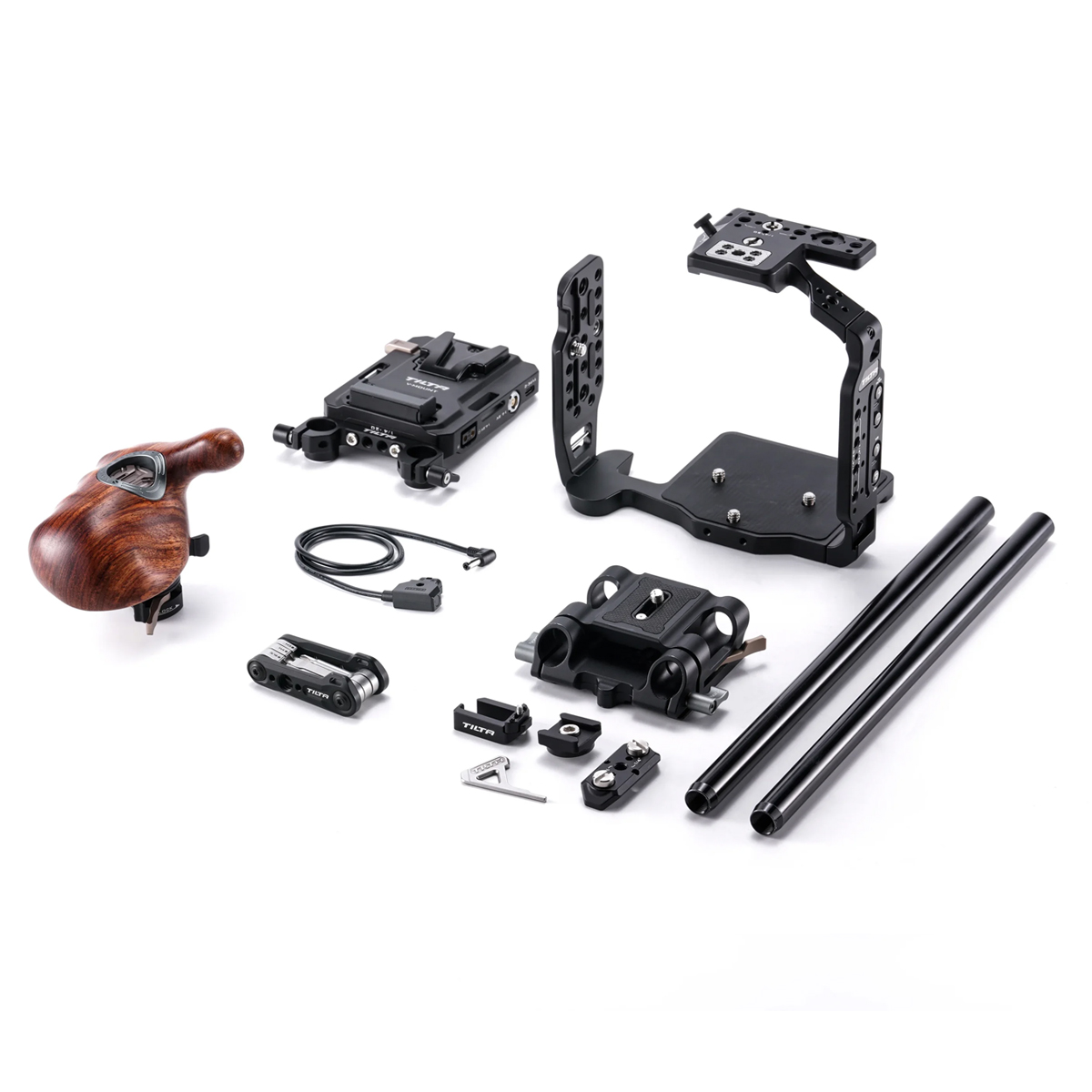

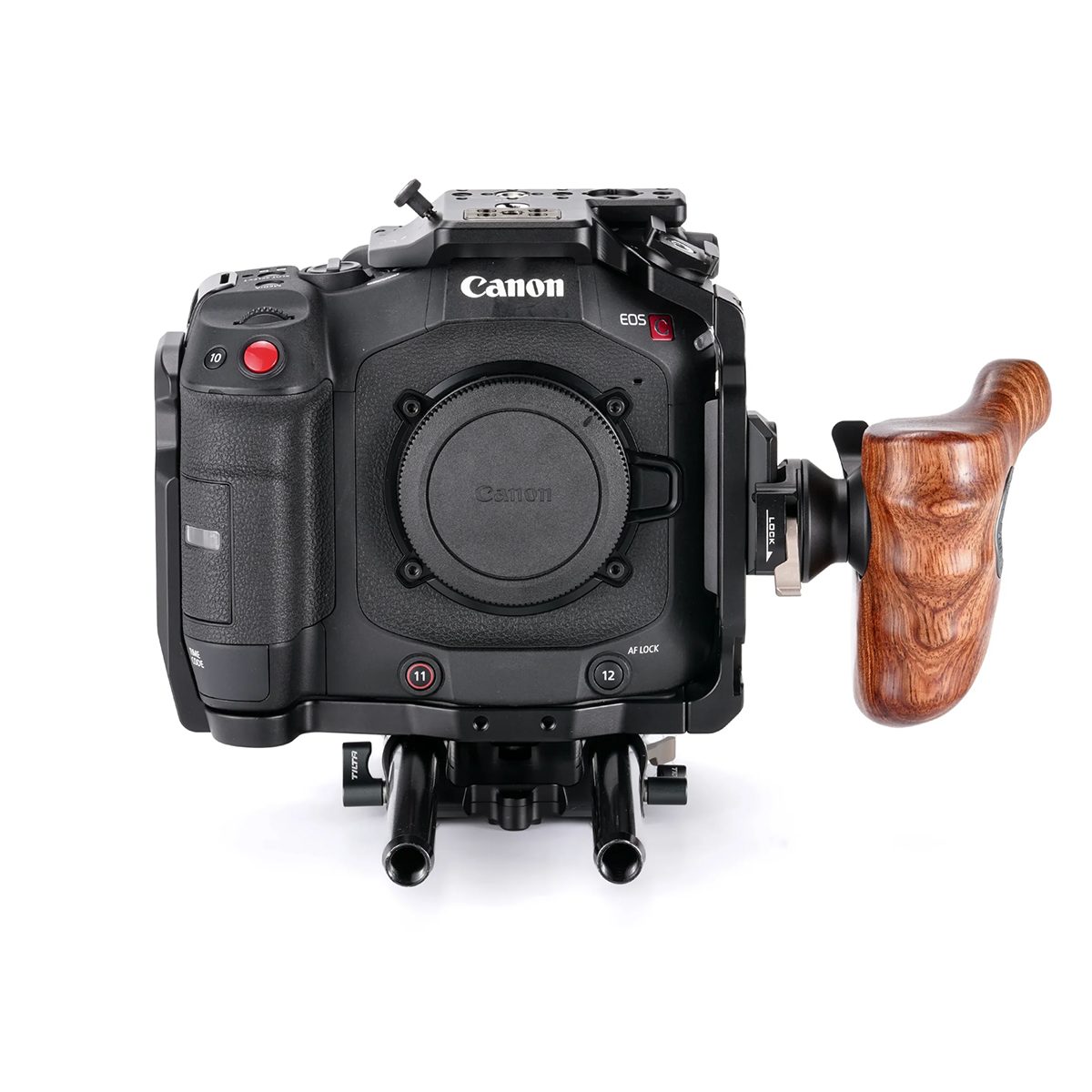

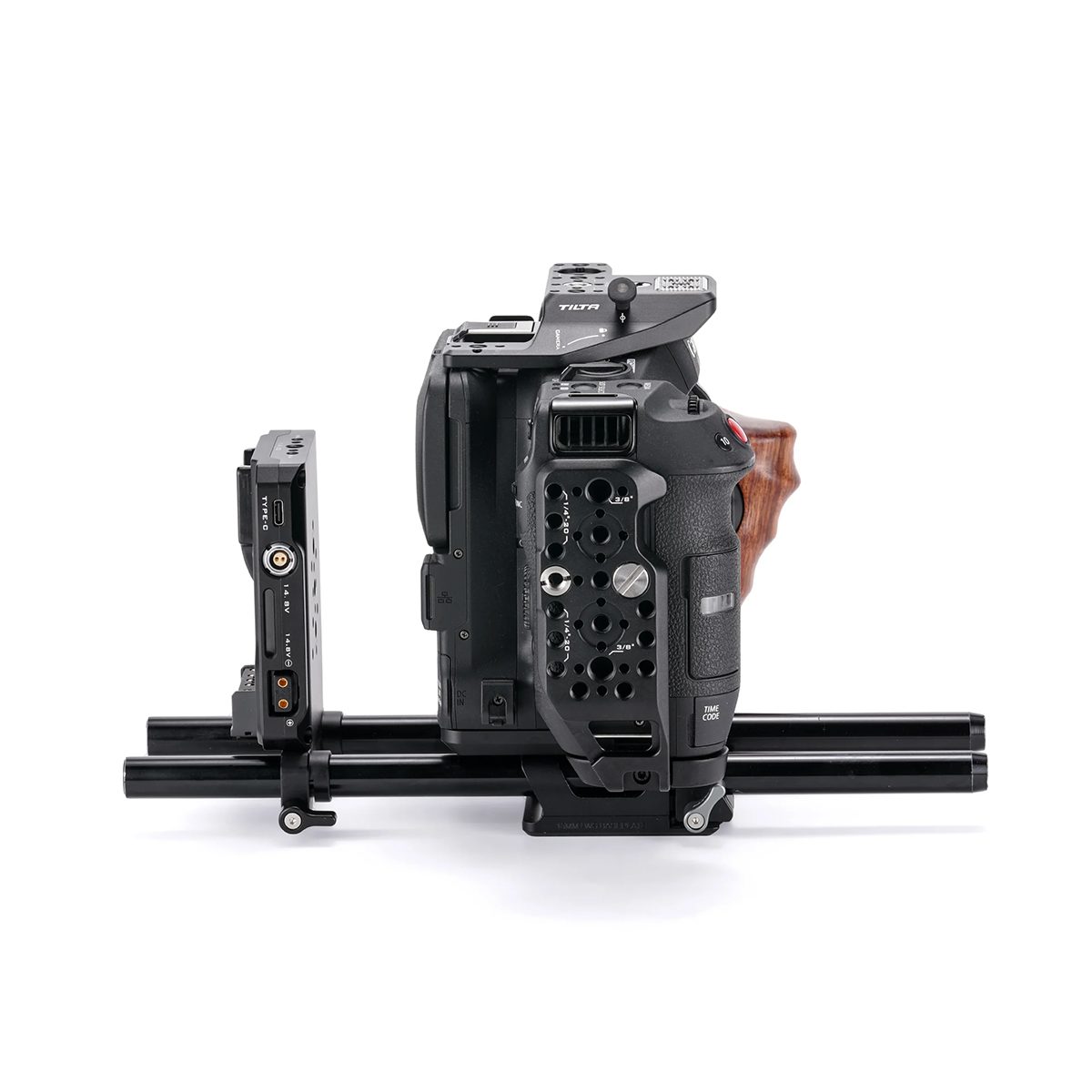

Tilta Camera Cage Pro Kit for Canon C80 (V-Mount)

A comprehensive bundle for professional Canon C80 cinema camera rig configurations with V-mount batteries, this Camera Cage Pro Kit from Tilta combines the base kit contents with a V-mount battery plate, DC cable, baseplate, a wooden side handle, a mini tool kit, and two 12″ threaded 15mm rods.

_________
Key Features
  • Modular Cage for Canon C80 Cinema Camera
  • Top Plate, Bottom Plate
  • Left- and Right-Side Plates
  • NATO Rail, 1/4″-20 and 3/8″-16 Threads
  • Cold Shoe, HDMI Cable Clamp
  • Button Extensions, Vertical Ready Design
  • V-Mount Battery Plate, DC Cable
  • Universal 15mm LWS Baseplate
  • Wooden Left-Side Handle
  • 2 x 12″ 15mm Rods, Mini Tool Kit

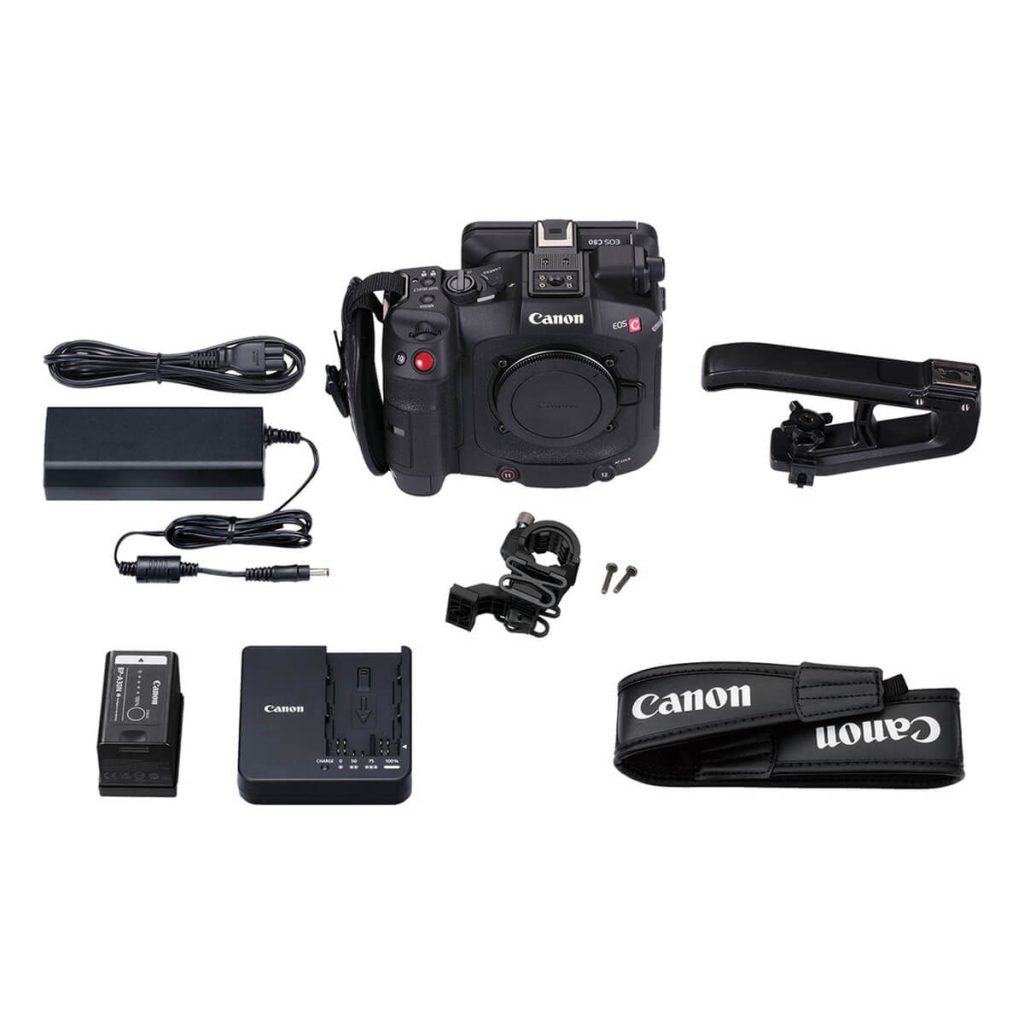

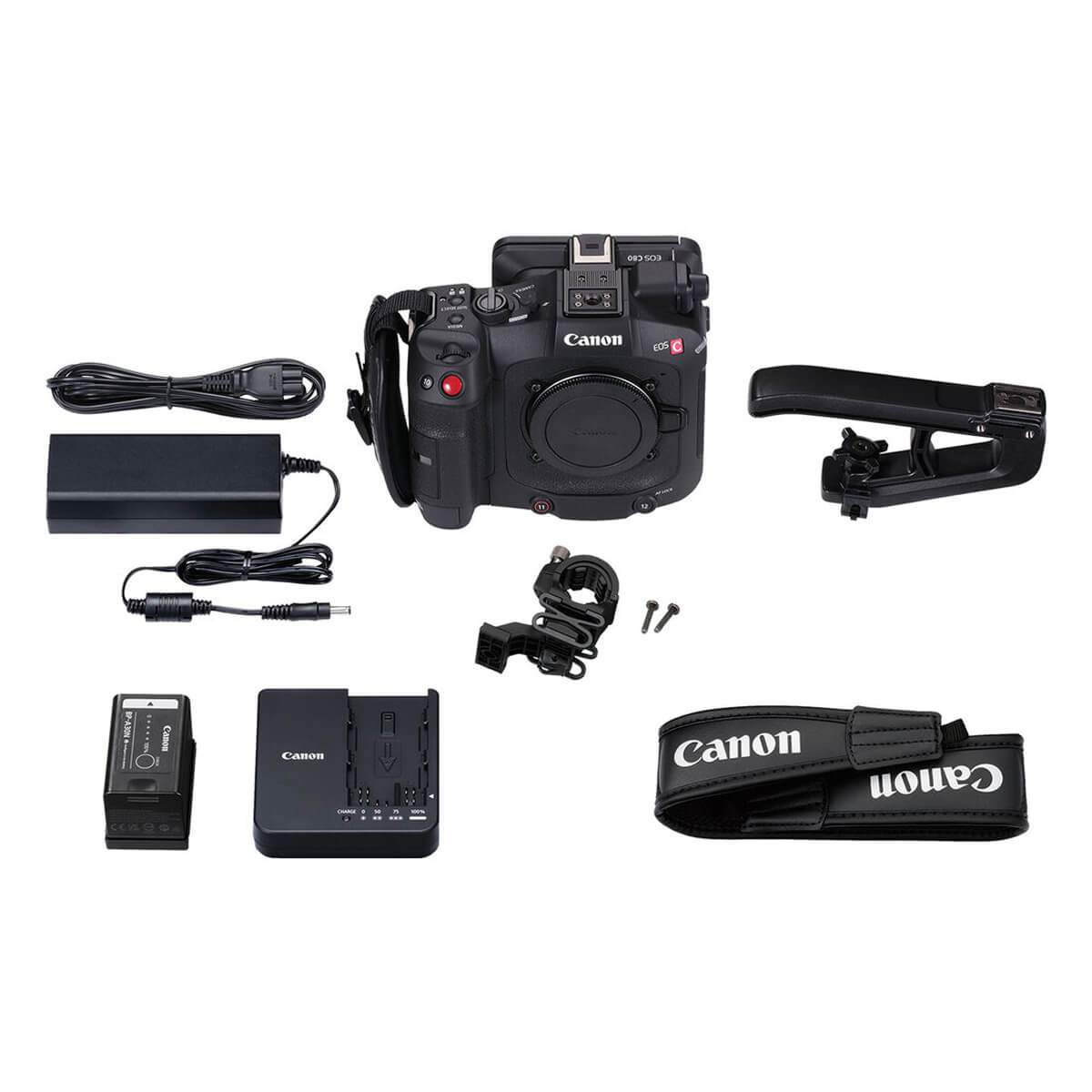

Articles included in this rental

  • Canon EOS C80 6K Full-Frame Cinema Camera (Canon RF)
  • Tilta Camera Cage Pro Kit for Canon C80 (V-Mount)

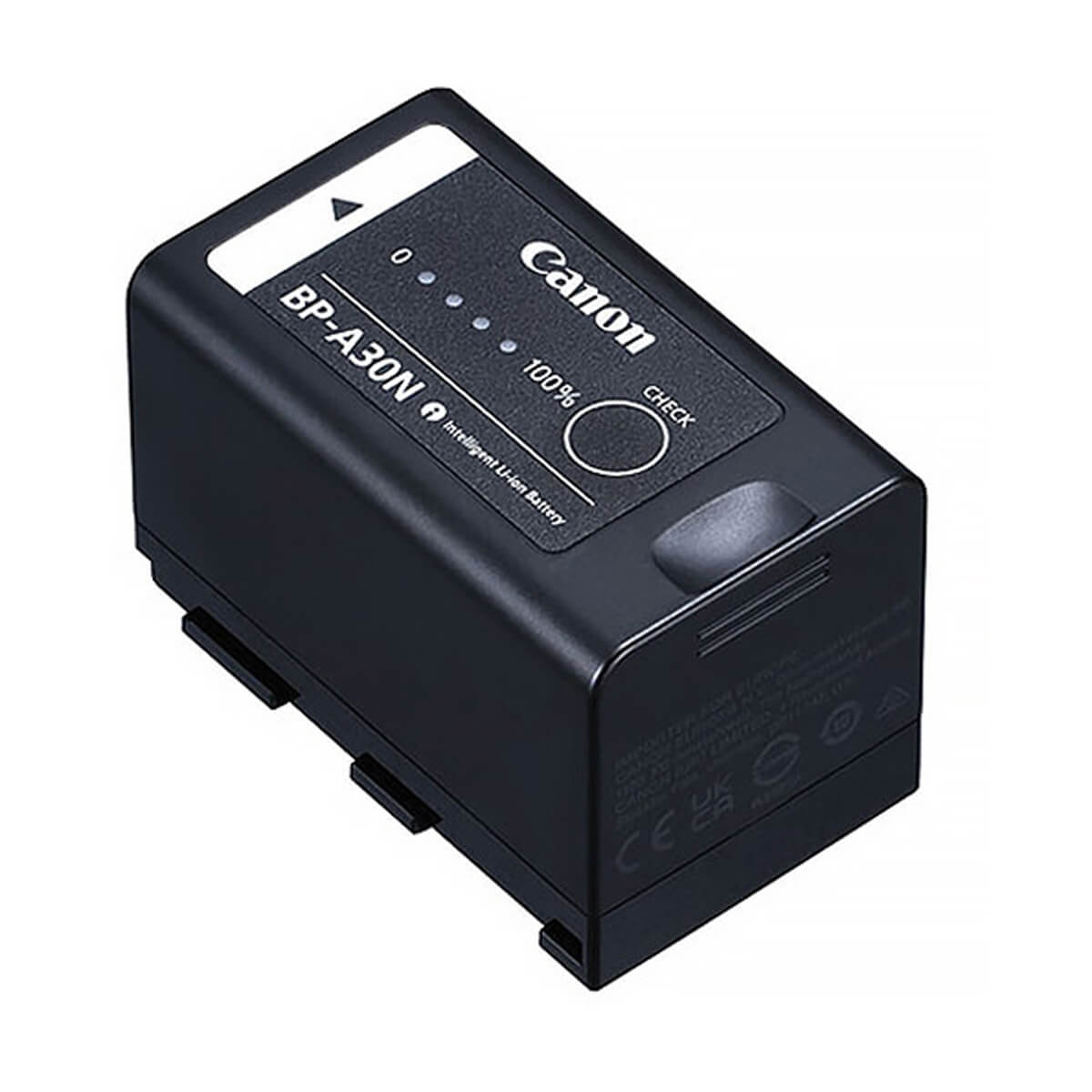

  • Canon BP-A30N Battery Pack

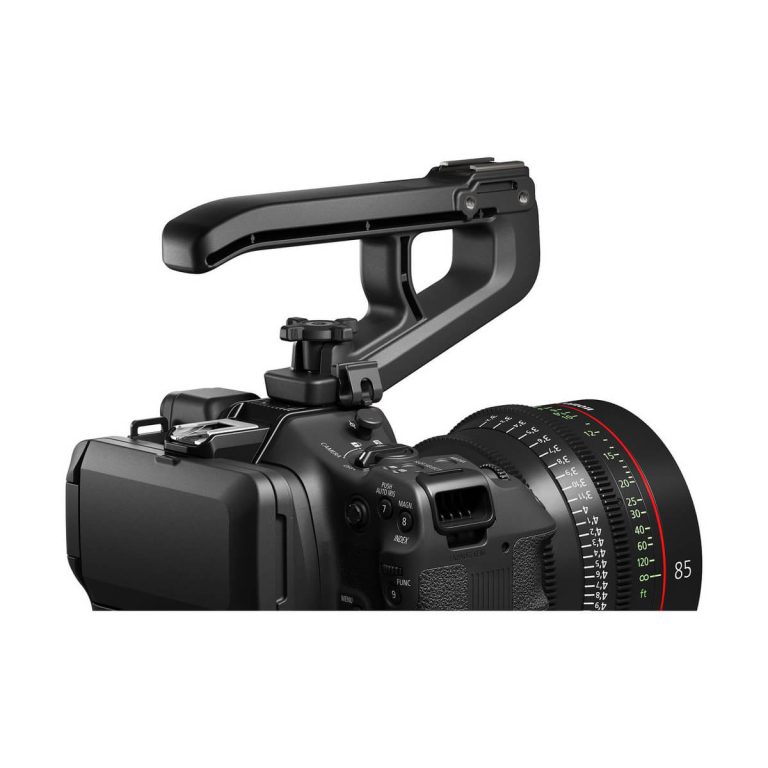

  • Handle Unit

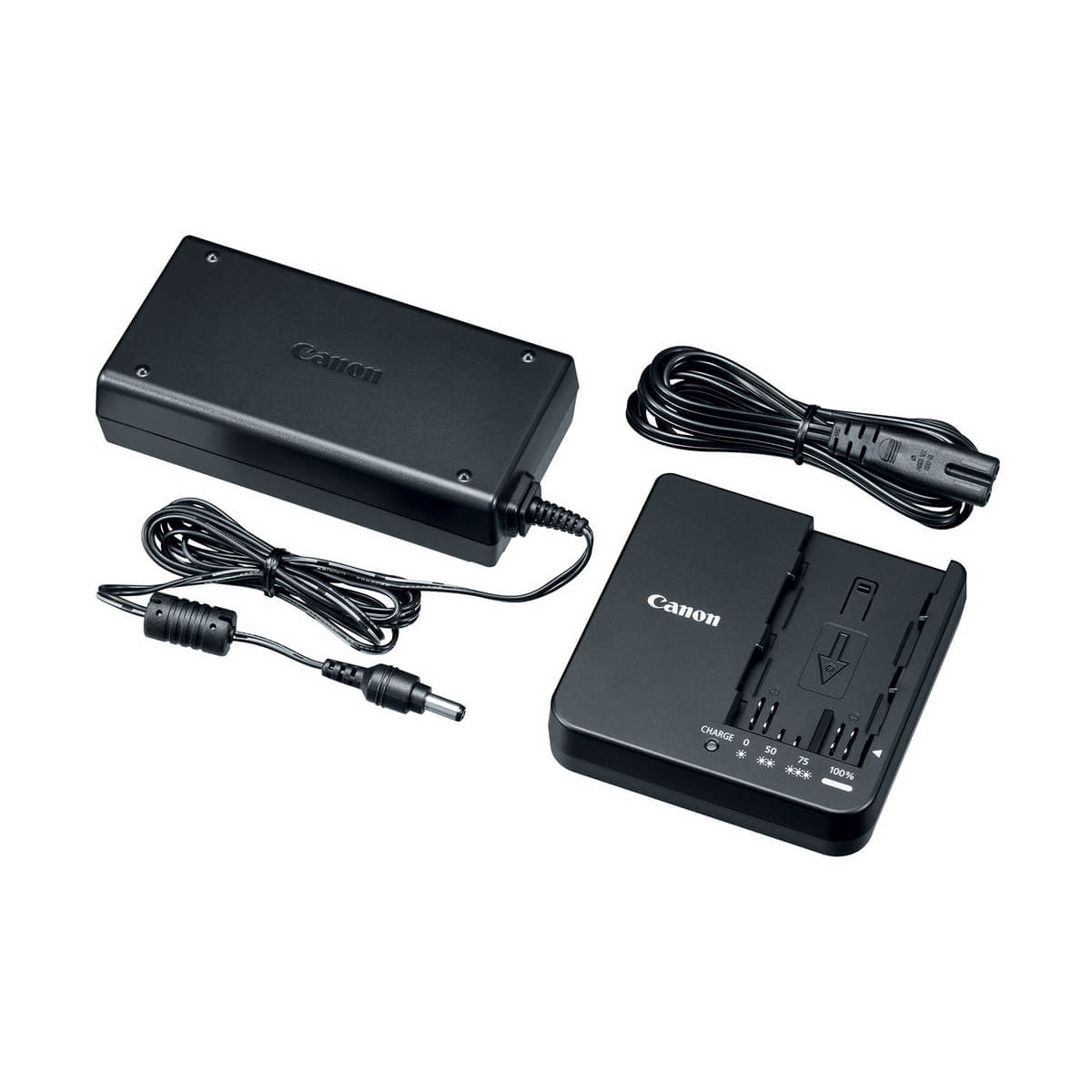

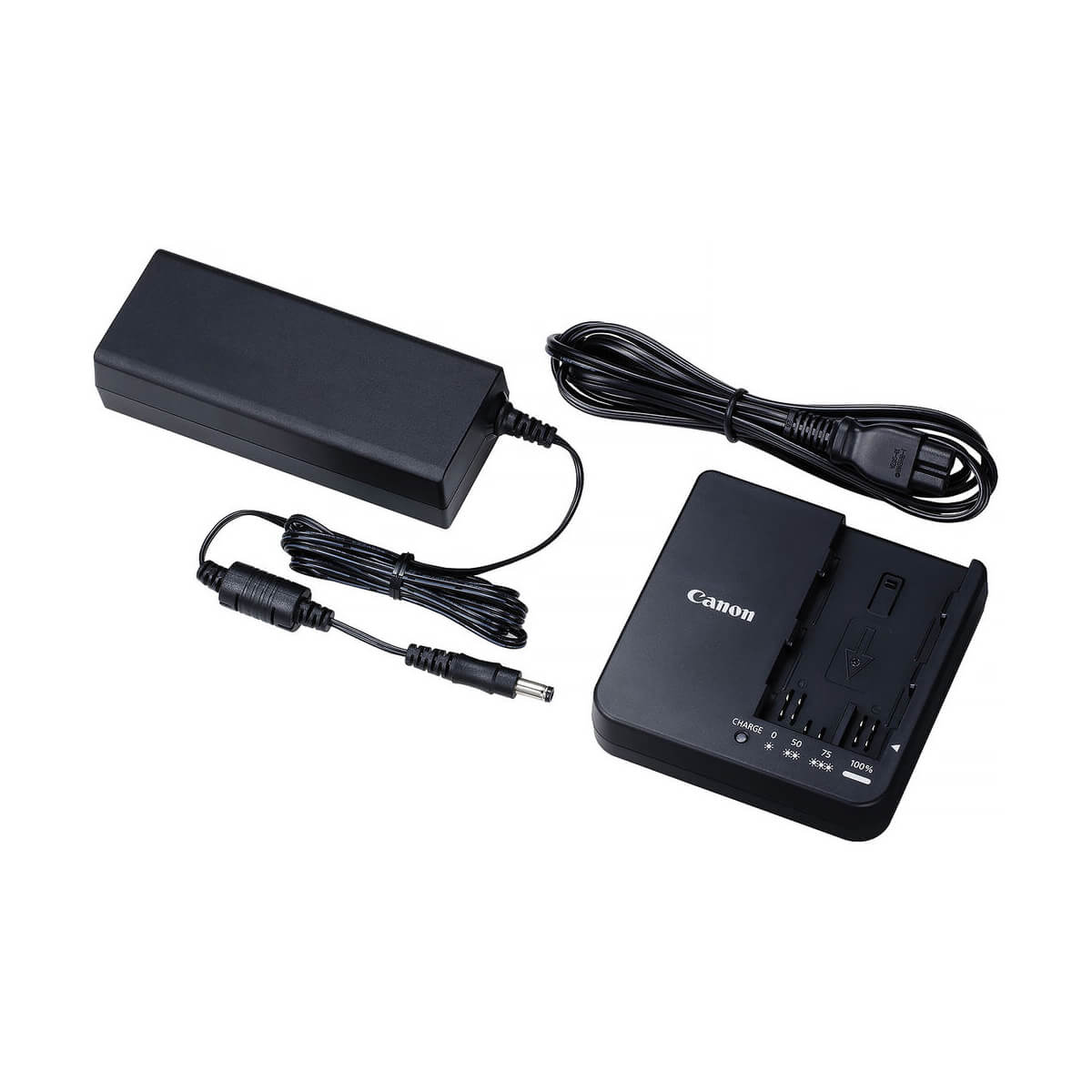

  • Canon CA-CP300B Compact Power Adapter
  • Battery Charger
  • Microphone Holder
  • SS-1200 Shoulder Strap
  • Tape Measure Hook
  • Grip Belt
  • 1x SDXC UHS-II V90 de 256Gb Card
  • 1x SDXC UHS-II V90 de 128Gb Card
  • 1x Tripod – optional (50% off) – please consult our tripod list

Rent this item

The selected dates should refer to the dates when the equipment is used, excluding the picking and returning dates. Special conditions for long term rentals. Contact us

Related Products

Additional Information

6K Full-Frame Sensor
The 6K full-frame CMOS sensor at the heart of the C80 camera enables it to offer exceptionally low noise, increased sensitivity efficiency, and better 4K imagery via 6K oversampling. All this is possible thanks to the improved light capture technology of the back-illuminated, stacked CMOS sensor.
Multiple Recording Formats
  • The C80’s multiple recording formats include up to full-frame 6K30 Canon Cinema RAW Light LT and cropped S35 up to 4K30 in RAW ST and 4K60 in RAW LT.
  • Oversampled 4K 120p or 2K 180p with maximized detail is available, all with 4:2:2 10-bit color.
  • Slow and fast motion can be captured at rates up to UHD 4K120 in HEVC and AVC codecs.
  • Make your editing process easier using XF-AVC S and XF-HEVC S codecs, featuring an easier naming system and folder structure, as well as metadata preservation, all within the established MP4 format.
RF Lens Mount
  • A built-in RF lens mount lends the EOS C80 compatibility with Canon’s line of fast, reliable RF-mount lenses with advanced coatings and image stabilization.
  • With a short flange distance, the RF mount helps to noticeably reduce the camera body’s depth, resulting in a more compact design.

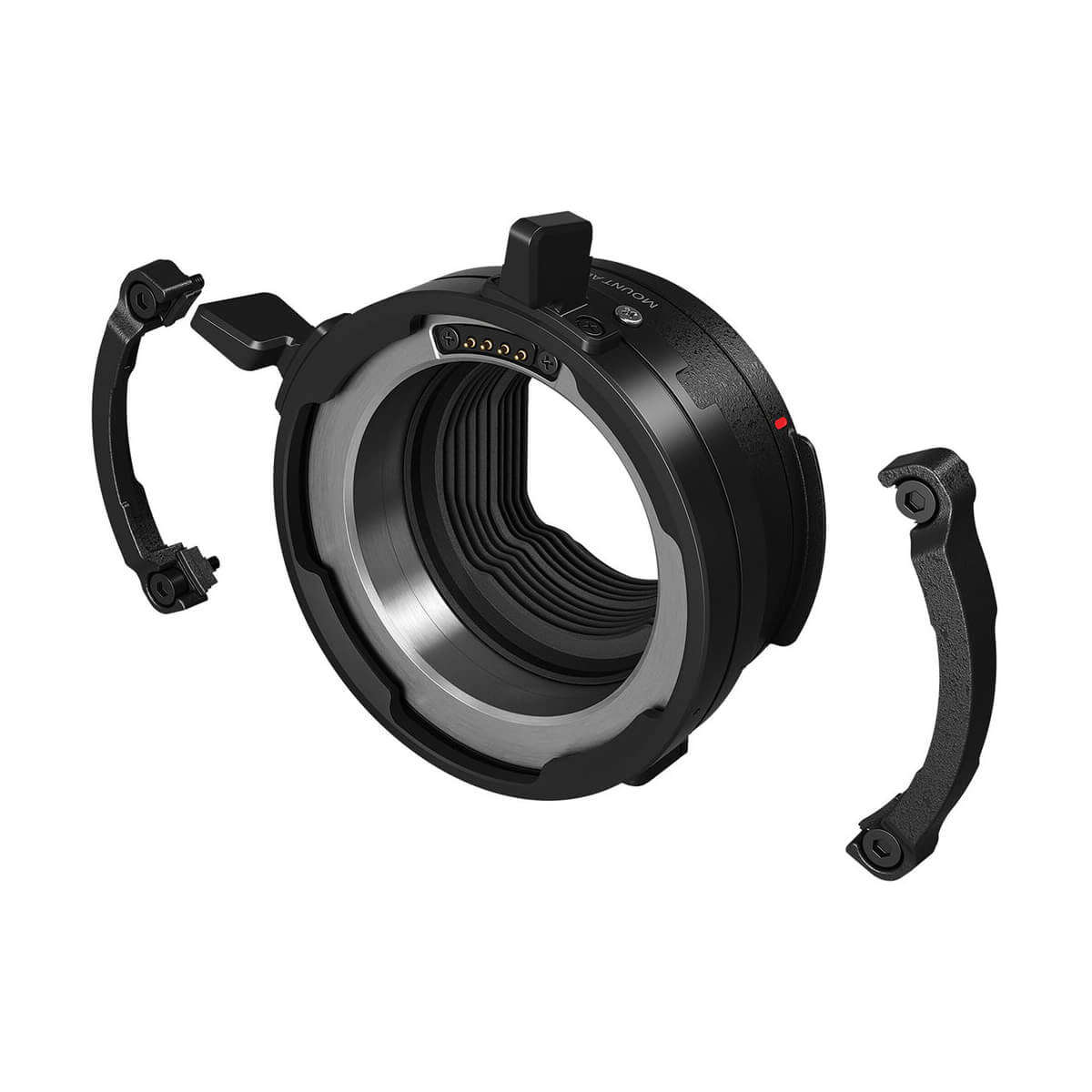

Optional PL-RF Adapter
  • A new PL-RF lens mount adapter enables you to access a wide variety of ARRI PL-mount cine-style lenses.
  • This adapter features Cooke/i metadata compatibility and locking plates for a secure fit.
Multiple Interfaces Including 12G-SDI
  • Video outputs include full-size HDMI and 12G-SDI BNC outputs that can be used simultaneously for feeding an onboard monitor, video transmitter, or EVF.
  • Use the USB-C port for UVC video output or to connect to a smartphone or the Canon GP-E2 GPS receiver.
  • A BNC connector enables users to input and output timecode, making syncing on multicamera shoots easier.
  • Note that the BNC port can output either SDI video or timecode but not both simultaneously.
Dual-Pixel CMOS Autofocus
  • Improved Dual-Pixel CMOS AF Technology uses each pixel on approximately 100% of the CMOS sensor for focus detection and image information.
  • The back-illuminated stacked sensor’s excellent light capture widens the sensor area, which can be used for AF.
  • The EOS C80 also offers the EOS iTR AF X autofocus function featuring an algorithm developed using deep-learning technology to detect the human form.
Mini-XLR Audio Inputs
  • Two mini-XLR inputs with phantom power and manual control dials provide professional audio recording options.
  • The EOS C80 supports 4-channel audio using dual mini-XLR ports, an internal stereo mic, and a 3.5mm mic input.

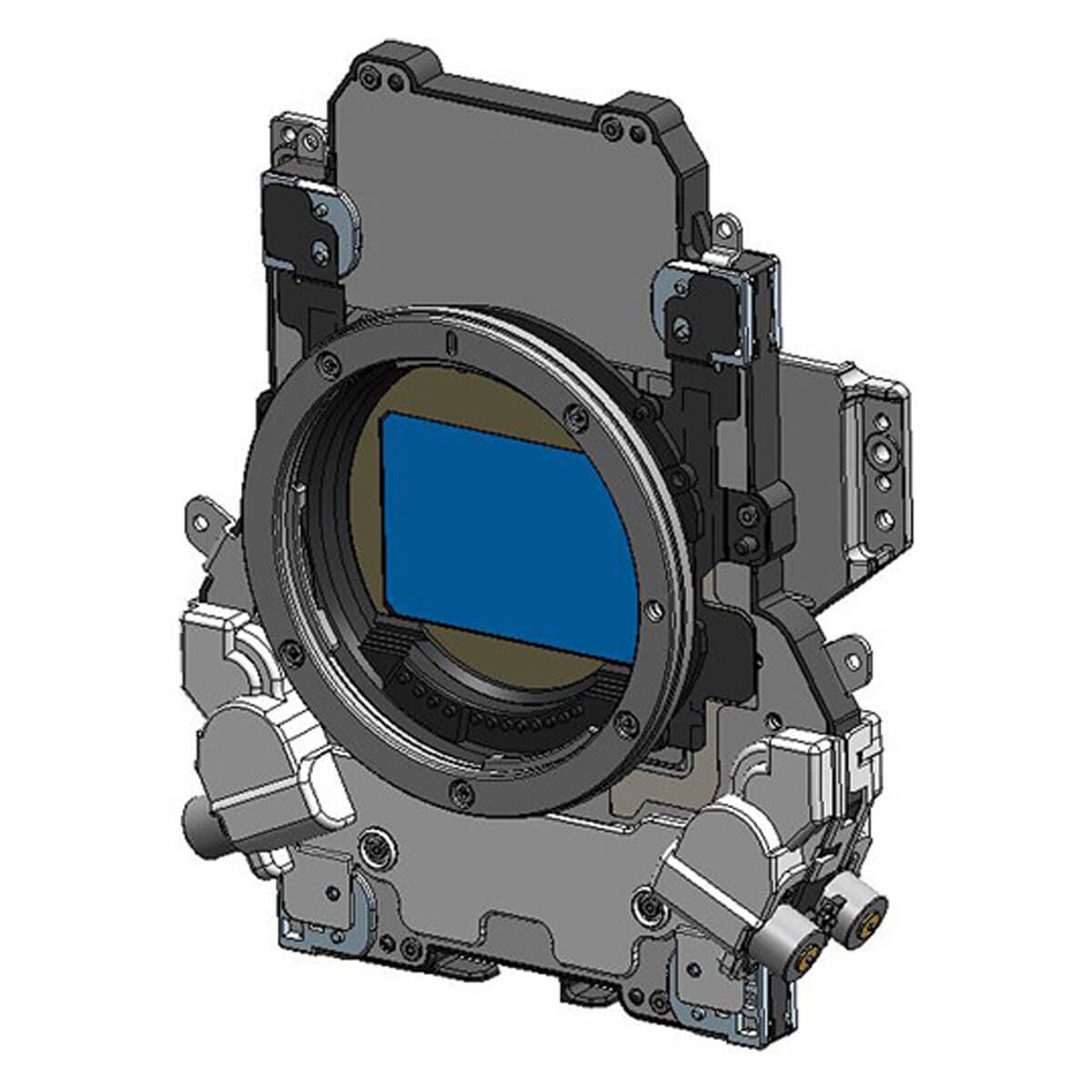

Built-In ND Filters
  • Designed for the EOS C80 RF mount’s short flange distance, a thin motorized ND filter unit enables users to quickly select up to 10 stops of neutral density.
  • ND button controls on the right side of the camera enable operators to quickly adjust exposure while maintaining their shot’s depth of field.
Log2/3 and 3D LUT Support
For greater post-production flexibility, the C80 offers Canon’s Log 2 and Log 3 gamma modes, which provide an expanded dynamic range with excellent tonal reproduction for highlights and in low-light areas of your images. The EOS C80 also supports 3D LUTs, so you can get the most accurate color reproduction on both the LCD and your external viewing monitors.

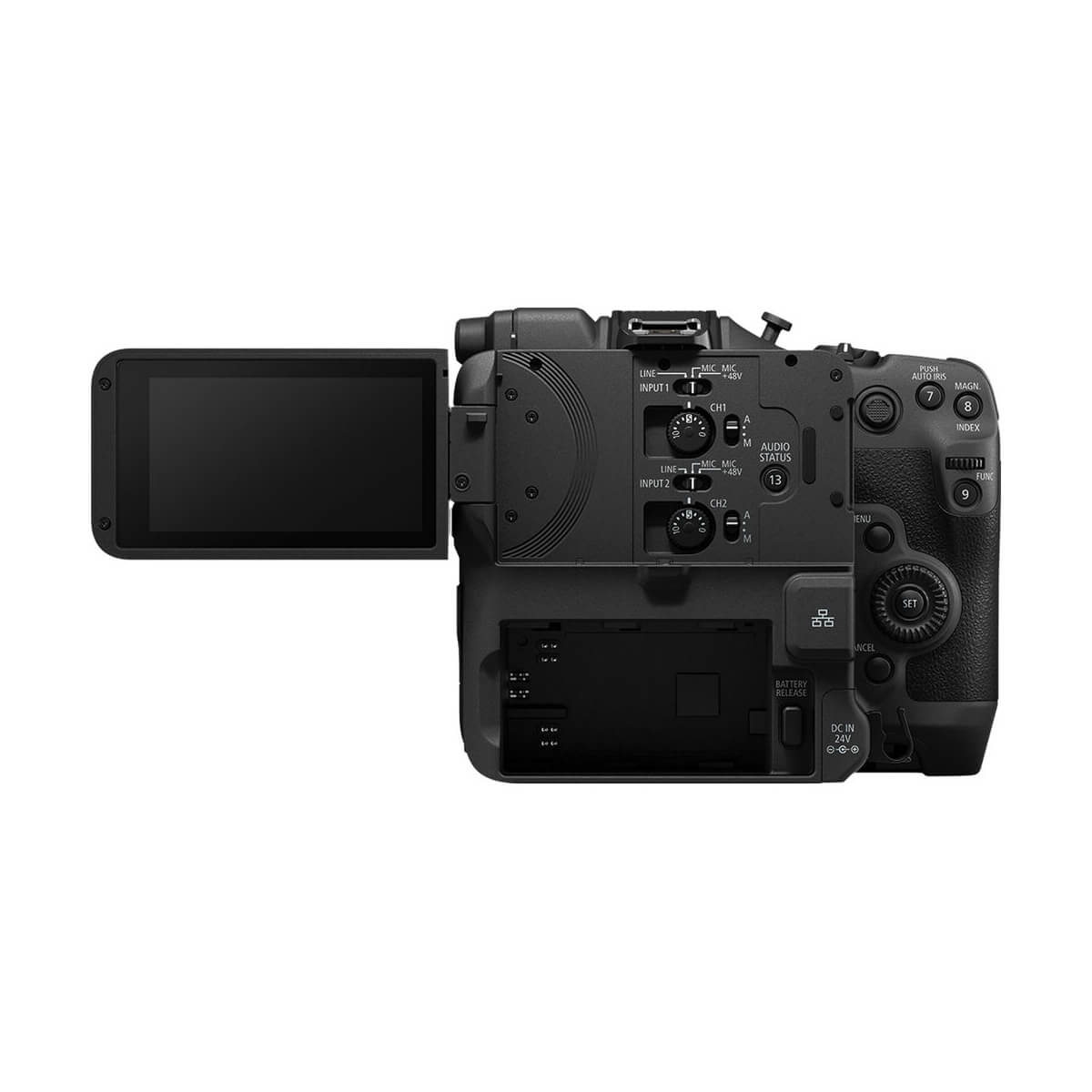

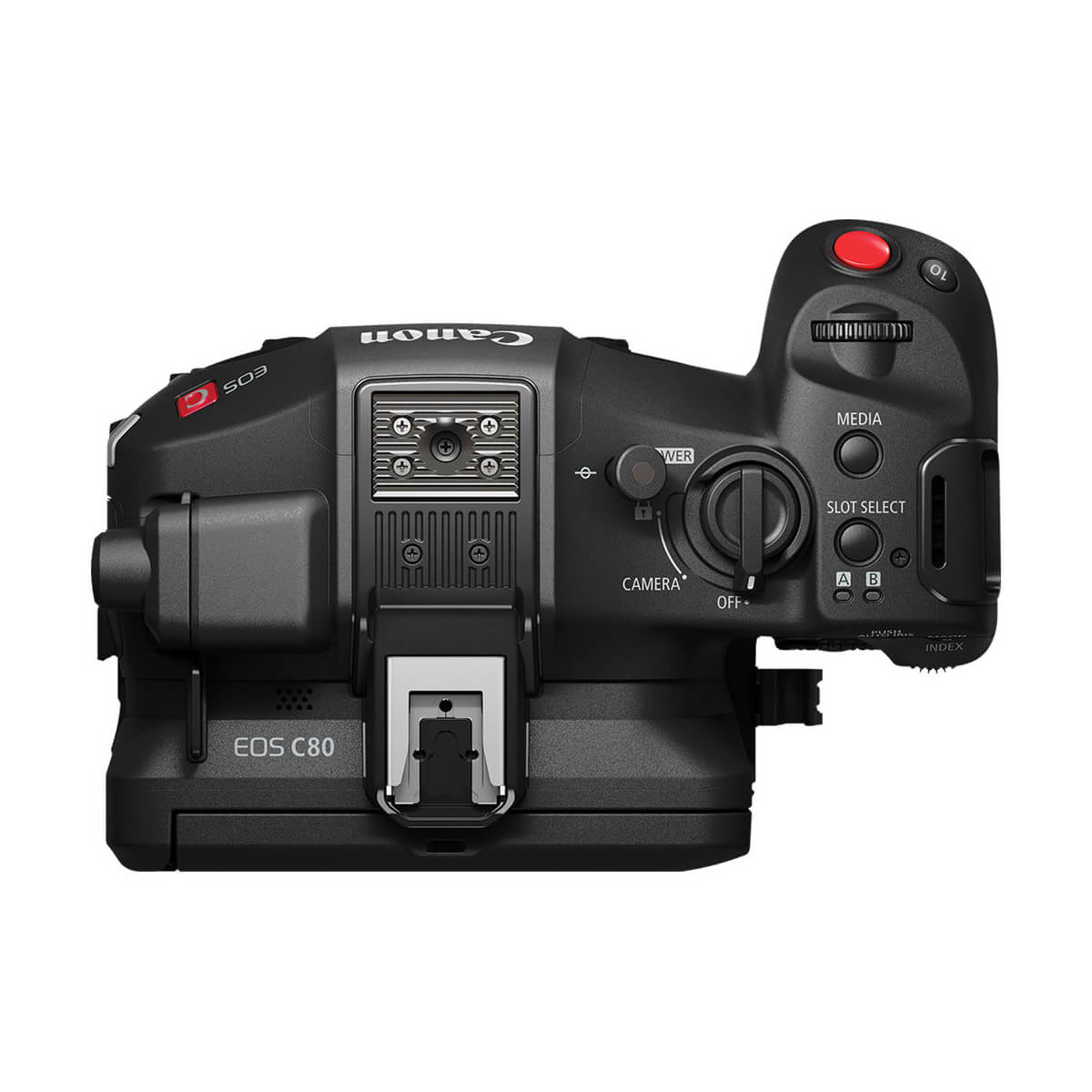

Compact Design with Tilting LCD

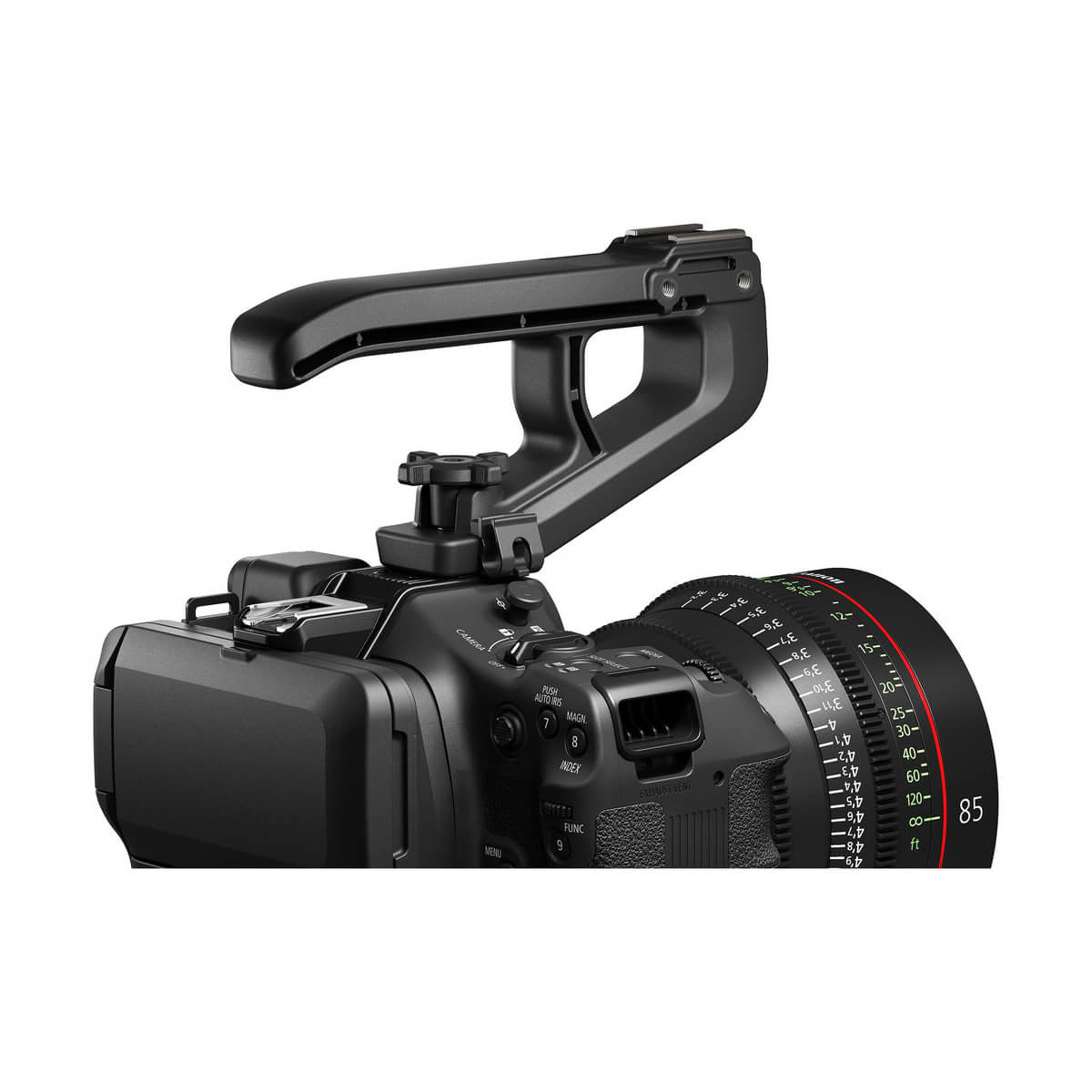

  • The compact EOS C80 features a lightweight design with a built-in ergonomic grip and a joystick control.
  • It has a Multi-Accessory hot shoe on top and comes with a detachable handle and a mic holder.
  • The LCD screen features a reinforced hinge and built-in controls like focus peaking, waveforms, and more.

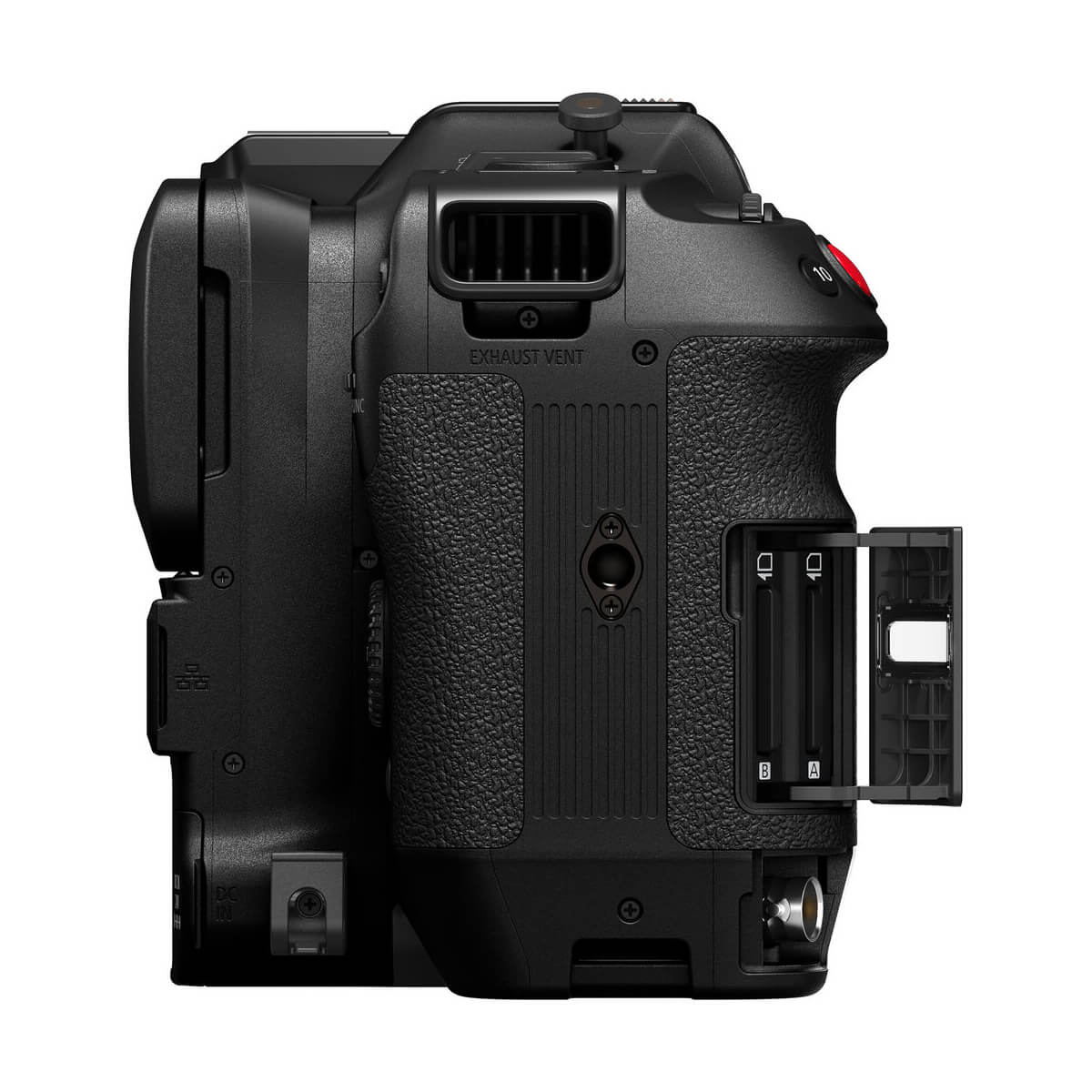

Dual SD Card Slots / Multiple Recording Options
Dual SD card slots on the EOS C80 offer simultaneous, relay, and proxy video recording. The EOS C80 can also capture JPEG still photos.
Ethernet and Wi-Fi Control
  • Use the Ethernet port and built-in Wi-Fi with an optional Canon RC-IP1000 or RC-IP100 unit to access the XC protocol-base remote control.
  • Compatibility with the Canon Multicamera Control app for iPhone provides monitoring and start/stop, focus, iris, zoom, ND filter, ISO, shutter, white balance, custom picture control, and more.

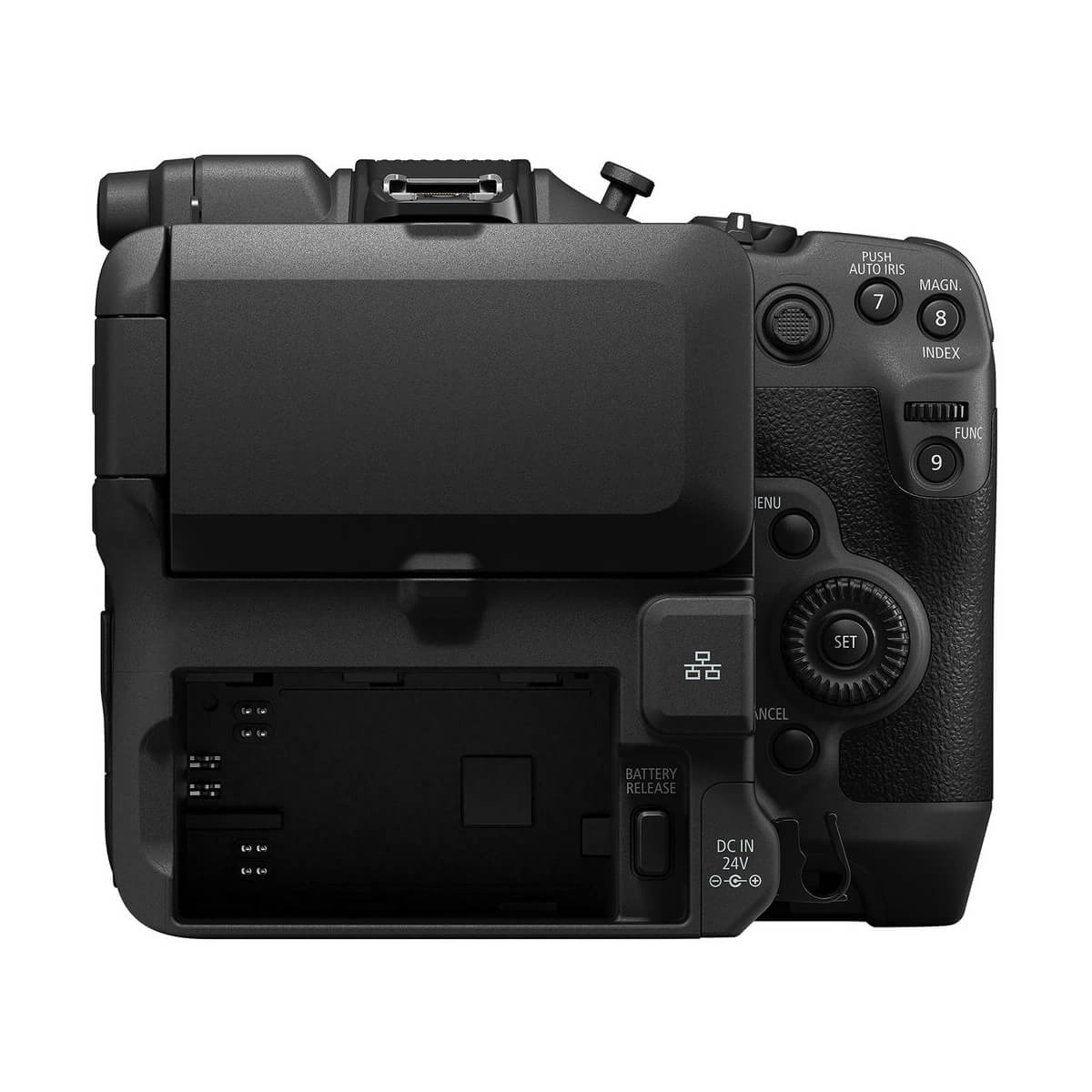

BP-AN Series Battery
  • Use the included BP-A30N battery, a BP-A60N battery, or a 24 VDC adapter to power the C80. Older BP-A batteries can also be used but will not power the Multi-Accessory hot shoe.
  • Support your C80 with a third-party cage to add a V-mount or Gold mount battery plate to enable longer runtimes.
Lens Mount
Canon RF
Sensor Resolution
Actual: 26.67 Megapixel (6202 x 4300)
Effective: 19.05 Megapixel (6008 x 3170)
Image Sensor
Full-Frame BSI Stacked CMOS
Image Stabilization
Digital, 5-Axis
ISO Sensitivity Range
100 to 102,400
Internal Recording Modes
Cinema RAW Light 12-Bit
UHD 6K (6000 x 3164) at 23.98/24.00/25/29.97 fps [553 to 639 Mb/s]
4368 x 2304 at 23.98/24.00/25/29.97/50/59.94 fps [293 to 678 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 59.94/60.00 fps [600 Mb/s]
3840 x 2160 at 50/60.00 fps [500 Mb/s]
2048 x 2160 at 59.94/120 fps [300 Mb/s]
1920 x 1080 at 50/120 fps [250 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [250 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [150 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [120 to 300 Mb/s]
XF-AVC S Long GOP 4:2:0 8-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
XF-HEVC S Intra 4:2:0 8-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [6 Mb/s]
XF-HEVC S Long GOP 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [225 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [135 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/59.94/180 fps [35 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
XF-HEVC S Long GOP 4:2:0 8-Bit
1280 x 720 at 23.98/24.00/25/50/59.94 fps [6 Mb/s]
External Recording Modes
SDI/BNC / HDMI / USB
4096 x 2160
Media/Memory Card Slot
Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC
Video I/O
1x BNC (12G-SDI) Output
1x HDMI (Unspecified Signal) Output
Mobile App Compatible
Yes: iOS Only
App Name: Remote Camera Control App
Functionality: Adjust Settings, Remote Control, View Live Feed
Battery Type
Canon BP-AN Series
Imaging
Lens Mount
Canon RF
Lens Communication
Yes, Cooke /i
Sensor Resolution
Actual: 26.67 Megapixel (6202 x 4300)
Effective: 19.05 Megapixel (6008 x 3170)
Image Sensor
Full-Frame BSI Stacked CMOS
Image Stabilization
Digital, 5-Axis
Built-In ND Filter
Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
Internal Filter Holder
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/2000 to 1 Second
ISO Sensitivity Range
100 to 102,400
Shutter Angle
11.25 to 360°
Advertised Dynamic Range
16 Stops
White Balance
Range: 2000 to 15,000K
Presets: AWB, Daylight, Set A, Set B, Tungsten
Video Capture
Internal Recording Modes
Cinema RAW Light 12-Bit
UHD 6K (6000 x 3164) at 23.98/24.00/25/29.97 fps [553 to 639 Mb/s]
4368 x 2304 at 23.98/24.00/25/29.97/50/59.94 fps [293 to 678 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 59.94/60.00 fps [600 Mb/s]
3840 x 2160 at 50/60.00 fps [500 Mb/s]
2048 x 2160 at 59.94/120 fps [300 Mb/s]
1920 x 1080 at 50/120 fps [250 Mb/s]
XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [250 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [150 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [120 to 300 Mb/s]
XF-AVC S Long GOP 4:2:0 8-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
XF-HEVC S Intra 4:2:0 8-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [6 Mb/s]
XF-HEVC S Long GOP 4:2:2 10-Bit
4096 x 2160 at 50/59.94/120 fps [225 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [135 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps [50 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
4096 x 2160 at 50/59.94/120 fps [150 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97/120 fps [100 Mb/s]
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/59.94/180 fps [35 Mb/s]
XF-HEVC S Long GOP 4:2:0 10-Bit
2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps [9 to 16 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [9 to 16 Mb/s]
XF-HEVC S Long GOP 4:2:0 8-Bit
1280 x 720 at 23.98/24.00/25/50/59.94 fps [6 Mb/s]
External Recording Modes
SDI/BNC / HDMI / USB
4096 x 2160
Recording Sensor Crop
Crops to Output Resolution When Using Super35 Mode
Fast-/Slow-Motion Support
Yes
Gamma Curve
Canon Log 2, Canon Log 3, HDR-HLG, Rec709, Rec2020
Built-In Microphone
Stereo
Audio Recording
Cinema RAW Light: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC S, XF-HEVC S: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC S, XF-HEVC S: 2-Channel 16-Bit 48 kHz AAC Audio
IP Streaming
H.264, MPEG2, RTP, RTSP, SRT, UDP
1920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)
Interface
Media/Memory Card Slot
Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC
Video I/O
1x BNC (12G-SDI) Output
1x HDMI (Unspecified Signal) Output
Audio I/O
2x Mini XLR Input
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output
Power I/O
1x Barrel (23.7 to 25VDC) Input
Other I/O
1x RJ45 (XC) Control
1x USB-C Monitor
1x BNC (Timecode) (Shared with Video Output)
1x 2.5 mm Sub-Mini (LANC) Control
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac)
Mobile App Compatible
Yes: iOS Only
App Name: Remote Camera Control App
Functionality: Adjust Settings, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)
No
Monitor
Display Type
Primary Monitor: Included External 3.5″ Touchscreen LCD
Resolution
Primary Monitor: 1280 x 720
Focus
Focus Mode
Continuous-Servo AF, Focus Lock AF Area Mode, Manual Focus, One-Shot AF
Power
Battery Type
Canon BP-AN Series
Power Consumption
≤19.6 W
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C up to 85% Humidity
Storage Conditions
23 to 113°F / -5 to 45°C up to 60% Humidity
General
Shoe Mount
1x Intelligent Hot Shoe
Tripod Mounting Thread
1x 3/8″-16 Female
2x 1/4″-20 Female
Accessory Mounting Thread
No
Dimensions (W x H x D)
6.3 x 5.4 x 4.6″ / 160 x 138 x 116 mm
10.9 x 6.8 x 6.3″ / 276 x 173 x 160 mm (With Handle, Included Battery, Mic Holder)
Weight
2.87 lb / 1.30 kg (Body Only)
3.406 lb / 1.545 kg (With Battery, Handle)
Tilta Camera Cage for Canon C80 (Base Kit)

A modular cage system for using the Canon C80 cinema camera in different configurations, this Camera CageBase Kit from Tilta is made up of top and bottom plates, left and right side arm plates, and multiple mount options via multiple 1/4″-20 and 3/8″-16 threads and the included NATO rail and cold shoe. In addition to clearance for ports, power and settings buttons, and heat dissipation vents, this C80 cage features one side plate with button extensions for tactile feedback with the original controls, while the other side plate offers easy use in the vertical orientation with multiple mount points. The top plate also allows unobstructed access to the native top handle mounting point.

Tilta Universal 15mm LWS Baseplate (Black)

The black aluminum Universal 15mm LWS Baseplate from Tilta can be adapted to accommodate the unique sensor height of various camera bodies in relation to the rod position. It includes two 1/4″-20 camera screws and can be modified using Tilta Type I, II, or III LWS Baseplate Adapters, which feature Arca-type receivers and are compatible with many Tilta camera cages and select DJI Ronin gimbals. This plate is compatible with Tilta standard dovetail plates and has both 1/4″-20 and 3/8″-16 threads for attaching a tripod quick release plate.

Tilta Multifunctional Mini Tool Kit (Black)

This Multifunctional Mini Tool Kit from Tilta includes six universal tools, including Allen keys and screwdriver heads for equipment assembly, disassembly, and everyday use. The tools are made of stainless steel for durability and rust resistance. The Multifunctional Mini Tool is constructed with an aluminum alloy frame with a stylish black finish. The frame features one 3/8″-16 threaded mount and two 1/4″-20 threaded mounts for added versatility. It is small enough to fit in your palm or pocket and has a convenient strap loop for on-the-go use.

  • 2.5mm Allen key
  • 3mm Allen key
  • 4mm Allen key
  • 3/16″ Allen key
  • Flathead screwdriver
  • #2 Phillips screwdriver
  • T10 Torx screwdriver
  • Two 1/4″-20 threaded mount with locating points
  • One 3/8″-16 threaded mount with locating points
Tilta Mini PD V-Mount Battery Plate (Black)

Power your camera and accessories using a high-capacity V-mount battery with this black Mini PD V-Mount Battery Plate from Tilta. This universal plate features one 14.8 VDC D-Tap output, one 2-pin 14.8 VDC LEMO-type output, and one 60W USB-C PD output.

You can mount the plate onto a standard 15mm LWS rig using the included rod clamp, and it also features multiple 1/4″-20 and M4 threads to accommodate multiple mounting positions. There are strap slots on either side of the plate to attach the included safety strap and ensure the battery has a secure hold. The battery plate assembly is made of durable aluminum and stainless steel.

Tilta D-Tap to 5.5 x 2.5mm Barrel DC Male Cable (25″)

Power an accessory or camera with a 2.5mm barrel DC power input using a D-Tap power source with this D-Tap to 5.5 x 2.5mm Barrel DC Male Cable from Tilta. The 25″ cable features a D-Tap connector at one end and a 5.5 x 2.5mm barrel connector on the other end. It is also compatible with the Tilta Universal Battery Plate.

Support Type
Cage
Grip Type
No
Camera Compatibility
Canon EOS C80
Mounting
Rod Standard
15 mm LWS / 60 mm Spacing
Battery Plate Type
No
Accessory Mounting
Multiple Anti-Twist 1/4″-20 Female Thread
Multiple Anti-Twist 3/8″-16 Female Thread
Camera Mounting
1/4″-20 Male Screw
Tripod Mounting
1/4″-20 Female Thread, 3/8″-16 Female Thread
Shoe Mounting
2x Cold Shoe
Rosettes
No
Rail Mounting
1x NATO Rail
Cable Clamp
1x HDMI Clamp
Materials
Aluminum Alloy, Stainless Steel
Dimensions
6.9 x 6.2 x 3.85″ / 175.7 x 157.5 x 97.87 mm
Weight
0.9 lb / 0.4 kg
Introducing the Canon EOS C80 – Elevate Your Creativity
Tilta Camera Cage Pro Kit for Canon C80 (V-Mount)
Canon EOS C80: A C400 Sensor in a Compact Body!
Introducing the Canon EOS C80 Cinema Camera: Redefining Flexibility
Tennis Spec Ad | Canon EOS C80
Introducing EOS C80 | The ShowRunner
Moments in the Blue North: A Film by Canon Co-Lab Ambassador Sam Newton Captured on the EOS C80

Subscribe our newsletter

Rua Vieira Lusitano, 10A
1070-280 Campolide, Lisboa - Portugal
T +351 218 497 537
M +351 962 141 473
E-mail: rental@digitalazul.pt

Used equipment for sale

© Digital Azul 2020 - All Rights Reserved
