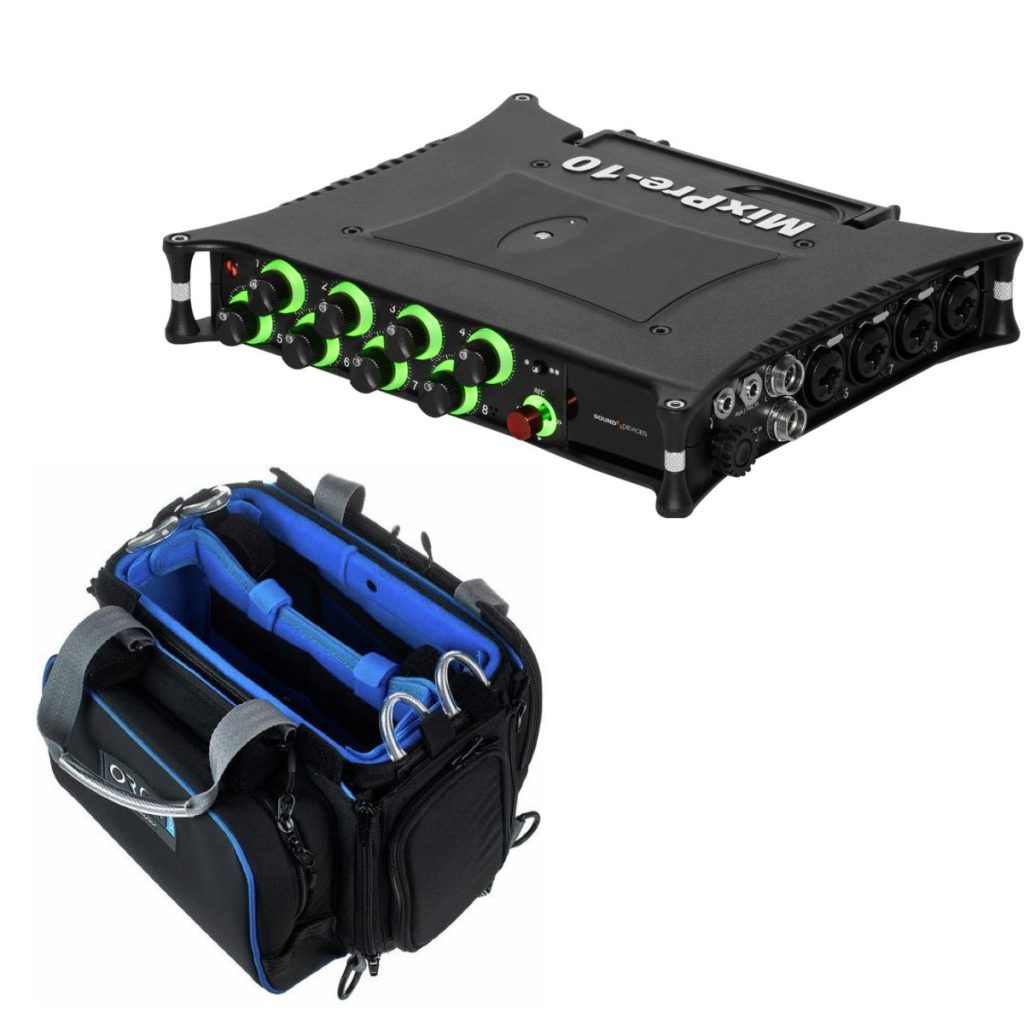

Sound Devices MixPre-10 II Field Recorder w/ ORCA OR-280 Sound Bag

Price on request /day

This Sound Devices MixPre-10 II Kit bundles together a 10-channel / 12-track multitrack 32-bit field recorder with a compatible, durable field bag for your convenience.

The MixPre-10 II is suitable for field sound mixing, videography, and VR. It lets you record up to 10 external tracks (eight channels via XLR-1/4″ combo jacks and two channels via a 3.5mm mini jack)—as well as a stereo mix—at sample rates and resolutions of up to 192 kHz / 32-bit, all while monitoring audio in headphones. If you choose to use the MixPre-10 II to stream audio, you’ll be able to achieve sample rates up to 96 kHz.

Articles included in this rental

Sound Devices MixPre-10 II 10-Channel / 12-Track Multitrack 32-Bit Field Recorder
ORCA OR-280 Sound Bag
Headphones Sennheiser HD25
Carrying Strap
Memory Card
USB-C – USB-C Cable
Sound Devices XL-WPH3 45W Power Supply

Additional Information

Overview - MixPre-10 II Field Recorder

Overview - ORCA OR-280 Sound Bag

Specs - MixPre-10 II Field Recorder

Specs - ORCA OR-280 Sound Bag

Overview - MixPre-10 II Field Recorder

Sound Devices MixPre-10 II 10-Channel / 12-Track Multitrack 32-Bit Field Recorder

The MixPre-10 II offers many upgrades over its predecessor. Chief among these features is the ability to record at 32-bit floating point to an internal SD card. The unit also functions as an audio interface capable of 32-bit floating point streaming over USB to a Mac computer. This makes it nearly impossible for you to clip (distort) audio on the way in. Whether you’re recording hot or making use of the unit’s astounding 142 dB dynamic range, you’ll only be handicapped by the quality of your microphone.

The device sports the same Kashmir preamps as the MixPre-10T with one key difference: an even lower noise floor, at 130 dBV. With line-level XLR and 3.5mm outputs, you can monitor in both headphones and on a compatible line-level device at the same time. Timecode connections are made possible via BNC, HDMI, and 3.5mm connections.

All of this is available in an eight-channel package that can be powered from wall chargers, AA batteries, or Sony L-series batteries. Whether you use the device in an advanced or basic capacity, the MixPre-10 II will suit any intimate, field-based production.

Simultaneous 12-Track Recording

Record all 10 input channels and your stereo mix at the same time in 44.1, 48, 96, or 192 kHz resolution.

Audio Interface Functionality

When connected to a Mac or Windows computer, the MixPre-10 II can serve as a 12-input / 4-output USB audio interface at up to 96 kHz for your favorite audio recording software.The unit can send a complete 32-bit float audio signal over USB when connected to a Mac computer running macOS Catalina (version 10.15 or later).

A Cornucopia of Connections

For inputs, you’ll find eight XLR-1/4″ combo jacks and a 3.5mm auxiliary input. 48V Phantom power is available. Audio output connections are handled over 3.5mm connections and XLR line-level outs. Timecode I/O is made possible via 3.5mm connections, HDMI, and BNC.

Adjust on the Fly

Adjust the limiters, change the bit-depth, shift panning, delay, and polarity in the stereo mix and filter out extraneous bass rumble with low-cut filters. Whether you record to an SD card or to your computer over USB, the MixPre-10 II can be customized to your needs.

Built-In Timecode Generator & Bluetooth Control

Thanks to the device’s timecode generator, you can even trigger recording from the camera. With built-in Bluetooth, you can control the unit over the Wingman app, available from Sound Devices. This app displays high-resolution meters, current timecode, transport buttons, and more.

Timecode Synchronization

Timecode from a camera or master TC clock can be patched into the MixPre-10 II’s HDMI Type-D jack, 3.5mm aux input, or BNC timecode input. In any case, the device automatically detects the incoming timecode frame rate and stamps the recorded files accordingly. The low-drift internal timecode generator can be set to pause when recording stops, jam-sync to a temporary timecode source, or continue in “free run” mode for up four hours after powering down.

Ambisonics Integration

Upon installation of the Ambisonics plug-in (available separately from the Sound Devices plug-in store), field recordists, game developers, and VR content creators will appreciate the support for simultaneous multiformat recording (AmbiX, FuMa, LR Stereo, and LR Binaural), real-time binaural/stereo monitoring, and A- to B-Format conversion.

Expandable Functionality

Buy the Musician Plug-In from the Sound Devices online store to add in-unit music recording to your MixPre-10 II. The Musician Plug-In adds built-in features and effects like overdub, reverb, and vocal air. Create Music Projects to lay down backing tracks and use them live or at home for writing or practicing.

Key Features at a Glance

Kashmir microphone preamps with 48V phantom power
Internal timecode generator
Sample rates up to 192 kHz
Bit depths up to 32-bit float
Adjustable Limiters
SD card recording and reading
Backup to USB drive
10 seconds of pre-roll at 48 kHz
USB control surface support
Customize with plugins
Add low cut, high pass, delay, polarity invert, and panning
Simultaneous recording, mixing, and USB audio streaming
Trigger record via timecode or HDMI timecode
Bluetooth for wireless control via Wingman app
Basic, Advanced, and Custom modes
High-fidelity headphone amplifier
Firmware 9.0: Adds a full slate mic routing matrix; will now support two instances of the optional NoiseAssist plug-in (available separately).

Overview - ORCA OR-280 Sound Bag

ORCA OR-280 Sound Bag for Sound Devices MixPre-10 II

The Orca OR-270 Sound Bag is designed to protect and carry the Sound Devices MixPre-3, 3M, 6 or 6M recorder together with the MX-L battery mount. The lightweight case provides access from all sides and includes back and font pockets for holding small accessories, batteries, and wireless receivers. The Orca OR-270 includes a detachable shoulder strap.

Designed for the Sound Devices MixPre-3, 3M, 6, and 6M portable multitrack music recording mixers
Accommodates MX-L battery mount
Holds and protects while traveling and during stage or field use
Lightweight
Access from all sides
Front and back pockets
Internal straps for wireless receivers
Includes removable shoulder strap

Specs - MixPre-10 II Field Recorder

Portable Recorder

Form Factor	Field Recorder
Number of Tracks	12 (10 Inputs + Stereo Mix)
Number of Input Channels	12
Maximum Sampling Rate	192 kHz / 32-Bit
Microphone	No
Number of Microphone Inputs	8
Built-In Speaker	No
Display	1.6″ / 40.64 mm Color LCD Touchscreen
Memory Card Support	SD, SDHC, SDXC (Up to 512 GB)
Internal Storage	No
Special Features	Remote Control Capable

Recording

Audio File Formats	WAV
Sample Rates	WAV: 44.1 / 47.952 / 48 / 48.048 / 96 / 192 kHz
Bit Depth	16 / 24 / 32-Bit (A/D Conversion)
Signal Processing & FX	Delay, Limiter, Low-Cut Filter
Timecode Support	Yes
Frame Rates Supported	23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF
Clock Accuracy	±2 ppm / 0.5 Frame per 24 Hrs (Timecode)
Included Software	No

Connectivity

Analog I/O	8x Combo XLR-1/4″ 3-Pin Balanced Line/Mic Input 2x TA3/Mini-XLR 3-Pin Balanced Line Output 1x 1/8″ / 3.5 mm TRS Unbalanced Aux/Mic Input 1x 1/8″ / 3.5 mm TRS Unbalanced Aux/Headphone Output
Digital I/O	1x 1/8″ / 3.5 mm SMPTE Timecode Input 1x 1/8″ / 3.5 mm SMPTE Timecode Output 1x Micro-HDMI SMPTE Timecode Input 1x BNC SMPTE Timecode/Word Clock Input 1x BNC SMPTE Timecode/Word Clock Output
Phantom Power	+48 V, Selectable On/Off (Selectable on Individual Inputs)
Phantom Power Current	10 mA per Channel
Plug-In Power	Yes: 3 V
USB	1x USB-C 1x USB-A (Control, Text Entry, Thumb Drive)
Audio Interface Capability	Multi-Track
Wireless	Bluetooth 4.0
Mobile App Compatible	Yes: Android & iOS App Name: Wingman Functionality: Remote Control

Performance

Frequency Response	WAV: 10 Hz to 80 kHz ±0.5 dB (at 192 kHz)
Gain/Trim Range	Mic Inputs: +6 dB to +76 dB Line Inputs: -20 dB to +30 dB Mic/Aux Inputs: +10 dB to +40 dB Line/Aux Inputs: -10 dB to +20 dB Fader: to +20 dB Headphone Outputs: to +20 dB
Max Input Level	Mic Inputs: +14 dBu Line Inputs: +28 dBu Mic/Aux Inputs: -10 dBu Line/Aux Inputs: +10 dBu
Max Output Level	Outputs: +7.8 dBu TA3 Outputs: +18 dBu
Headphone Output Power	300 mW per Channel
Dynamic Range	A/D Converters: 142 dB D/A Converters: 115 dB
Impedance	Mic/Line Inputs: 4 Kilohms (Active-Balanced) Mic/Aux Inputs: 100 Kilohms (Unbalanced) TA3 Outputs: 1.1 Kilohms (Balanced) Unbalanced Outputs: 500 Ohms BNC Inputs: 20 Kilohms 10 Kilohms BNC Outputs: 1 Kilohms 75 Ohms
THD+N	Inputs: 0.005%
Equivalent Input Noise (EIN)	-128 dBu (A-Weighted)

Power

Power Options	Battery, AC/DC Power Adapter
Battery Type	8x AA (Included) 2x L Series (Requires Optional Equipment, Hot-Swappable, Not Included)
AC/DC Power Adapter	12 VDC at 3.75 A (Included)
Input Power	100 to 240 VAC, 50 / 60 Hz at 1.5 A

Physical

Included Accessories	No
Mounting Options	1/4″-20 Male (Top) 1/4″-20 Female (Bottom)
Operating Conditions	-4 to 140°F / -20 to 60°C up to 90% Humidity
Storage Conditions	-40 to 185°F / -40 to 85°C
Dimensions	8.1 x 1.4 x 6.9″ / 206 x 36 x 175 mm
Weight	32.1 oz / 0.9 kg (without Batteries)
