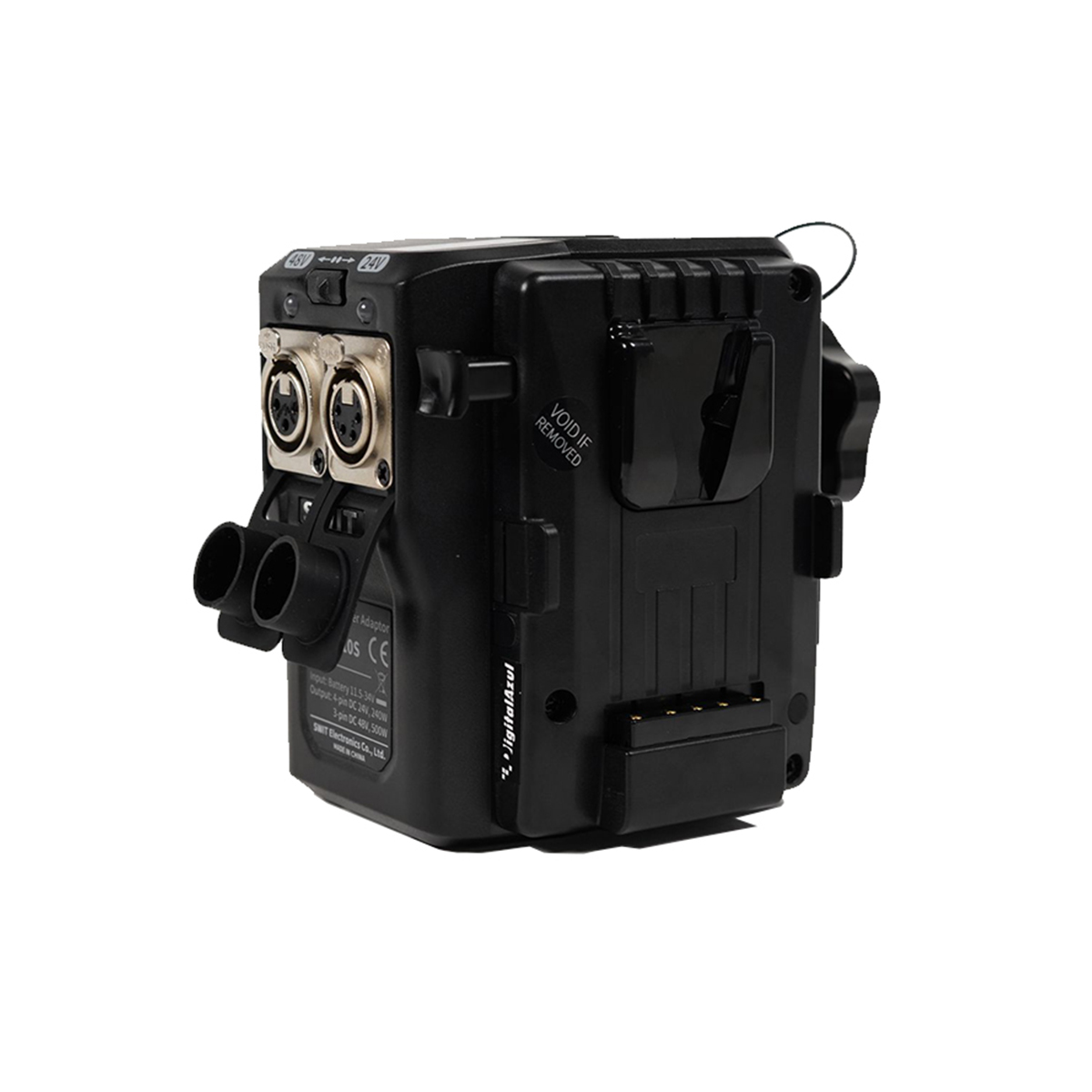

SWIT TD-R210S 24V/48V Light Stand Power Adaptor
20,00 € + IVA /day
Key Features
- Install 2x V-mount batteries
- 4pin Regulated 24V out, Max 240W
- 3pin Regulated 48V out, Max 500W
- 48V 500W by SWIT PB-H or HB- series batteries
- For Skypanel S60/S120 100% output

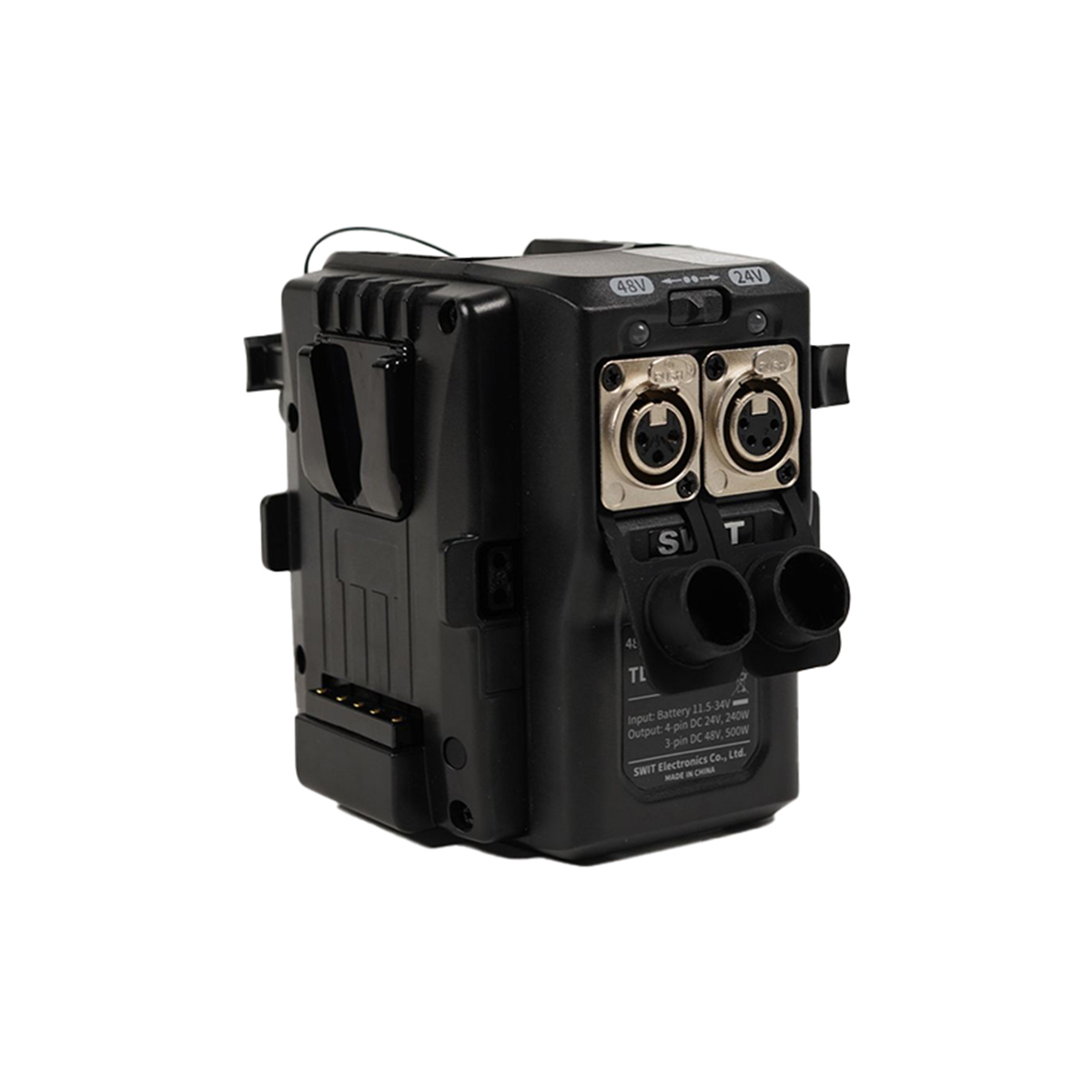

- Neutrik XLR connectors

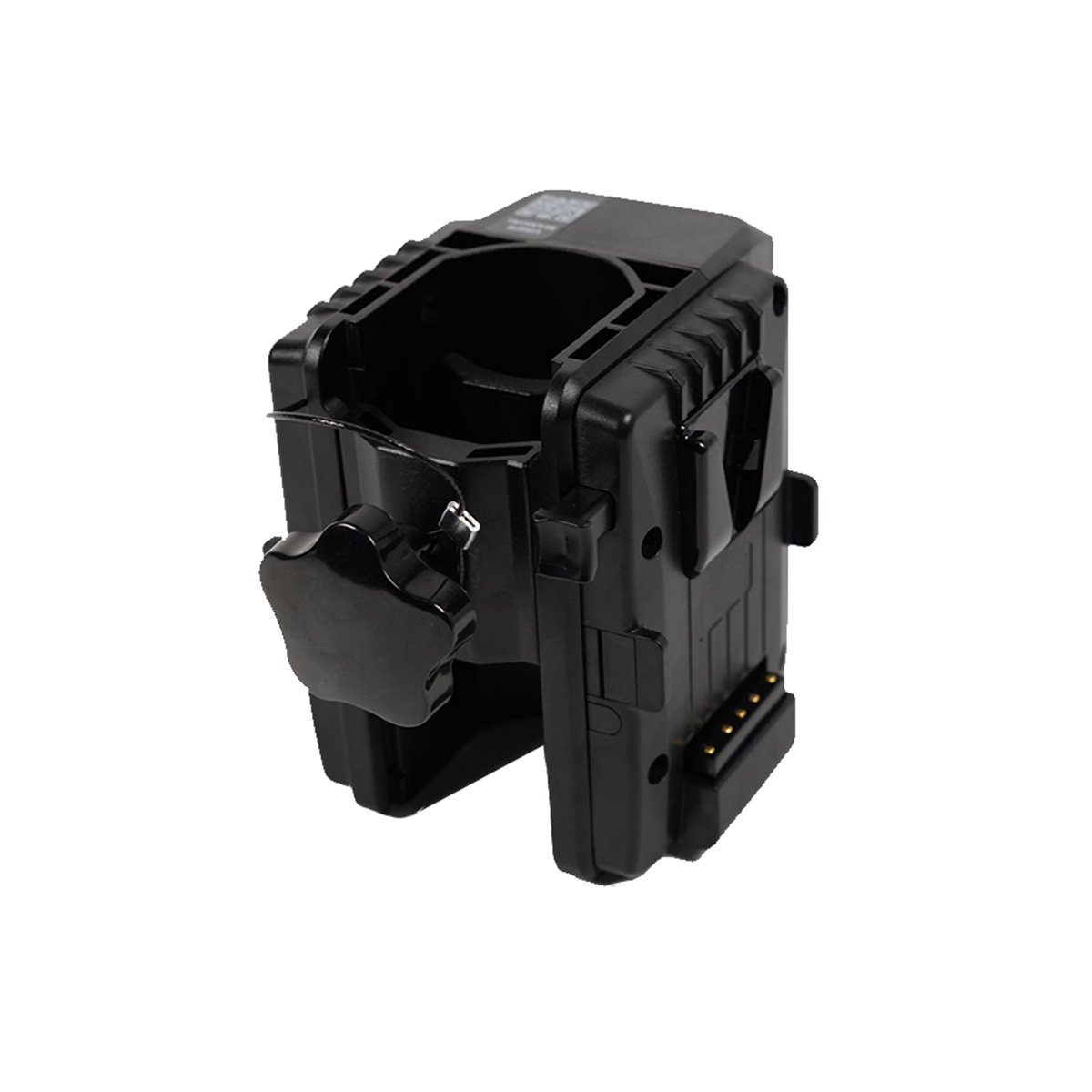

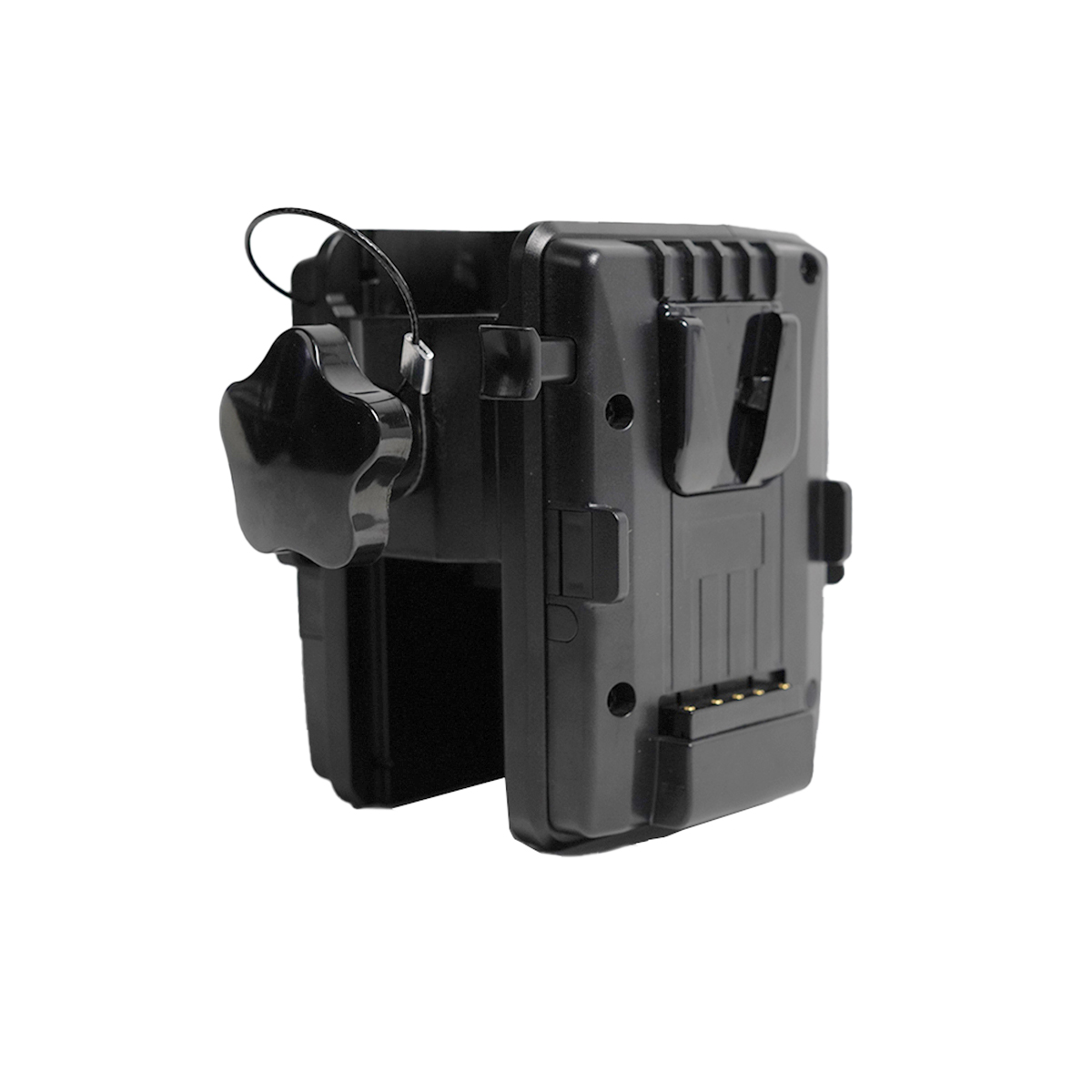

- 25-45mm light stand install
Articles included in this rental
- SWIT TD-R210S 24V/48V Light Stand Power Adaptor
Additional Information
Overview
Max 48V 500W Load
Installed with 2x V-mount batteries, the TD-R210S can output 4pin XLR regulated 24V or 3pin XLR regulated 48V DC power. By normal 14.4V batteries, the Max load is 240W; By SWIT 14.4V/28.8V Bi-voltage batteries, the Max load under 48V can reach 500W, to support high power lights like ARRI Orbiter, Skypanel S60-C / S120-C 100% light output.
Specs
| Model | TD-R210S |
| DC output | 3-pin XLRx1; 4-pin XLR x1 |
| Battery type | 2x V-mount batteries |
| Max Load (by 2x 28.8V batteries) | 3-pin XLR: 48V/10.4A, 500W 4-pin XLR: 24V/10A, 240W |
| Max Load (by 2x 14.4V batteries) | 3-pin XLR: 48V/5A, 240W 4-pin XLR: 24V/10A, 240W |
| Working temp | -20°C – 40°C |
| Dimensions | 127×104×93mm |
| weight | Net 0.9kg |
