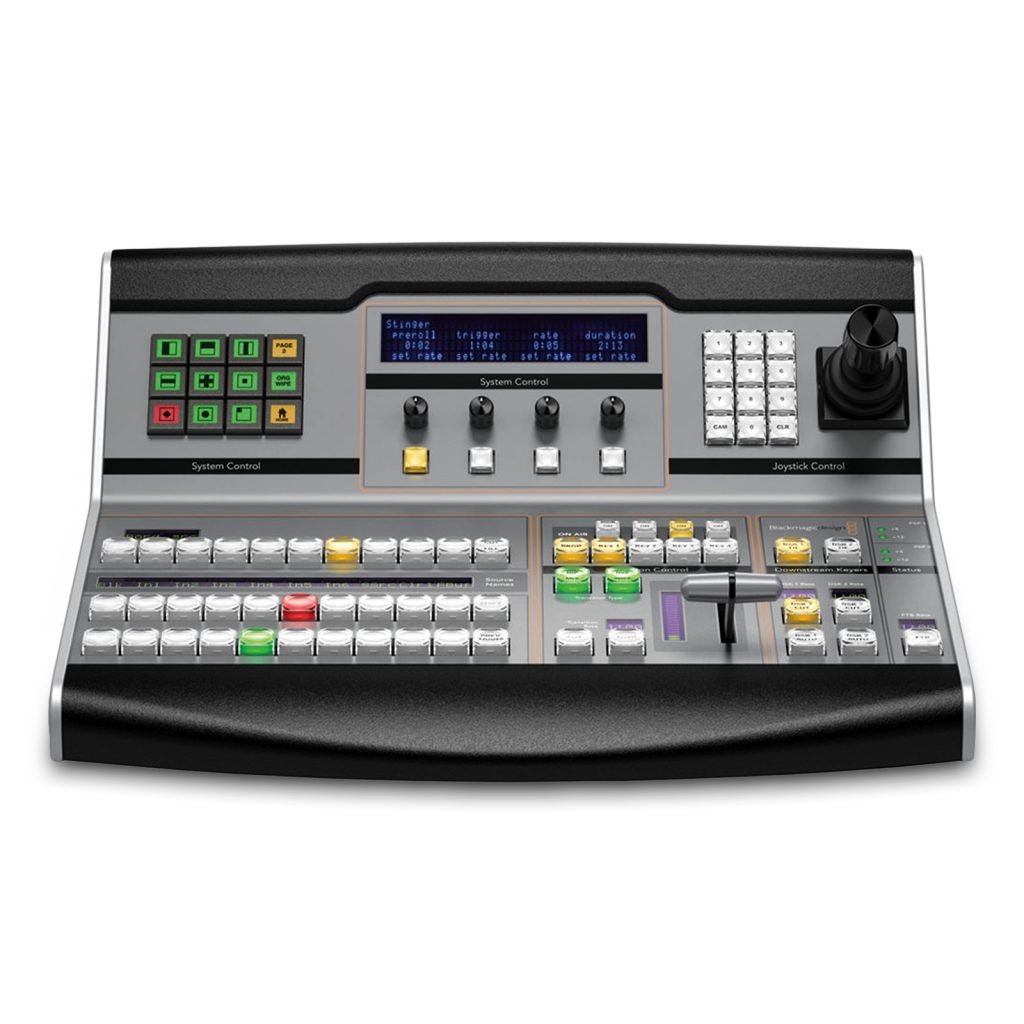

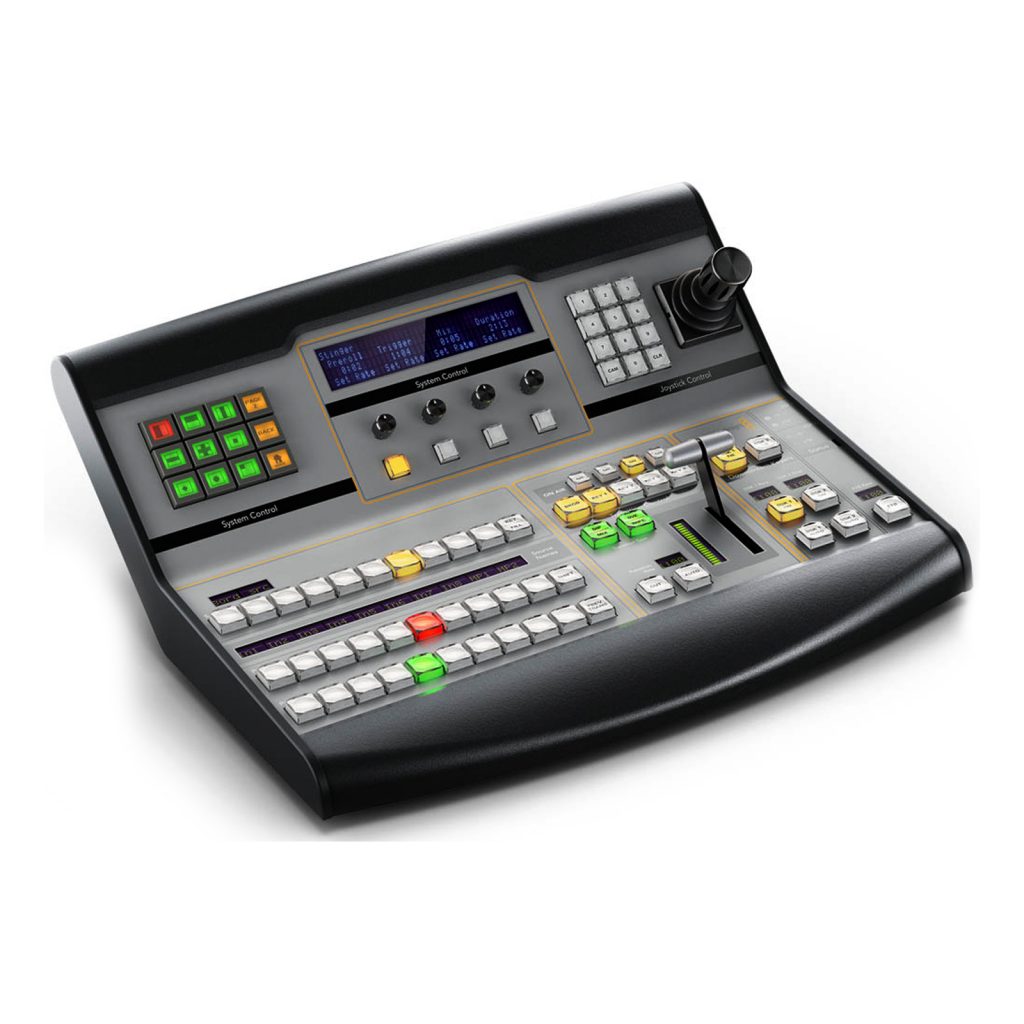

ATEM 1 M/E Broadcast Panel
150.00€ + IVA
When you need more control of you ATEM switcher than the software control panel provides, the Blackmagic Design ATEM 1 M/E Broadcast Panel delivers 24/7 switching control in a robust yet compact hardware panel. This 1 M/E (mix effect) panel incorporates professional-grade buttons, knobs, and controls that would be at home in a broadcast control room. It features dedicated buttons for direct and shifted crosspoints, an on-air indicator, a fader, and 3-axis joystick.
Articles included in this rental
- 1x ATEM 1 M/E Broadcast Panel
Related Products
Additional Information
The buttons are illuminated by a tri-color LED system, and support 4-character length labeling. Use the panel to control inputs, outputs, and effects on your switcher. The panel connects and controls your ATEM switcher via Ethernet, and features a second Ethernet port. The panel fits within a standard rack unit width, and features built-in redundant 120 VAC power supplies to minimize downtime.
Rcursos
- Enables you to have full control over the switcher, input selection, transitions, keyers, fader, and DVE control
- Robust enough to handle 24/7 production
- Two Ethernet ports allow you to control your ATEM switcher, and connect to another panel or a computer
- Can be stored in a drawer or a shelf in a 19″ rack
Ligações | 10/100/1000 BaseT with loop output for additional control panels or computers 1 x USB for firmware updates |
Botões | Tri-color LED crosspoint buttons (10 direct crosspoints; 20 shifted crosspoints) with high-contrast RGB bitmap labels Next transition selectors: BKG, Key1 – Key4 DSK transition selectors: Auto, Cut, Tie/Pvw Menu control: LCD bitmap buttons |
Controles | 3-axis joystick, numeric keypad, 1x fader bars |
Indicadores | On-air |
Sistema Operativo | Aerospace-certified embedded OS |
Compatibilidade | Mac OS X 10.10 Yosemite OS X 10.11 El Capitan or laterWindows Windows 8.1 64-bit or Windows 10 64-bit. |
Redundant Power | Yes |
Voltagem | 100 to 240 VAC |
Consumo de Energia | 40W |
Dimensões (LxAxC) | 448 x 176 x 383mm / 17.6 x 6.9 x 15.1″ |
Peso | 6 kg / 13.2 lbs |
