View your video capture up to 2000′ away from your camera using the FLOW2000 SDI & HDMI Wireless Video System from SWIT. This set includes one transmitter and one receiver, each with a Sony L-Series type battery plate and DC input, that transmit up to 1080p60 uncompressed video and feature 3G/HD/SD-SDI and HDMI inputs/outputs, AES-128 encryption, and embedded SDI/HDMI stereo audio.

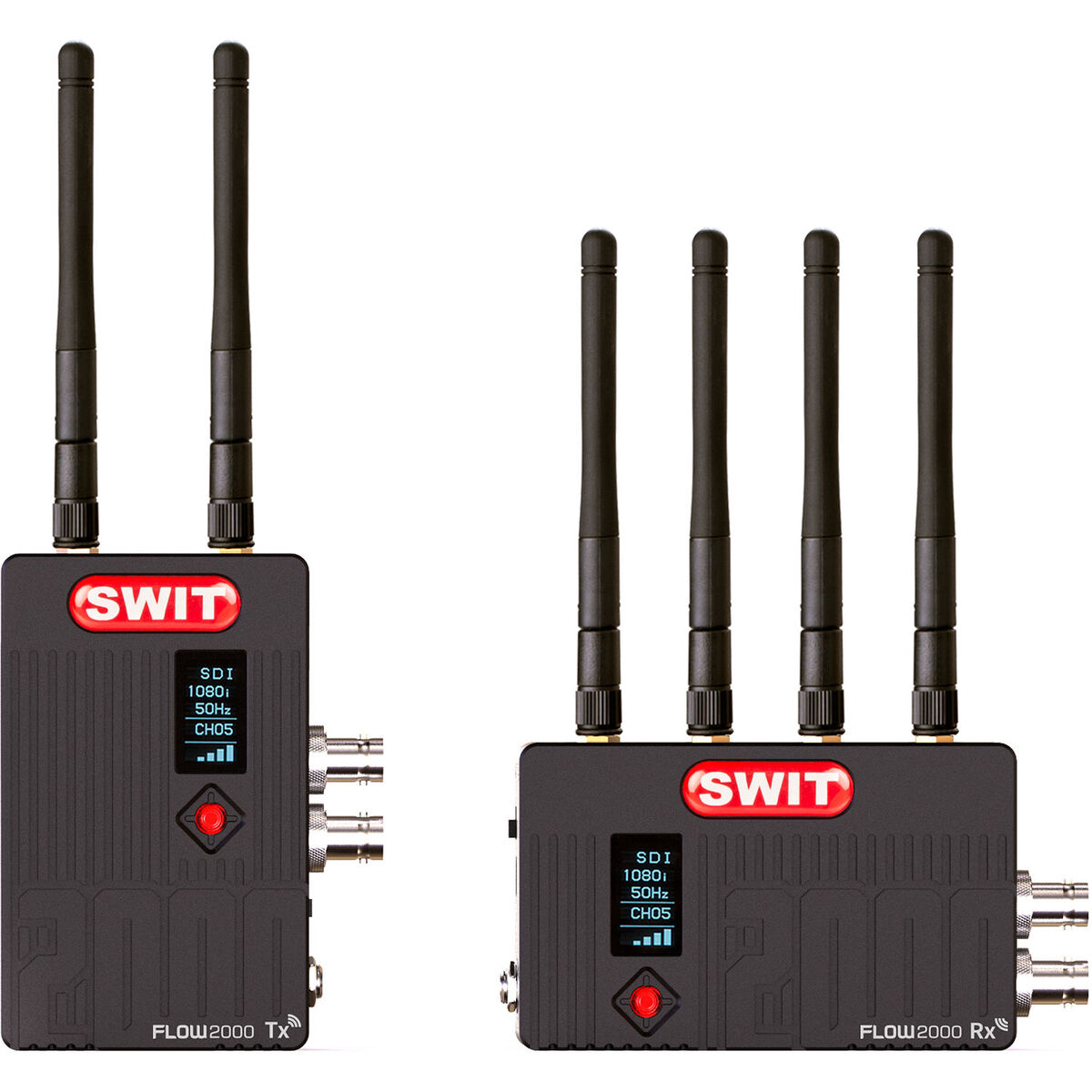

SWIT FLOW2000 SDI & HDMI Wireless Video & Audio Transmission System
100,00 € + IVA /day
Articles included in this rental
- 1x Transmitter
- 1x Receiver
- 6x Antennas
- 1x Locking D-Tap to Barrel Cable (2′)
- 1x Articulating Arm with Shoe Mount
- 1x Power Adapter
- 1x Carry Case
Additional Information
Main Features
Up to 2000′ Transmission
- Transmits uncompressed video and embedded audio at distances up to 2000′ (line-of-sight)
- Robust wall-penetrating transmission with RF and image quality optimization
SDI & HDMI Inputs/Outputs

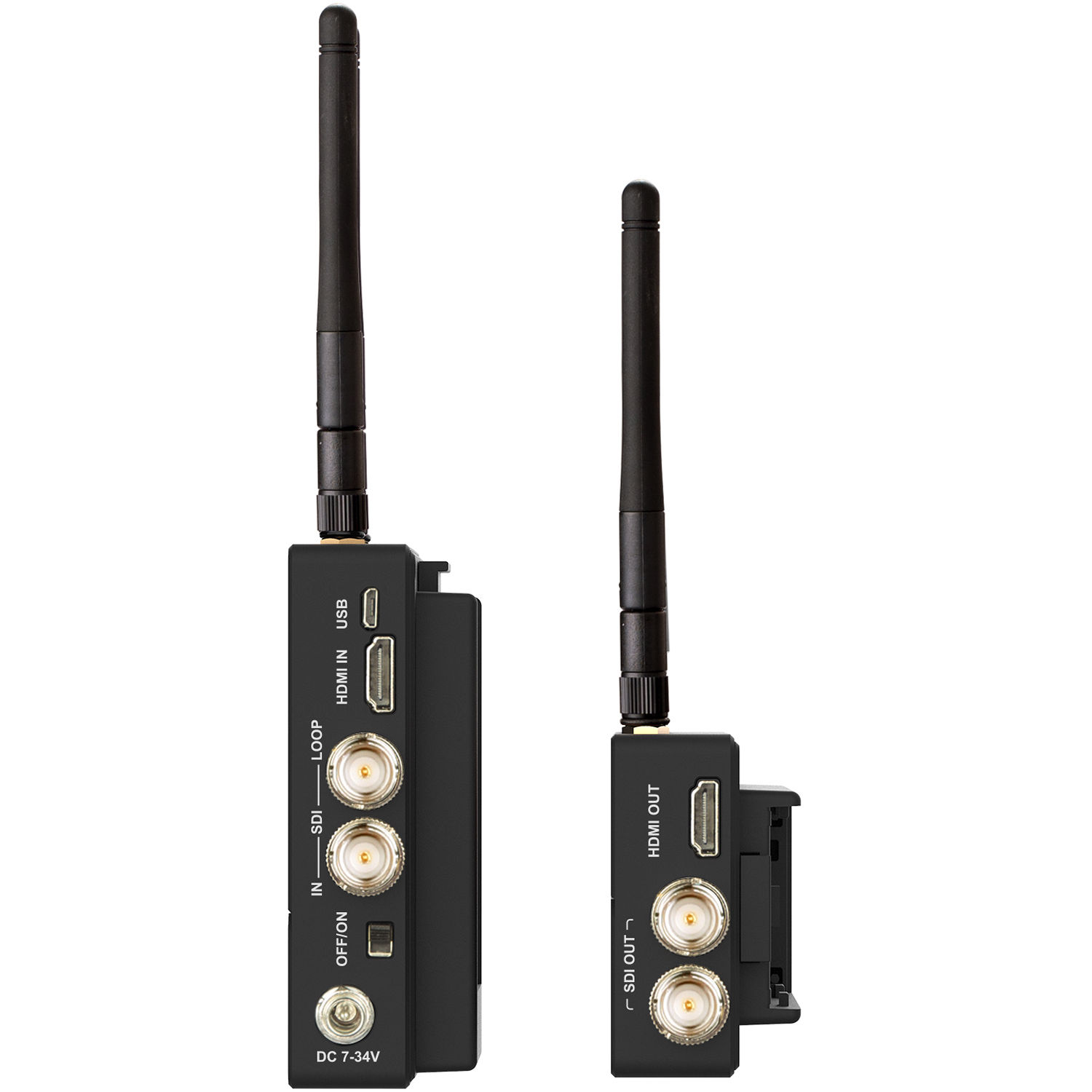

- Transmitter has single HDMI Type-A input
- Transmitter has single SDI (BNC) input and loop output
- Receiver has single HDMI and dual SDI (BNC) outputs
1080p60 HD Video
- Supports multiple video resolutions up to 1080p60
5.1 to 5.9 GHz Transmission
- License-free operation at 5.1 to 5.9 GHz
- Automatic DFS-compliant and manual non-DFS channel selection
Embedded Audio
2-channel embedded SDI/HDMI audio transmission
Timecode Transmission
Transmits timecode from original video source
Multicast Compatible
Use with separately available receivers to multicast one transmitter to up to four receivers
AES Encryption
AES128 encryption secures your footage transmission
Reclocking
Reclocking for optimal signal transmission
USB Updating
Firmware updating via micro-USB port on both transmitter and receiver
OLED Display
1″ OLED display on both transmitter and receiver
Power Options
Transmitter and receiver both have:

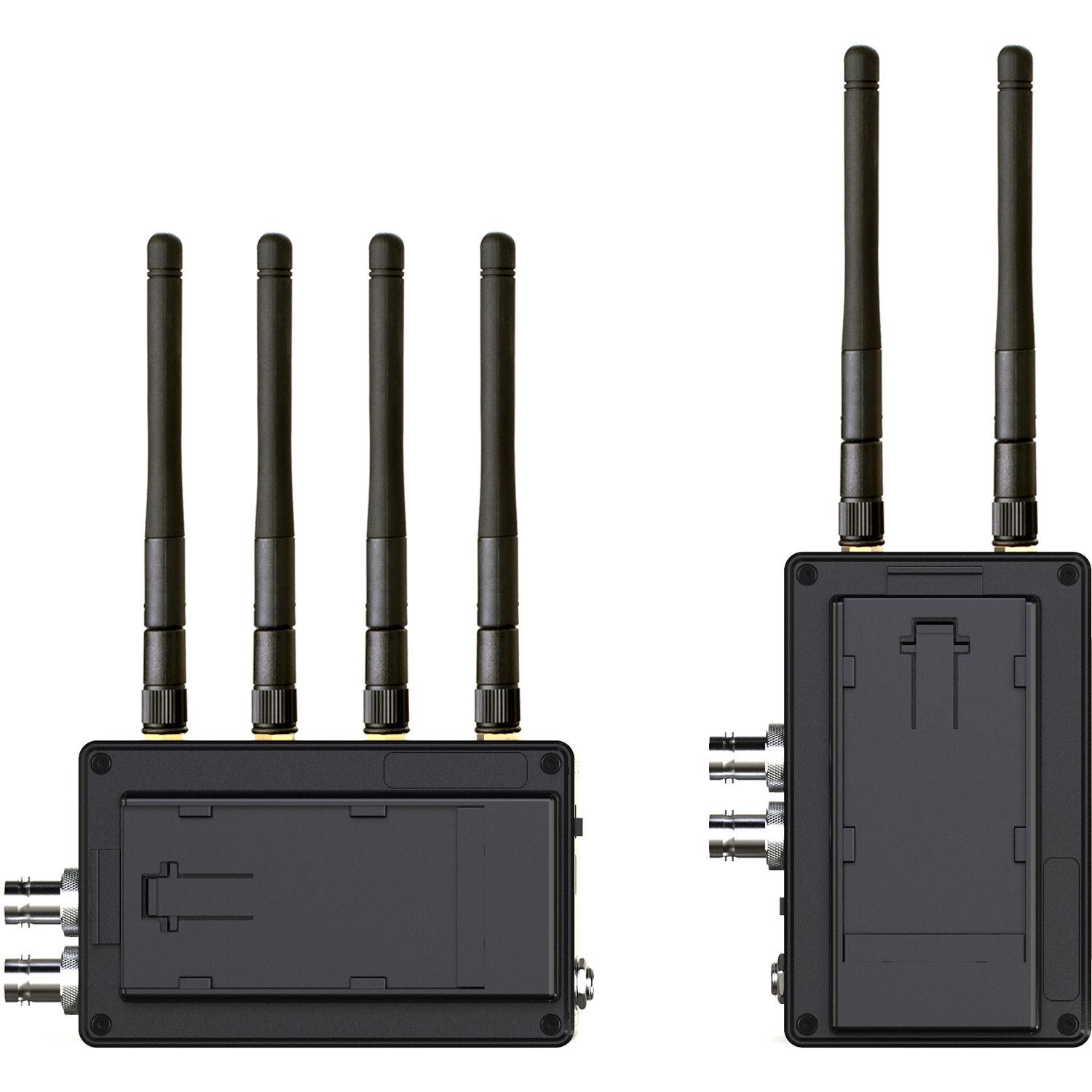

- One Sony L-Series type battery plate
- One 5.5mm DC barrel input
Mounting Options
- Transmitter and receiver both have 1/4″-20 mounting threads
- Includes one articulated arm with 1/4″-20 and shoe mounts
Specs
Inputs/Outputs
| Antenna I/O | |
| Video I/O | |
| Embedded Audio | |
| Audio I/O | |
| Power I/O | |
| Other I/O | |
| Encryption |
Wireless
| Wireless Range | |
| # of Channels | |
| Frequency Range | |
| Wi-Fi | |
| Bluetooth | |
| Mobile App Compatible | |
| Cellular Support |
Format Support
| Video Format | |
| Audio Format | |
| Wireless Video Compression | |
| Timecode Support |
Power
| Input Power | |
| Battery | |
| Power Consumption |
Mounting
| Tripod/Accessory Mounting |
General
| Environmental Resistance | |
| Operating Conditions | |
| Dimensions | |
| Weight |
