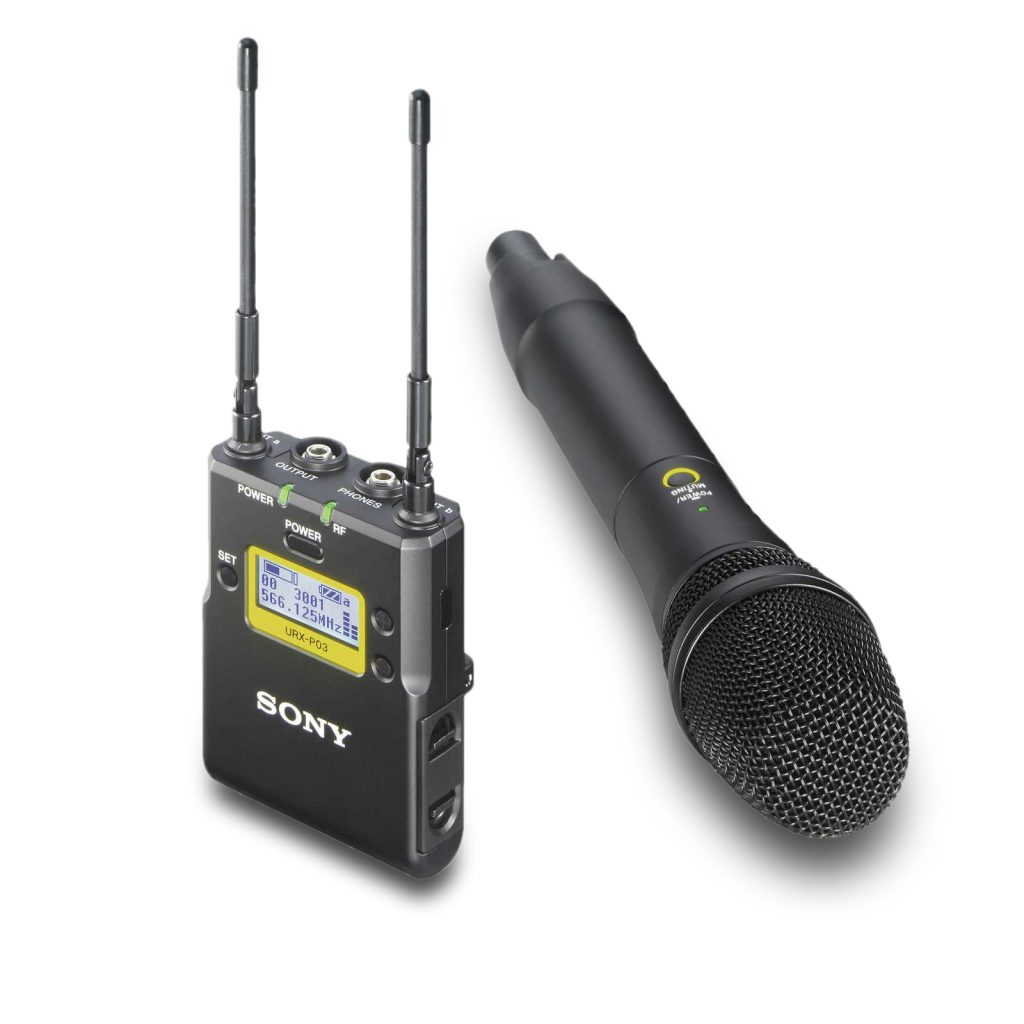

Kit Microfone de mão Wireless Sony

65.00 + IVA /dia

Wireless Microphone Highlights

  • Interchangeable Microphone Capsule
  • Built-In Windscreen
  • Durable Metal Construction
  • Digital Companding Circuitry
  • USB Charging and Power
  • Tone Squelch Suppression Circuitry
  • UWP and WL-800 Series Compatibility

Wireless Receiver Highlights

  • Digital Companding Circuitry
  • True Diversity Receiver
  • Automatic Channel Scanning
  • Infrared Linking to Receiver
  • USB Charging and Power
  • Tone Squelch Suppression Circuitry
  • Simultaneous Multi-Channel Operation
  • UWP and WL-800 Series Compatibility

Artigos incluídos neste aluguer

  • 1 Receptor de 1 canal URX-P03
  • 1 Microfone de Mão Wireless UTX-M03

Alugar este artigo

As datas indicadas deverão ser as datas de utilização do equipamento, não contando com as datas de levantamento e de entrega. Condições especiais para alugueres de longa duração. Contacte-nos

Informação Adicional

The 470 to 542 MHz version of the Sony UTX-M03 Integrated Digital Handheld Wireless Microphone Transmitter features an all-metal chassis, an easy to read LCD display, a wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between the transmitter and receiver, and digital companding circuitry to improve the transient response of received audio. The package is suitable for a wide range of wireless applications such as ENG (Electronic News Gathering), talk shows, lectures, and more.

The transmitter is referred to as integrated digital because the transmitter and receiver utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.

The handheld microphone transmitter features a unidirectional capsule, a built-in windscreen, and a robust metal construction. The capsule can be removed and interchanged with over 40 compatible microphone capsules from various manufacturers, such as the industry standard Shure SM58. The transmitter can operate for up to 8 hours on two AA-size alkaline batteries, can be powered or recharged via USB micro B connections, and features a comprehensive LCD display.

The unit comes with a screw adapter and a microphone holder.

Interchangeable Microphone Capsules
Enables use of Sony’s DWX Series microphone capsules such as the F31, F32, or CU-C31 as well as over 40 capsules from other manufacturers such as the industry standard Shure SM58
Digital Companding
Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
Automatic Channel Scanning
Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
Frequency Coverage
Provides up to 72 MHz of transmission bandwidth
UWP Series / WL-800 Series Compatibility
Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
USB Power Options
Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
UHF Phase Locked Loop (PLL) Synthesized Frequencies
Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
True Diversity Reception
Utilizes dual antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
Tone Squelch Circuitry
Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
Simultaneous Multi-Channel Operation
Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
Selectable RF Output
The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor long-range use
Visual Display
Features a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
All-Metal Construction
Features metal construction for durability
Type of Transmitter Crystal-controlled UHF PLL synthesized handheld microphone transmitter
Antenna 1/4 wave length wire (internal)
Polar Pattern Unidirectional
Emission F3E
Carrier Frequency Range 470 to 542 MHz
RF Power 30 mW / 5 mW
Adjustment Range 151 dB SPL (at 21 dB attenuator level)
Dimensions (Diam. x L) 0 to 21 dB (in 3 dB steps)
Frequency Response Transmission: 23 to 18,000 Hz (typical)
Capsule unit: 70 to 18,000 Hz
Signal to Noise Ratio 96 dB (max deviation, A-weighted)
Audio Delay Approximately 0.35 msec
Pilot Tone 32 kHz / 32.382 kHz / 32.768 kHz
Display LCD
Power Requirements 3.0 VDC (with two AA-size alkaline LR6 batteries)
5.0 VDC (via USB micro-B)
Battery Type/Approx. Life Approximately 8 hours with Sony’s AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output
Operating Temperature 32 to 122°F / 0 to 50°C
Dimensions (W x H x D) 1.89 x 10.24″ / 4.80 x 26.00 cm
Weight Approximately 10.4 oz / 294.8 g including batteries

The 536 to 608 MHz version of the Sony URXP03 Integrated Digital Wireless Portable Receiver features an all-metal chassis, a large easy to read LCD display, a wide switching RF bandwidth, USB power and charging, automatic channel scanning, infrared synchronization between transmitter and receiver, true diversity reception, PLL-synthesized tuning, a headphone output for monitoring, an output gain control for optimizing input level to a camera, and digital companding circuitry. The package is suitable for a wide range of wireless applications such as electronic news gathering (ENG), documentary work, talk shows, conferences, and more.

The receiver is referred to as integrated digital because it utilizes DSP for digital expansion of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.

The camera-mountable receiver features true-diversity technology which stabilizes reception and minimizes RF interference by using dual antenna input/reception circuits and selecting the strongest incoming signal. The angle of the antennas is also adjustable to improve reception when the receiver is mounted on top of a camera or camcorder. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection.

A stereo mini-jack output with monitor volume control is featured and both stereo mini and stereo XLR cables are provided. The unit also includes a headphone monitor output for use with cameras and camcorders that don’t have a monitor output. An LCD display provides channel and frequency information, battery life, RF-input level, audio-output status and accumulated operating time.

For power, the receiver operates on two AA batteries for up to 6 hours, or on 5 VDC of USB power over a USB micro B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The receiver’s compact design and included shoe-mount adapter allows easy mounting to most camcorders and interchangeable lens system cameras.

The receiver comes with a belt clip, a shoe-mount adapter, a 3.5mm mini to 3.5mm mini stereo cable, and a 3.5mm mini to XLR cable. Optional accessories such as a soft case are sold separately.

Digital Companding
Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response
Automatic Channel Scanning
Scans for available transmission channels and then syncs the transmitter to the receiver via infrared
Frequency Coverage
Provides up to 72 MHz of reception bandwidth
UWP Series / WL-800 Series Compatibility
Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver
Headphone Output
Enables direct monitoring of receiver via headphones; especially useful for cameras that lack a monitor output
USB Power Options
Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge
Output Level Control
Controls the receiver’s output level with ±12 dB adjustments for optimizing the input level into the camera
UHF Phase Locked Loop (PLL) Synthesized Frequencies
Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver
True Diversity Reception
Utilizes dual-antenna reception circuits and selects the stronger incoming signal to reduce drop-outs
Tone Squelch Circuitry
Utilizes pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources
Simultaneous Multi-Channel Operation
Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups
Visual Display
Both transmitter and receiver feature a comprehensive LED display providing channel and frequency information, battery life, total usage time and more
Improved All-Metal Construction
The transmitter and receiver feature metal construction for durability
System
Type of System Camera-mountable UHF-synthesized wireless system
RF Carrier Frequency Range 536 to 608 MHz
RF Bandwidth 72 MHz
Approx. Working Range Not Specified by Manufacturer
Receiver
Type of Receiver Camera-mountable, true diversity, crystal-controlled PLL synthesizer
Reception Type True diversity
Antenna Type 1/4 wave length wire
Frequency Response 23 Hz to 18 kHz (typical)
Signal to Noise Ratio 96 dB (max deviation, A-weighted)
Distortion 0.9% or less (-60 dBV, 1 kHz input)
Audio Delay Approximately 0.35 msec
Type of Outputs 1/8″ / 3.5 mm mini-jack, unbalanced
Analog Output Levels -60 dBV (at ±5 kHz deviation)
Adjustment Range -12 dB to +12 dB (in 3 dB steps)
Headphone Monitoring 1/8″ / 3.5 mm stereo mini-jack, unbalanced with variable level
Headphone Output Level 5 mW (at 16-Ohm load)
Pilot Tone 32, 32.382, 32.768 kHz
Display LCD
Power Requirements 3.0 V (with two AA-size alkaline (LR6) batteries)
5.0 VDC (via USB micro-B)
Battery Type/Approx. Life Approximately 6 hours with Sony’s AA-size alkaline (LR6) batteries at 77°F (25°C)
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 131°F (-20 to +55°C)
Mounting Options Camera / Belt / Mic Stand Mountable
Dimensions 2.48 x 3.23 x 0.94″ / 63.0 x 82.0 x 23.8 mm
Weight 6.21 oz / 176 g including batteries
