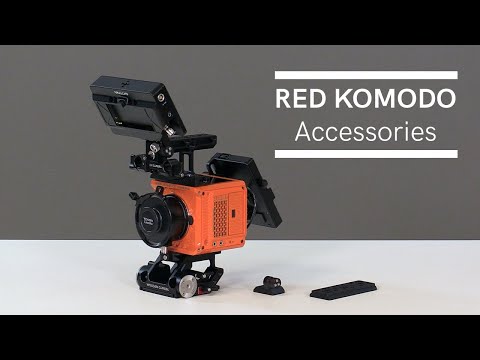

Red KOMODO 6K Cinema Camera Production Pack
250,00 € + IVA /dia
A câmara RED KOMODO tem de origem o RF mount, o que permite utilizar uma grande variedade de adaptadores para outras monturas. A Digital Azul dispõe de adaptadores PL e EF para RF.
Artigos incluídos neste aluguer
- 1x RED® KOMODO™ 6K Cinema Camera
- 1x Adaptador EF para RF c/ filtro ND Variável (Canon)
- 1x Adaptador PL para RF (Wooden Camera)
- 1x LW 15mm Baseplate (Wooden Camera)
- 1x Base Baterias VMOUNT (Wooden Camera)
- 1x Drop-in Clear Filter (Canon)
- 1x Outrigger Handle (RED® KOMODO™)
- 1x Wing Grip (RED® KOMODO™)
- 1x Expander Module (RED® KOMODO™)
- 2x Cartões RED PRO CFast 512GB
- 1x CFast 2.0 Card Reader (RED® KOMODO™)
- 1x PTap-to-Power Cable 6′ (RED® KOMODO™)
- 1x ATOMOS NINJA V
- 2x Baterias REDVOLT BP ou 2x Baterias V-Mount 140wh
- 1x Tripé – opcional pelo valor de 50% sobre o preço de tabela – consulte a nossa lista de tripés
Produtos Relacionados
-
Adaptador Canon EF para RF c/ filtro ND Variável
Referência: 382282305950,00 € + IVA /dia Seleccionar Datas -
Bateria Redvolt BP
Referência: 326175675015,00 € + IVA /dia Seleccionar Datas -
Cartão Red Pro CFast 512GB
Referência: 326130961720,00 € + IVA /dia Seleccionar Datas -
Ninja V – Monitor Gravador 4K HDMI/SDI
Referência: 2001475,00 € + IVA /dia Seleccionar Datas
Informação Adicional
The KOMODO 6K Camera Production Pack from RED DIGITAL CINEMA pairs the lightweight Super35 KOMODO 6K camera with multiple key accessories. This starter pack includes an RF to EF mechanical lens mount adapter, the electronic Canon EF-EOS R Mount Adapter with Drop-In Variable ND Filter, an expander module, two REDVOLT BP 6300mAh batteries, an outrigger handle, a clear drop-in filter, an AC power adapter, a Mini World Travel Adapter Kit, one 512GB card, a card reader, a wing grip, and a D-Tap to RED power cable.
Firmware update v.1.5.5 fixes some playback and sync issues, while v.1.5.3 added support for 6K anamorphic, 4-channel audio, FTPS for remote offloading, Canon RF lens control ring support, and more. Version 1.5.3 also added ExAscend CFast 512GB and 1TB cards to the approved media list.
RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera (Canon RF)
RED has taken fresh steps with the release of the KOMODO 6K Digital Cinema Camera by bringing their legendary image quality and color science into an ultra-compact, all-in-one design that weighs just 2.1 lb measures about 4 x 4 x 4″. Key to achieving this goal was the use of the Canon RF lens mount and the KOMODO 19.9MP Super35 CMOS sensor which boasts Global Shutter technology. This sensor can create images with 16+ stops dynamic range and eliminates rolling shutter artifacts. Users can also be certain they are getting RED quality thanks to the ability to record up to 6K at 40 fps, 5K at 48 fps, 4K at 60 fps, and 2K at 120 fps in REDCODE RAW for incredible flexibility in post-production.
Revolutionary for RED is the creation of an extremely compact all-in-one design with the KOMODO. This means you can simply pop in a CFast 2.0 card into its media slot and you are ready to roll with data rates up to 280 MB/s. A top 2.9″ 1440 x 1440 touchscreen makes it easy to configure and monitor your footage or you can use the RED Control system for using an iOS or Android device for preview and settings. This is possible through integrated 2.4/5 GHz Wi-Fi. Wired control is also possible via the USB Type-C port and optional adapters.
The use of the Canon RF lens mount allows the KOMODO to be extremely compact while still enabling compatibility with a vast range of lenses through the use of optional adapters. The mount will natively support mechanical RF lenses and mechanical EF lenses via the included adapter. Using optional electronic EF-to-RF mount adapters, the KOMODO will even support electronic Canon EF-mount lenses and unlock additional functionality, such as autofocus.
A first for RED is the ability to use Phase-Detect Autofocus (PDAF) with compatible lenses. This includes adapted Canon EF-mount lenses used with a separately available EF-to-RF adapter with electronic communication. Phase-detect systems are known for their speed by measuring and comparing distance and should provide a reliable, accurate system for video production. Additionally, the touchscreen can be used for quickly changing focus and selecting subjects.
Getting back to image quality, the KOMODO promises to be among RED’s finest with the ability to capture up to 6K at 40 fps using the powerful 16-bit REDCODE RAW format. RED has simplified compression options, giving users a choice between HQ, MQ, and LQ, each varying compression from low to high, respectively. Having these choices allows users to choose the best option for each shoot and whether to prioritize data rate or image quality. REDCODE RAW is supported for 5K up to 48 fps, 4K up to 60 fps, and 2K up to 120 fps and will deliver the greatest possible flexibility in post-production. Those looking to use a more conventional format can record natively in Apple ProRes 422 HQ and standard 422 with DCI 4K up to 60 fps or DCI 2K up to 120 fps.
Being a complete all-in-one camera solution, the KOMODO features an array of necessary ports and connections. This includes integrated stereo microphones and a 3.5mm input for audio, genlock/timecode/GPIO/RS232 support via a 9-pin EXT port, and a DC power input. A 12G-SDI port will support up to DCI 4K at 60 fps in 10-bit 4:2:2 quality for dedicated monitoring solutions. The rear of the camera also sports dual Canon BP-9xx series battery slots, which can be hot-swapped for practically unlimited recording in the field.
The RED KOMODO 6K offers an exceptionally compact form factor that sacrifices nothing in terms of image quality. This base model includes the KOMODO 6K, a 45W AC power adapter, Mini World Travel Adapter Kit, and a Canon RF-to-EF mechanical adapter.
Firmware Update v.1.5.5
- Fixed playback stuttering at high frame rates, German SLA causing a camera shutdown, and RFB raw metering in 6K full frame
- Improved LCD sync issues in playback with anamorphic formats
- Improved general stability
6K S35 Sensor
Global Shutter
Compact Form, Versatile Power
CFast Recording
REDCODE RAW
REDCODE Options
- HQ is perfect for VFX, extremely detailed scenes, and capturing stills from motion
- MQ is great for cinema and high-end TV projects
- LQ is ideal for TV, online content, documentaries, interviews, and long takes
Apple ProRes Formats
Color Management
Touchscreen Display
RED DIGITAL CINEMA KOMODO Outrigger Handle
The KOMODO Outrigger Handle from RED DIGITAL CINEMA provides flexible handling when operating your KOMODO digital cine camera. This low-profile handle is especially suited for keeping one hand on the integrated record/stop button and the other positioned for focus pulls or zooming.
The KOMODO Outrigger handle features include a rugged build, 360° of swivel rotation for optimal positioning, and two 1/4″-20 mounting points.
RED DIGITAL CINEMA KOMODO Wing Grip
Add the Wing Grip from RED DIGITAL CINEMA to your KOMODO camera to create a low-profile, handheld support option. This aluminum handle’s simple u–shaped design features an ergonomic grip and both 1/4″-20 and anti-twist 3/8″-16 threads for attaching accessories.
Compatibility
RED DIGITAL CINEMA KOMODO Expander Module
The KOMODO Expander Module from RED DIGITAL CINEMA provides additional video, power, and communication interfaces for your KOMODO 6K digital cine camera. These pro video connectors include timecode in, genlock, and GPI BNC ports plus a 4-pin control interface.
This expander module incorporates multiple 1/4″-20, 3/8″-16, and ARRI-style anti-twist accessory threads. Additional features include a built-in quick release plate and durable aluminum construction.
RED DIGITAL CINEMA 512GB RED PRO CFast 2.0 Memory Card
The 512GB RED PRO CFAST 2.0 Memory Card from RED DIGITAL CINEMA provides reliable recording for the KOMODO 6K and KOMOD ST digital cinema cameras. This CFast 2.0 card features data rates up to 280 MB/s and a durable build that is both X-ray and magnet proof. Each card is resistant to extreme temperatures, humidity, shock, and vibration.
RED DIGITAL CINEMA CFAST 2.0 Card Reader
The CFAST 2.0 Card Reader from RED DIGITAL CINEMA enables you to quickly offload your KOMODO digital cine camera footage. This CFAST 2.0 card reader features a USB Type-C port that operates using a 10 Gb/s, USB 3.1 Gen 2 standard. The CFAST 2.0 Card Reader is Windows, macOS, and Linux compatible.
RED DIGITAL CINEMA D-Tap-to-Power Cable (6′)
The D-Tap-to-Power Cable enables you to power your RED DIGITAL CINEMA KOMODO camera from a battery with a D-Tap 7 to 17 VDC output. This cable sports a D-Tap connector on one end and a 2-pin connector on the other, and it measures 6′ including the connectors.
Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter
Extending the range of compatible lenses, this Canon Drop-In Filter Mount Adapter EF-EOS R is a unique lens adapter designed for attaching any EF or EF-S-mount lens to the EOS R mirrorless digital camera. This sophisticated adapter affords compatibility with select A-type drop-in filters, and includes a variable neutral density filter for greater control over your exposure settings.
The adapter’s design extends the ability to use filters with unique lenses that cannot accept filters on the front, and and it also retains full autofocus and image stabilization capabilities of the mounted lens. It is also dust- and water-resistant, making it suitable for use in harsh weather conditions.
Canon Drop-In Clear Filter A
Designed for use with the Canon Drop-In Filter Mount Adapter EF-EOS R, this Drop-In Clear Filter A is a simple clear protective filter used to guard the interior of the camera body and rear element of the lens when the lens adapter is in use. It is primarily used when the Drop-In Filter Mount Adapter is in place, but no filter effects are desired.
RED DIGITAL CINEMA REDVOLT BP for KOMODO 6K S35
Boost your KOMODO 6K S35 runtime with the REDVOLT BP battery pack from RED DIGITAL CINEMA. This battery features a longer-lasting, 6300mAh capacity and in-camera display of the remaining battery time. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is hot-swappable and mounts directly onto your KOMODO’s battery plate.
Compatibility
Long-Lasting
In-Camera Display
Hot-Swappable Compact Form
RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera (Canon RF) Specs
Lens Mount | Canon RF |
Included Lens Mount Adapter | Canon EF |
Lens Communication | Yes, with Autofocus Support |
Sensor Resolution | Effective: 19.9 Megapixel (6144 x 3240) |
Sensor Type | 27.03 x 14.26 mm (Super35) CMOS |
Image Stabilization | None |
Built-In ND Filter | None |
Capture Type | Stills & Video |
Shutter Type | Electronic Global Shutter |
Shutter Speed | 1/8000 to 1 Second |
ISO Sensitivity | 250 to 12,800 |
Shutter Angle | 0 to 360° |
Advertised Dynamic Range | 16 Stops |
White Balance | 1700 to 10,000K |
Internal Recording Modes | ProRes 422/ProRes 422 HQ 4096 x 2160 up to 59.94 fps ProRes 422 2048 x 1080 up to fps REDCODE RAW 6144 x 3240 up to 40 fps [280 Mb/s] 5120 x 2700 up to 48.00 fps [280 Mb/s] 4096 x 2160 up to 59.94 fps [280 Mb/s] 2048 x 1080 up to fps [280 Mb/s] |
External Recording Modes | 4:2:2 10-Bit via SDI/BNC 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps |
Sensor Crop Modes | Super35 / APS-C |
Sensor Crop While Recording | 5K (5120 x 2700) in 17:9 When Recording in Raw 4K (4096 x 2160) in 17:9 When Recording in Raw 2K (2048 x 1080) in 17:9 When Recording in Raw |
Built-In Microphone Type | Stereo |
Audio Recording | 2-Channel 24-Bit 48 kHz |
IP Streaming | None |
Aspect Ratio | 16:9 |
Media/Memory Card Slot | Single Slot: CFast (CFast 2.0) |
Video I/O | 1 x BNC (12G-SDI) Output |
Audio I/O | 1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input |
Power I/O | 1 x LEMO 2-Pin (7 to 17 VDC) Input |
Other I/O | 1 x 9-Pin (Genlock, GPI, RS-232, Timecode) |
Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control |
Global Positioning (GPS, GLONASS, etc.) | None |
Size | 2.9″ |
Resolution | 1440 x 1440 |
Display Type | Fixed Touchscreen LCD |
Type | Optional, Not Included |
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 122°F / -20 to 50°C |
Storage Humidity | 0 to 85% (Non-Condensing) |
Battery Type | Canon BP-9 Series |
Power Consumption | 45 W |
Tripod Mounting Thread | 1/4″-20 Female (Bottom) 3/8″-16 Female (Bottom) |
Netflix Approved | Yes |
Material of Construction | Aluminum |
Dimensions (W x H x D) | 4 x 4 x 4″ / 10.2 x 10.2 x 10.2 cm |
Weight | 2.1 lb / 1 kg |
RED DIGITAL CINEMA KOMODO Outrigger Handle Specs
Attachment Method | Attaches via 2 x Built-In 1/4″-20 Screw |
Compatibility | Attaches Directly to Camcorder: RED KOMODO |
Accessory Mounting | 2 x 1/4″-20 Thread |
Shoe Mounting | None |
Rosettes | None |
Rail Mounting | None |
Item Type | Right-Side Handgrip |
Rotation | Yes, 360° |
Built-In Controls | Remote Trigger |
RED DIGITAL CINEMA KOMODO Wing Grip Specs
Attachment Method | Not Specified by Manufacturer |
Accessory Mounting | Multiple x 1/4″-20 Thread Multiple x Anti-Twist 3/8″-16 Thread |
Shoe Mounting | None |
Rosettes | None |
Rail Mounting | None |
Item Type | Single Handgrip |
Built-In Controls | None |
Materials | Aluminum |
Dimensions | 3.7 x 1.5 x 1.3″ / 95 x 38 x 32 mm |
Weight | 2.1 oz / 59 g |
RED DIGITAL CINEMA KOMODO Expander Module Specs
Connections | Genlock: 1 x BNC GPI: 1 x BNC Timecode In: 1 x BNC Control: 1 x 4-Pin |
Accessory Mounting Threads | Multiple: 1/4″-20 Multiple: 3/8″-16 Multiple: ARRI-Style Anti-Twist |
Material of Construction | Aluminum Alloy |
Dimensions | Not Specified by Manufacturer |
Weight | Not Specified by Manufacturer |
RED DIGITAL CINEMA 512GB RED PRO CFast 2.0 Memory Card Specs
Quantity | 1 |
Card Type | CFast 2.0 |
Storage Capacity | 512 GB |
Speed (X-rating) | 3500x |
Durability | Magnet-Proof, Shockproof, Temperature Extremes, X-Ray Proof |
Operating Temperature | 32 to 158°F / 0 to 70°C |
Storage Temperature | -40 to 185°F / -40 to 85°C |
RED DIGITAL CINEMA CFAST 2.0 Card Reader Specs
Media Card Reader | 1 x CFast (CFast 2.0 / SATA III [6 Gb/s]) |
System Connection | USB Type-C Male [USB 3.1 / 3.2 Gen 2 (10 Gb/s)] |
RED DIGITAL CINEMA D-Tap-To-Power Cable (6′) Specs
Connector 1 | 1 x 2-Pin |
Connector 2 | 1 x D-Tap |
Voltage Control | Regulated |
Voltage | 7 to 17 VDC |
Cable Length | 6′ / 1.83 m |
Canon Drop-In Filter Mount Adapter EF-EOS R With Variable ND Filter Specs
Camera Mount | Canon RF |
Lens Mount | Canon EF, Canon EF/EF-S |
Dimensions | ø: 2.9 x H: 1.0″ / ø: 73.2 x H: 24.7 mm |
Weight | 4.27 oz / 121 g |
Canon Drop-In Clear Filter A Specs
Filter Type | Clear |
Filter Factor | 1x (0-Stop) |
Circular Size | Not Specified by Manufacturer |
Filter Material | Glass |
RED DIGITAL CINEMA REDVOLT BP For KOMODO 6K S35 Specs
Mount / Series Type | Canon BP-900 Series |
Chemistry | Lithium-Ion |
Battery Capacity | 6300 mAh |
Accessory Port | None |
Dimensions (W x H x D) | 4.16 x 2.36 x 1.78″ / 105.66 x 59.94 x 45.21 mm |
Weight | 8.32 oz / 236 g |
