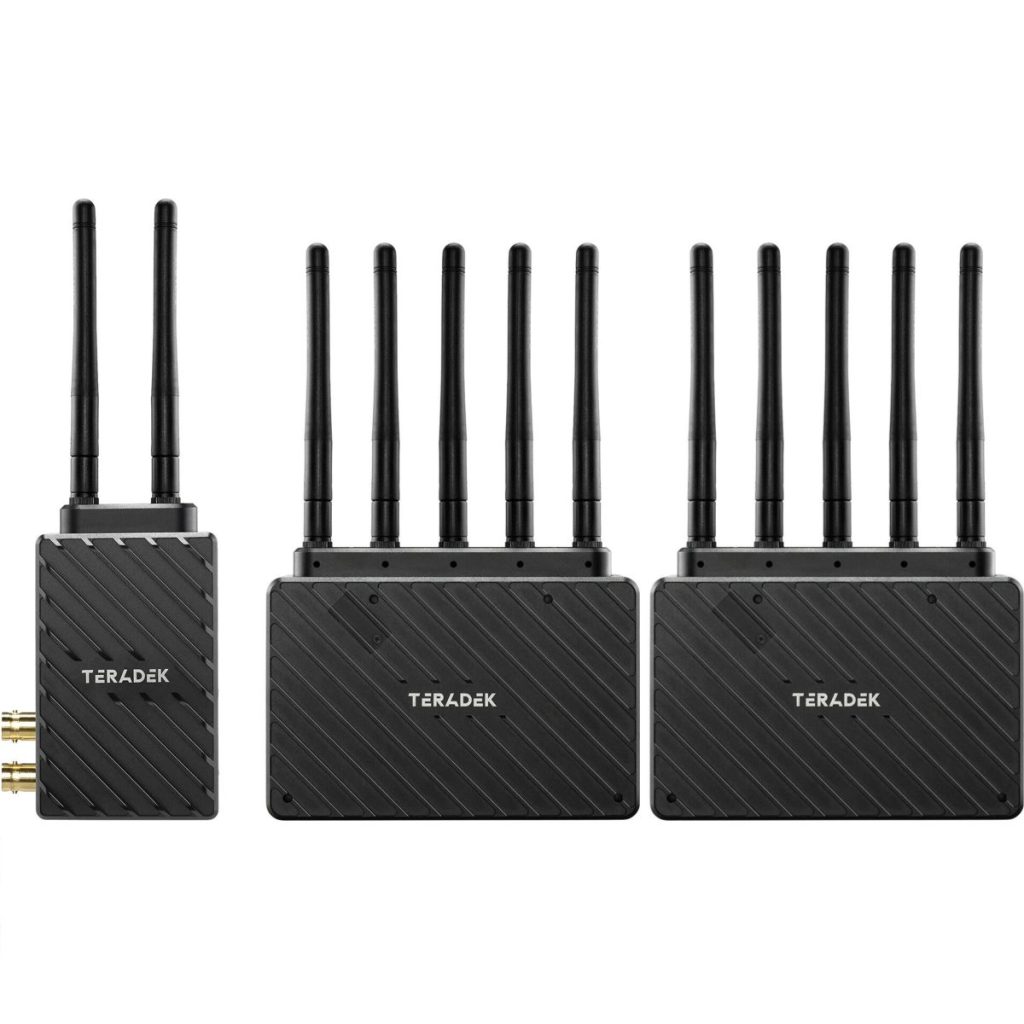

Teradek Bolt 6 LT 750 1TX/2RX — 4K Wireless Video Transmission (230 m)
Price on request /day
Transmit and receive lossless HD video from up to 750′ line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver, which support the new 6 GHz wireless frequency, feature bright OLED displays, and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.
The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are compatible with all Bolt 4K models using the 5 GHz wireless band.

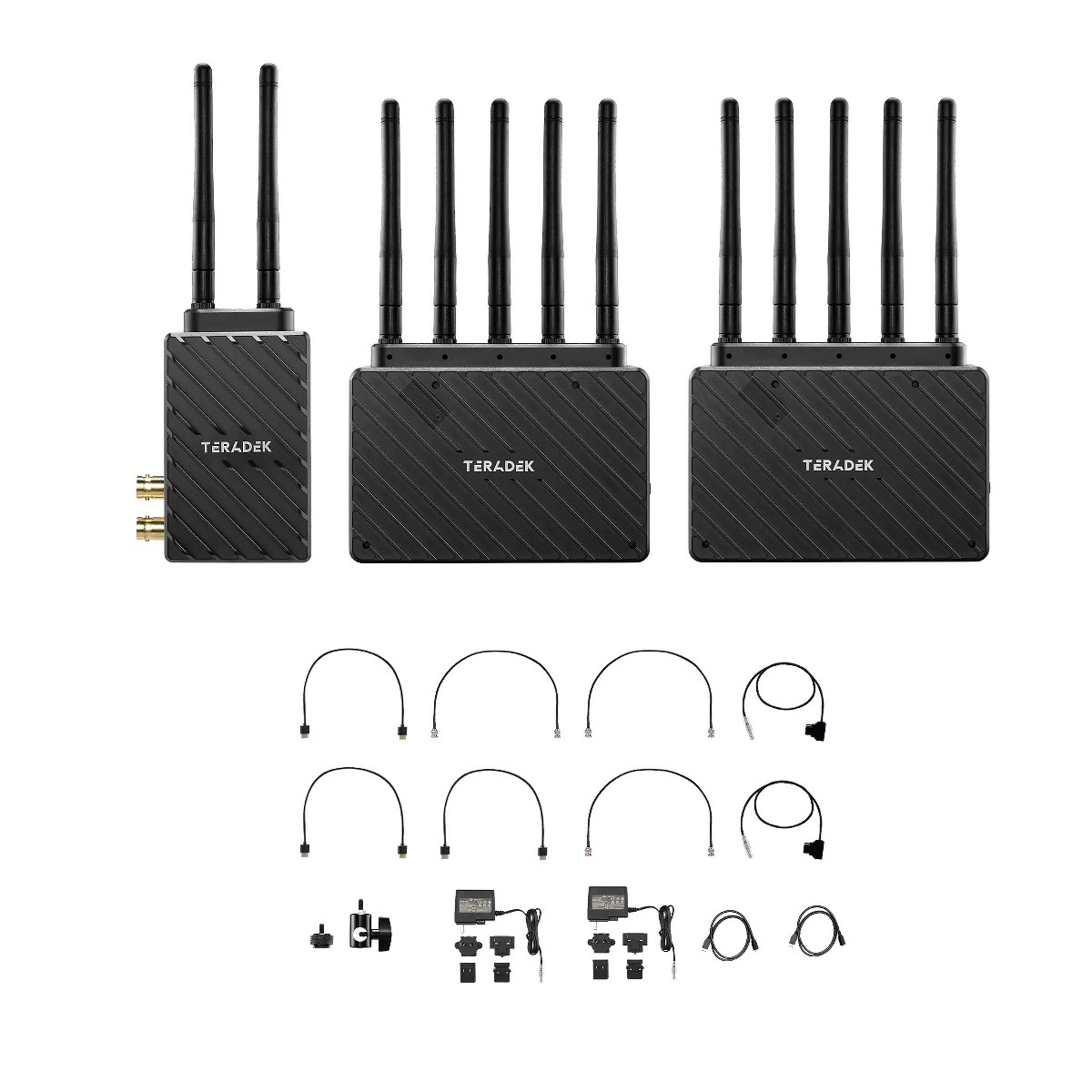

Articles included in this rental
- 1× Teradek Bolt 6 LT 750 TX (Transmitter)
- 2× Teradek Bolt 6 LT 750 RX (Receiver)
- 1× Lightstand Adapter 1/4″-20
- 1× Hot Shoe Adapter
- 2× 2-pin to PowerTap Cables
- 3× Spiral 3G SDI BNC-to-BNC (7.9 in / 20 cm) Cables
- 3x HDMI-to-HDMI (7.9 in / 20 cm) Cables
- 2× PSU (2-pin to 30 W AC Adapter – 1.8 m Cable)
- 12× 2 dBi Rigid V Antennas (4.9–7.3 GHz RP-SMA)
- 2× USB 2.0 Type-A to USB-C Cable
- 1× Teradek Hard Case (Large – Fits 1TX + 2RX + Accessories)
Additional Information
Overview
Quick Features
- Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
- Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
- Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
- SDI Eye Pattern Tool to check SDI cable integrity
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Improved “long range” mode
- Small and lightweight chassis design
- Transmit to up to six Bolt 4K or Bolt 6 series receivers
- AES-256 encryption support
- Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Specs
Inputs/Outputs
| Antenna I/O | |
| Video I/O | |
| Embedded Audio | |
| Audio I/O | |
| Power I/O | |
| Other I/O | |
| Encryption |
Wireless
| Wireless Range | |
| Channel Bandwidth | |
| Frequency Range | |
| Latency | |
| RF Power | |
| Wi-Fi | |
| Bluetooth | |
| Mobile App Compatible | |
| Cellular Support |
Format Support
| Video Format | |
| Audio Format | |
| Timecode Support |
Power
| Input Power | |
| Battery | |
| Power Consumption |
Mounting
| Tripod/Accessory Mounting |
General
| Status Display | |
| Environmental Resistance | |
| Operating Conditions | |
| Material of Construction | |
| Dimensions | |
| Weight |
Videos
Teradek Bolt 6 Overview and Features
