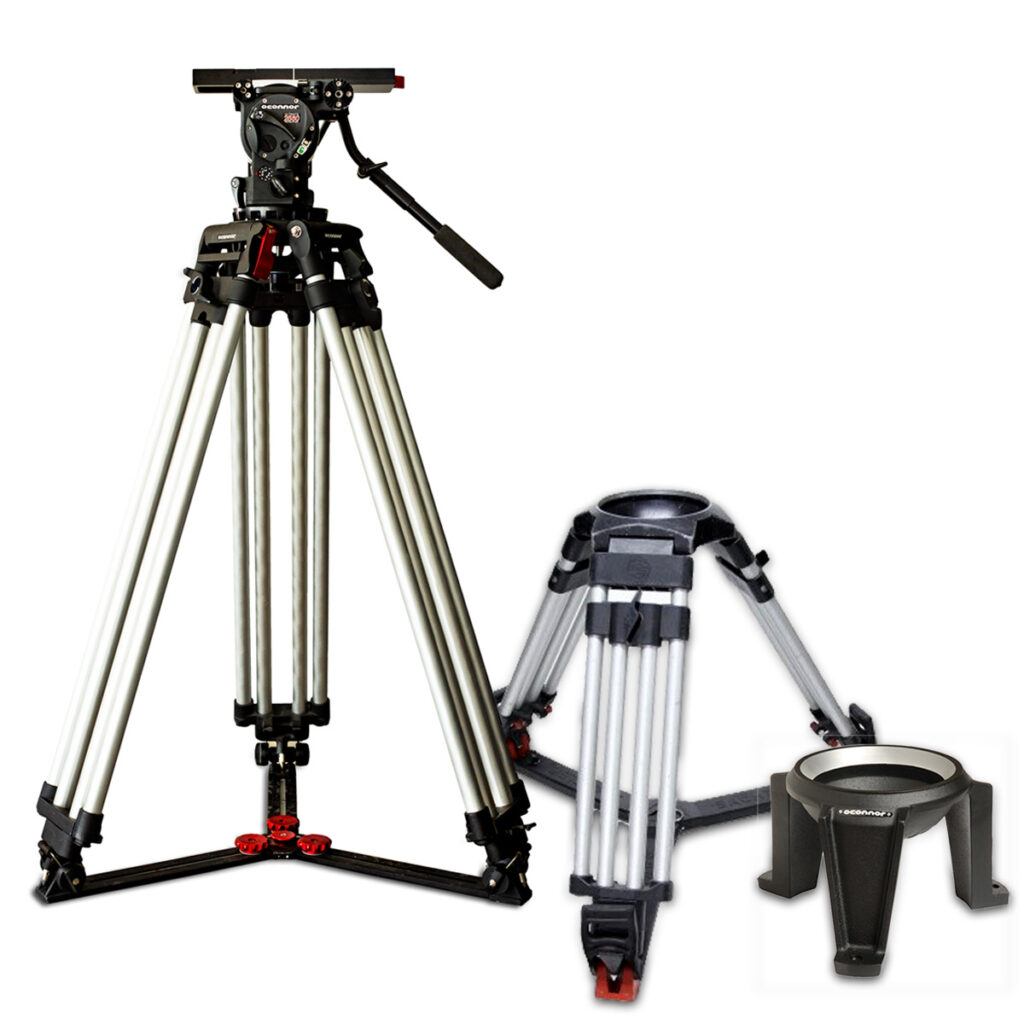

Tripods Kit (Baby + Medium + Big)

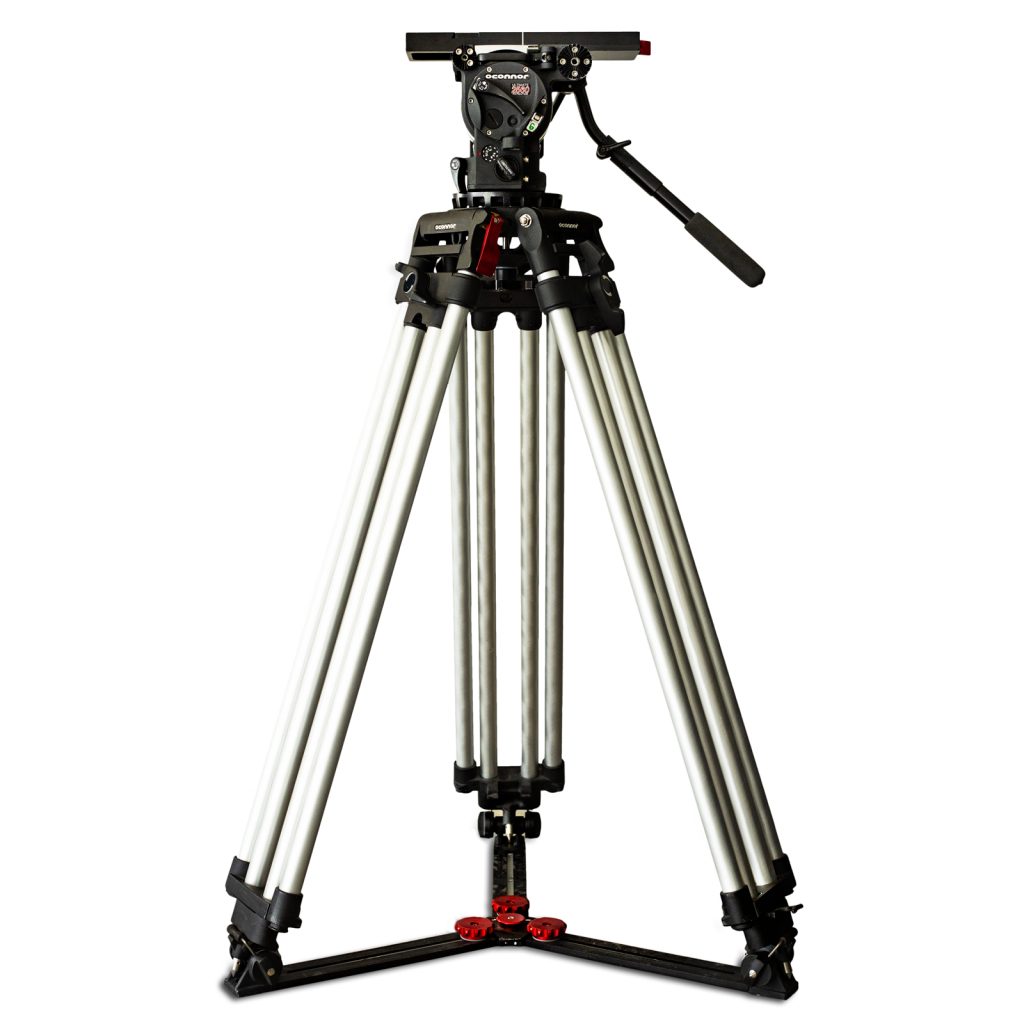

Ultimate 2560 Fluid Head Overview

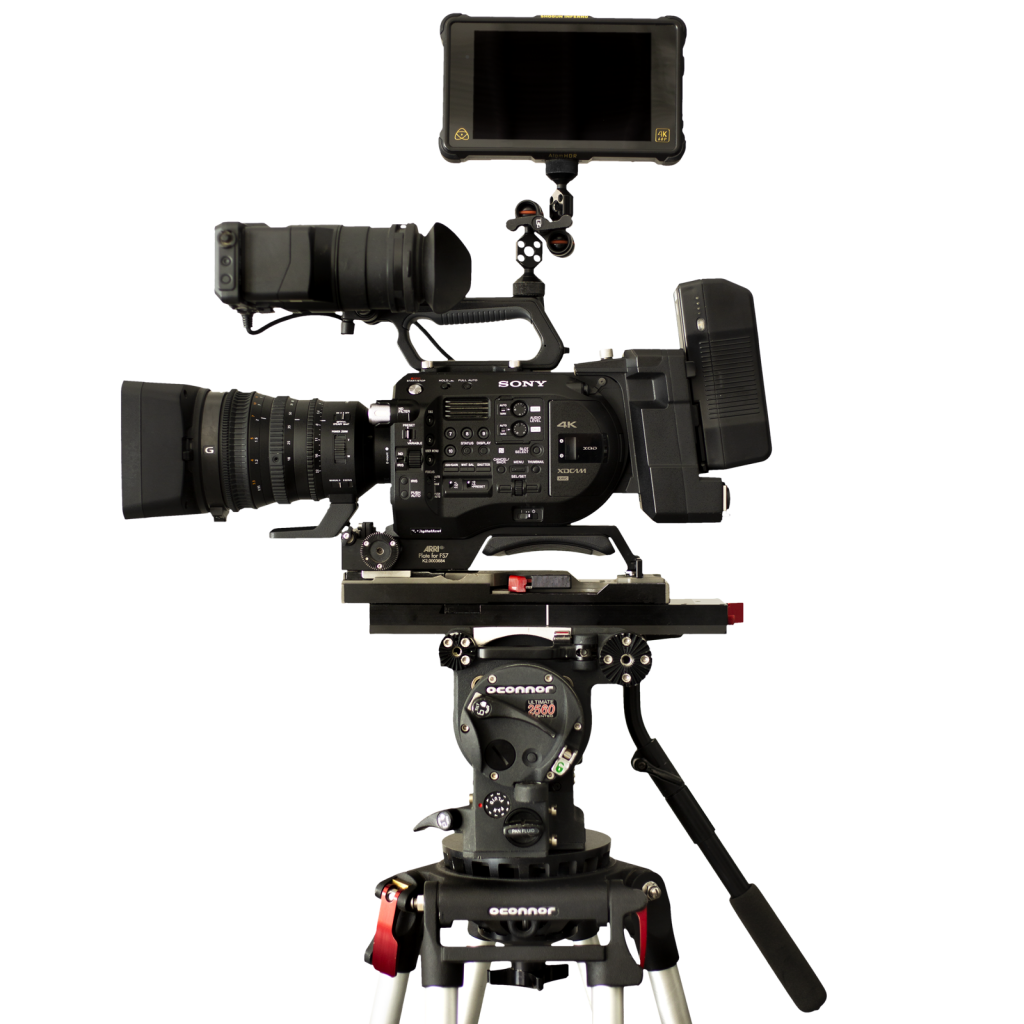

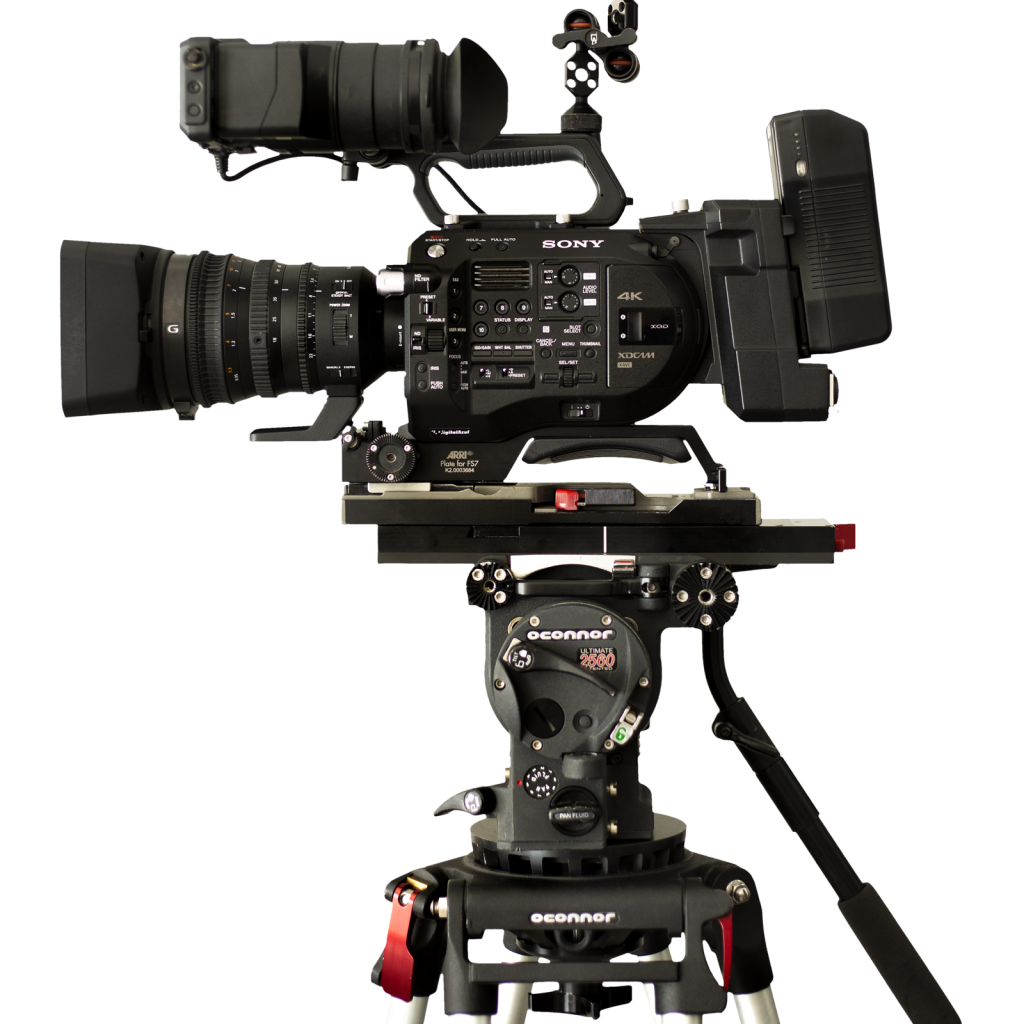

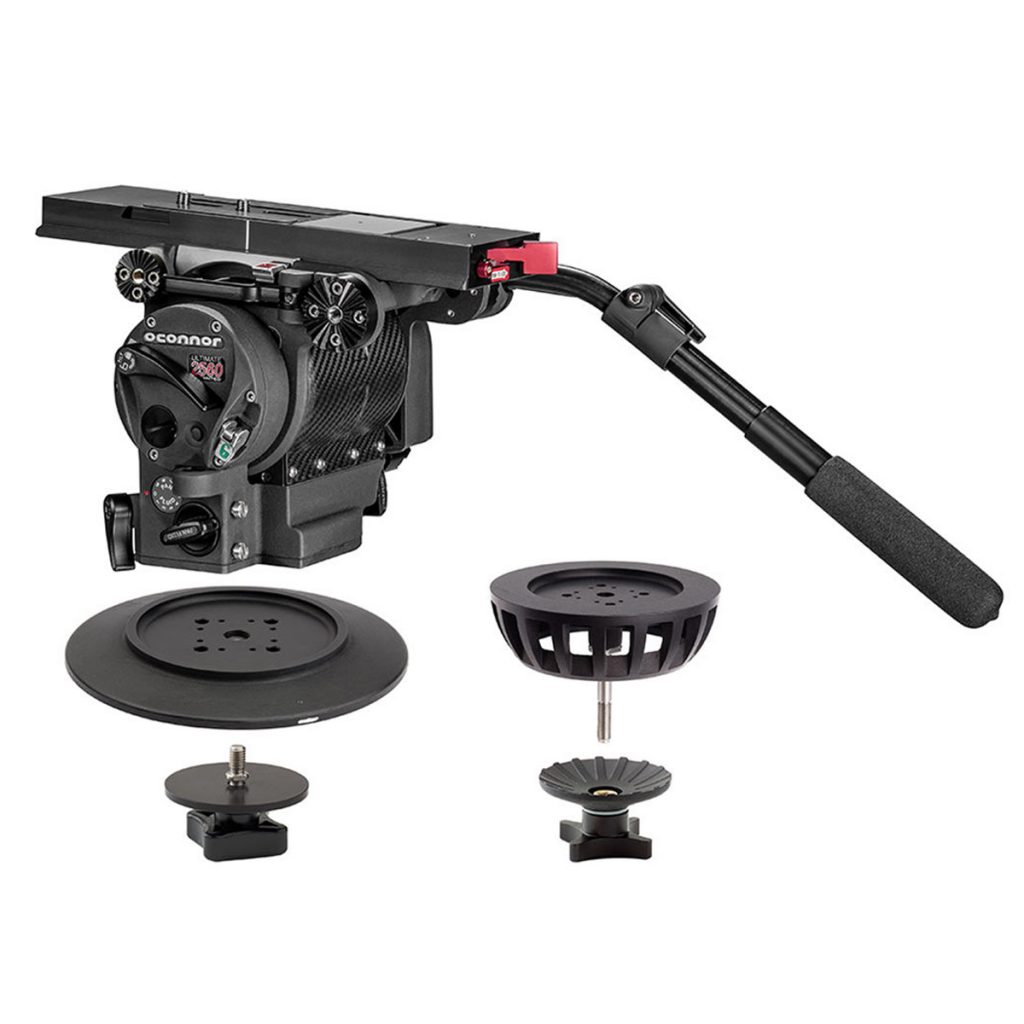

The Ultimate 2560 Fluid Head from OConnor is designed for use with the current crop of digital cinema cameras. Weighing less than 18 pounds, 2560 is capable of supporting camera payloads up to 37.7 Kg (83 pounds) at a 4″ center of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The head comes packaged with both a Mitchell base and a 150mm ball base adapters with tie-downs for expanded tripod compatibility. It also comes with a large Euro-style quick release for rapid mounting and dismounting of large camera rigs, a pan handle, and a pan handle extension.

Crafted for cine-style shooting, the head design delivers cinema standard positioning of controls, including brakes and rosettes, for easy and intuitive use. The 2560 fluid head also features OConnor’s patented sinusoidal counterbalance system for accurate balance at any point in the tilt range. In combination with the step-less, smooth pan and tilt fluid drag, the 2560 delivers control and stability for digital cinema shooters.

 Key Features

• Supports up to 37.7 Kg (83 pounds) at a 4″ center of gravity above the platform
• Magnesium frame and carbon fiber cover keeps weight under 18 lb
• Cinema standard positioning of controls, including brakes and rosettes
• Sinusoidal counterbalance system
• Stepless pan and tilt fluid drag

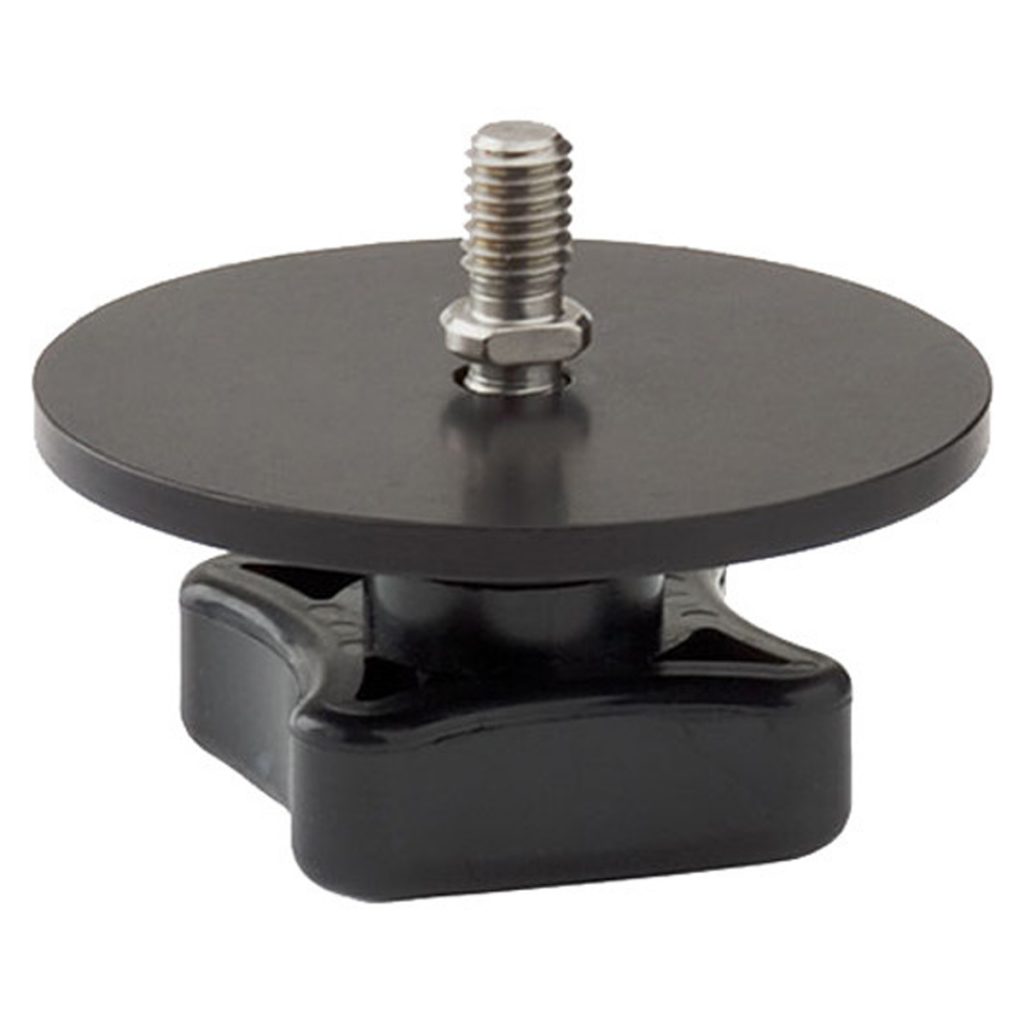

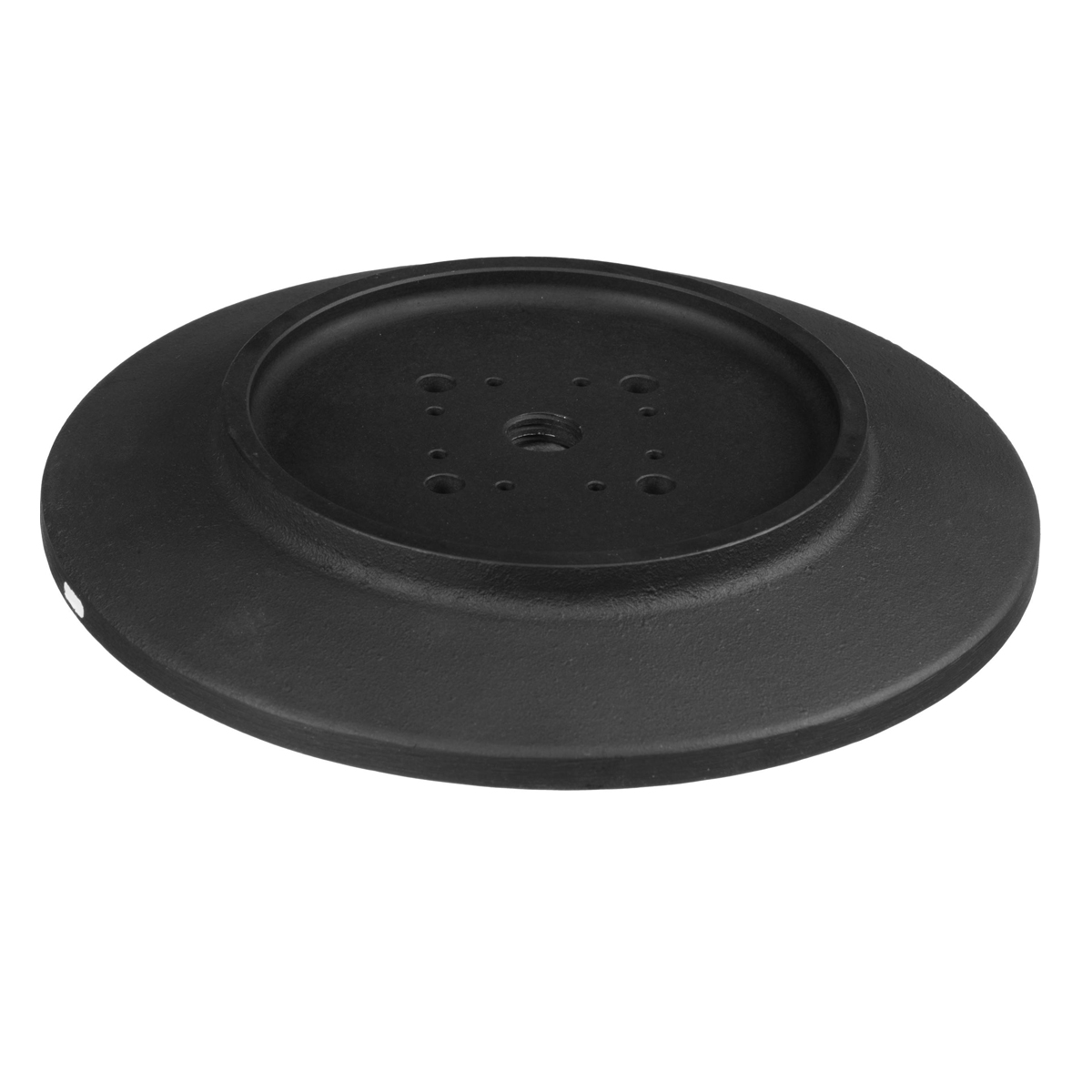

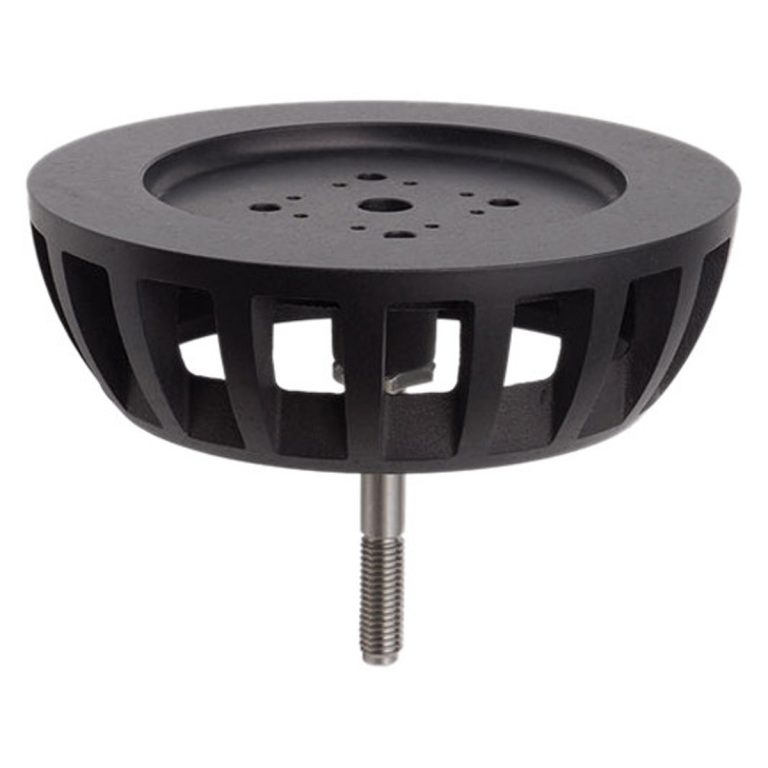

• Mitchell base and 150mm ball base adapter with tiedowns
• Euro-style quick release

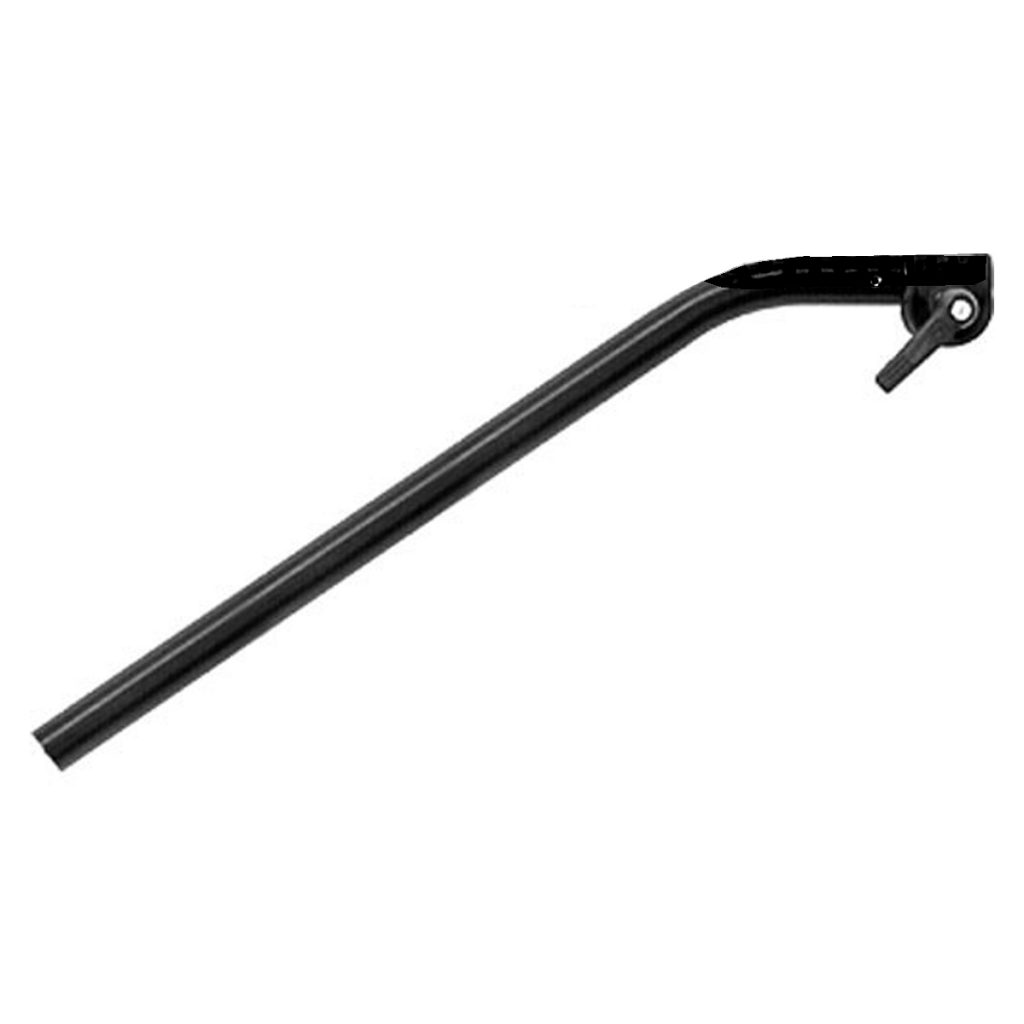

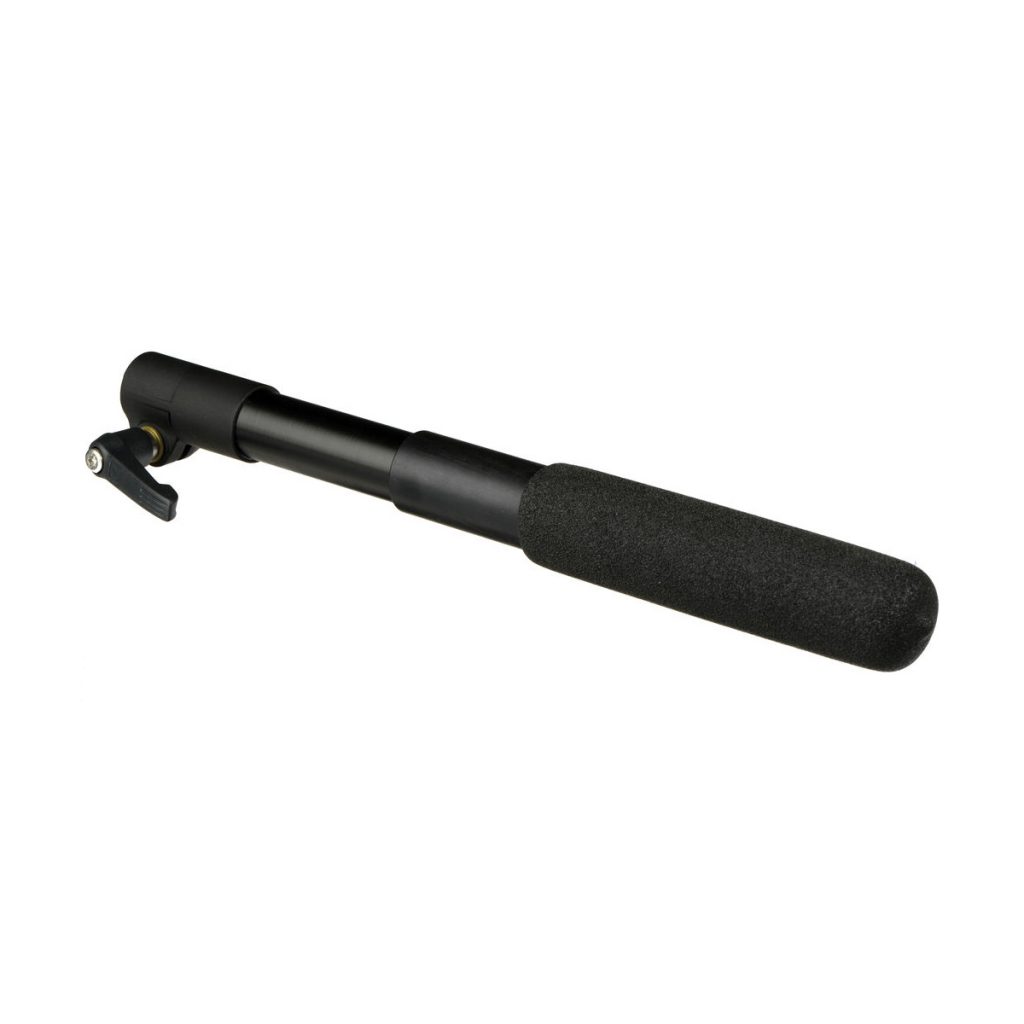

• Pan handle with pan handle extension

Load Capacity

• 83 lb / 37.7 kg at CoG 4″ / 10.2 cm
• 65 lb / 29.5 kg at CoG 6″ / 15.2 cm
• 53 lb / 24.1 kg at CoG 8″ / 20.3 cm

Tripod O’Connor Cine HD Overview

It is not uncommon to encounter a barrage of exotic materials when perusing high-end support systems, but you’ll find no such thing when you investigate the OConnor C12210003 Cine HD Tripod. Based on time-proven aluminum alloy metallurgy, there will be no surprises, and it requires no special accommodations. The single-stage design and die-cast spider ensure maximum rigidity for head and camera loads up to 309 lbs (140 kg), and the rotary stage clamps provide tool-free temperature-independent leg fixing. Concentrate on pressing production issues and forget about reinventing the wheel- your camera is safely suspended above the fray, and protected by the unbeatable OConnor 5-year parts and labor warranty.

• Single stage design for maximum rigidity
• Die-cast alloy spider/receiver top stage
• Rotary stage clamps are temperature-independent
• Dual leg spikes for high and low angles

It is not uncommon to encounter a barrage of exotic materials when perusing high-end support systems, but you’ll find no such thing when you investigate the OConnor C12210003 Cine HD Tripod. Based on time-proven aluminum alloy metallurgy, there will be no surprises, and it requires no special accommodations. The single-stage design and die-cast spider ensure maximum rigidity for head and camera loads up to 309 lbs (140 kg), and the rotary stage clamps provide tool-free temperature-independent leg fixing. Concentrate on pressing production issues and forget about reinventing the wheel- your camera is safely suspended above the fray, and protected by the unbeatable OConnor 5-year parts and labor warranty.

• Single stage design for maximum rigidity
• Die-cast alloy spider/receiver top stage
• Rotary stage clamps are temperature-independent
• Dual leg spikes for high and low angles

O’Connor Cine HD

The OConnor High Hat with 150 mm Bowl allows you to mount your 150 mm ball base tripod head in locations a conventional tripod can’t manage and still use the tripod head’s pan and tilt functions. The pre-drilled mounting holes make it easy to attach the high hat to structures for long-term projects.

High hats are often mounted to a platform such as a wood board or metal plate, this allows you to quickly, securely yet temporarily attached it to various surfaces, such as ladders when capturing high angle shots. For low angle shots, the platform the high hat is attached to is usually weighed down with sand bags, providing increased stability during the shot.
