Reference:
17035
Categories:

Kit de Tripés (Base de Chão + Médio + Grande)

175.00 + IVA /dia

Conjunto de 3 tripés (O’Connor, Sachtler) com diferentes dimensões para se adaptarem à sua produção mais exigente, com suporte até 37 Kg.

Artigos incluídos neste aluguer

  • 1x Cabeça de Tripé O’Connor Ultimate 2560 Fluid Head
  • 1x Tripé O’Connor Cine HD
  • 1x Sachtler Tripod DA 150 Medium
  • 1x HIHAT 150 – O’Connor

Alugar este artigo

As datas indicadas deverão ser as datas de utilização do equipamento, não contando com as datas de levantamento e de entrega. Condições especiais para alugueres de longa duração. Contacte-nos

Informação Adicional

Ultimate 2560 Fluid Head Overview

The Ultimate 2560 Fluid Head from OConnor is designed for use with the current crop of digital cinema cameras. Weighing less than 18 pounds, 2560 is capable of supporting camera payloads up to 37.7 Kg (83 pounds) at a 4″ center of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The head comes packaged with both a Mitchell base and a 150mm ball base adapters with tie-downs for expanded tripod compatibility. It also comes with a large Euro-style quick release for rapid mounting and dismounting of large camera rigs, a pan handle, and a pan handle extension.

Crafted for cine-style shooting, the head design delivers cinema standard positioning of controls, including brakes and rosettes, for easy and intuitive use. The 2560 fluid head also features OConnor’s patented sinusoidal counterbalance system for accurate balance at any point in the tilt range. In combination with the step-less, smooth pan and tilt fluid drag, the 2560 delivers control and stability for digital cinema shooters.

 Key Features

  • Supports up to 37.7 Kg (83 pounds) at a 4″ center of gravity above the platform
  • Magnesium frame and carbon fiber cover keeps weight under 18 lb
  • Cinema standard positioning of controls, including brakes and rosettes
  • Sinusoidal counterbalance system
  • Stepless pan and tilt fluid drag
  • Mitchell base and 150mm ball base adapter with tiedowns
  • Euro-style quick release
  • Pan handle with pan handle extension

Load Capacity

  • 83 lb / 37.7 kg at CoG 4″ / 10.2 cm
  • 65 lb / 29.5 kg at CoG 6″ / 15.2 cm
  • 53 lb / 24.1 kg at CoG 8″ / 20.3 cm

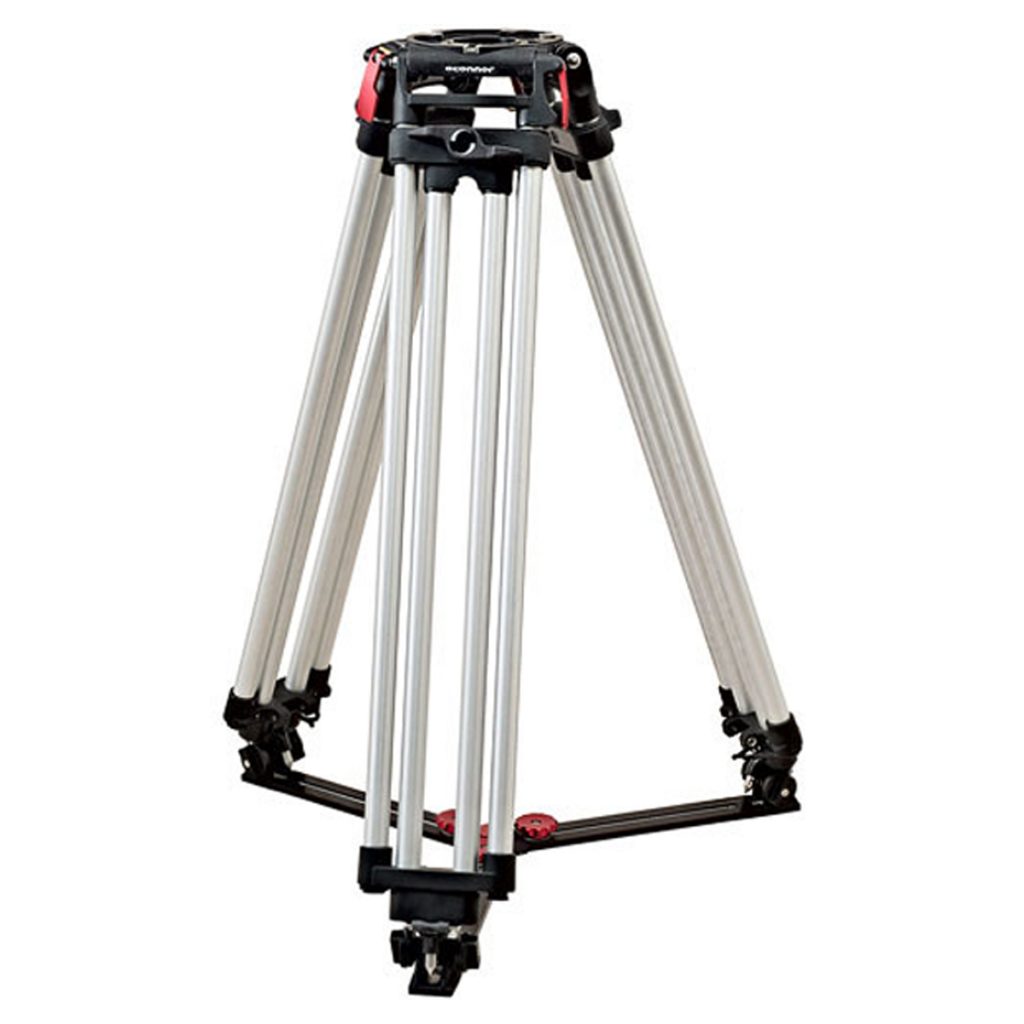

Tripod O’Connor Cine HD Overview

It is not uncommon to encounter a barrage of exotic materials when perusing high-end support systems, but you’ll find no such thing when you investigate the OConnor C12210003 Cine HD Tripod. Based on time-proven aluminum alloy metallurgy, there will be no surprises, and it requires no special accommodations. The single-stage design and die-cast spider ensure maximum rigidity for head and camera loads up to 309 lbs (140 kg), and the rotary stage clamps provide tool-free temperature-independent leg fixing. Concentrate on pressing production issues and forget about reinventing the wheel- your camera is safely suspended above the fray, and protected by the unbeatable OConnor 5-year parts and labor warranty.

  • Single stage design for maximum rigidity
  • Die-cast alloy spider/receiver top stage
  • Rotary stage clamps are temperature-independent
  • Dual leg spikes for high and low angles
Camera Plate
Camera Plate Features Sliding Balance Plate
Camera Plate Type OConnor 2575-120
Tripod Platform
Base Mount 150 mm Half Ball
Mitchell Flat Base
Pan & Tilt
Drag Control 9-Step
Vertical Tilt +90° to -90°
Physical
Load Capacity 83 lb / 37.7 kg at CoG 4″ / 10.2 cm
65 lb / 29.5 kg at CoG 6″ / 15.2 cm
53 lb / 24.1 kg at CoG 8″ / 20.3 cm
Counter Balance Continuous
Dimensions 8 x 11.3 x 7.5″ / 20.3 x 28.7 x 19.1 cm
Weight 16.2 lb / 7.3 kg

It is not uncommon to encounter a barrage of exotic materials when perusing high-end support systems, but you’ll find no such thing when you investigate the OConnor C12210003 Cine HD Tripod. Based on time-proven aluminum alloy metallurgy, there will be no surprises, and it requires no special accommodations. The single-stage design and die-cast spider ensure maximum rigidity for head and camera loads up to 309 lbs (140 kg), and the rotary stage clamps provide tool-free temperature-independent leg fixing. Concentrate on pressing production issues and forget about reinventing the wheel- your camera is safely suspended above the fray, and protected by the unbeatable OConnor 5-year parts and labor warranty.

  • Single stage design for maximum rigidity
  • Die-cast alloy spider/receiver top stage
  • Rotary stage clamps are temperature-independent
  • Dual leg spikes for high and low angles

O’Connor Cine HD

General
Head Mount Type 150 mm Bowl
Load Capacity 309 lb / 140 kg
Maximum Working Height 69.2″ / 175.8 cm
Minimum Working Height 33.6″ / 85.3 cm
Folded Length 40.4″ / 103.0 cm
Materials Aluminum
Weight 29.3 lb / 13.3 kg
Legs
Leg Lock Type Rotating Locking Lever
Independent Leg Spread Yes
Leg Sections 2
Feet Features Spiked

The DA-150 M one stage dural aluminum EFP tripod, features a 150mm / 6″ bowl, tube diameter of 22mm (0.87″) and is fitted with the Sachtler rotary clamping system. With a load capacity of 110 lb, it’s especially suited for electronic field production.

Dural aluminum construction with 22mm (0.87″) tube diameter
150mm / 6″ bowl base
Single extension design
Rotary clamping system
Maximum height of 31.5-inch
Supports up to 50 Kg (110 lb).
Material Aluminum
Load Capacity 50 Kg / 110 lb
Bowl Diameter/Thread 150mm 6″ Half Bowl
Minimum Height 8.3″
Maximum Height 31.5″
Leg Stages/Sections 1/2
Leg Lock Type Rotary Clamp Torque Lock
Center Brace/Mid-Level Spreader No
Spiked/Retractable Feet Spiked
Folded/Transport Length 22.4″
Weight 3,6 Kg / 8.0 lb

The OConnor High Hat with 150 mm Bowl allows you to mount your 150 mm ball base tripod head in locations a conventional tripod can’t manage and still use the tripod head’s pan and tilt functions. The pre-drilled mounting holes make it easy to attach the high hat to structures for long-term projects.

High hats are often mounted to a platform such as a wood board or metal plate, this allows you to quickly, securely yet temporarily attached it to various surfaces, such as ladders when capturing high angle shots. For low angle shots, the platform the high hat is attached to is usually weighed down with sand bags, providing increased stability during the shot.

Head Attachment Fitting 150 mm Bowl
Material of Construction Aluminum with a powder coated finish
Mountable Pre-drilled Holes
3 x 3/8″ non tappedNote: One hole in each of the high hats support feet
Height 5.75 ” (14.6 cm)

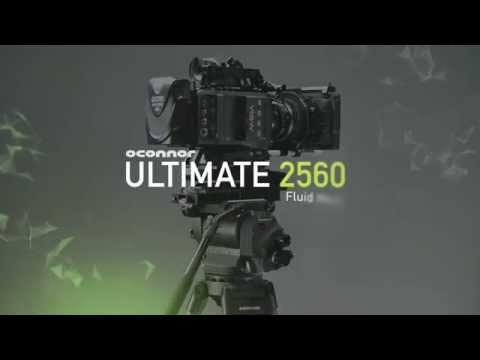

OConnor - Ultimate 2560 Fluid Head

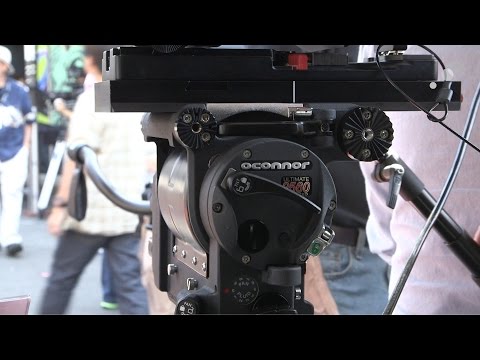

Cine Gear 2015: OConnor 2560 Ultimate Fluid Head

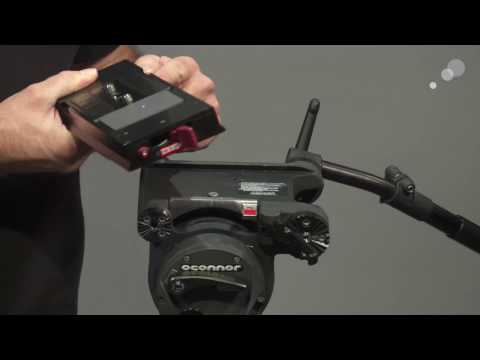

At the Bench: A Closer Look at the OConnor 2560 Fluid Head
