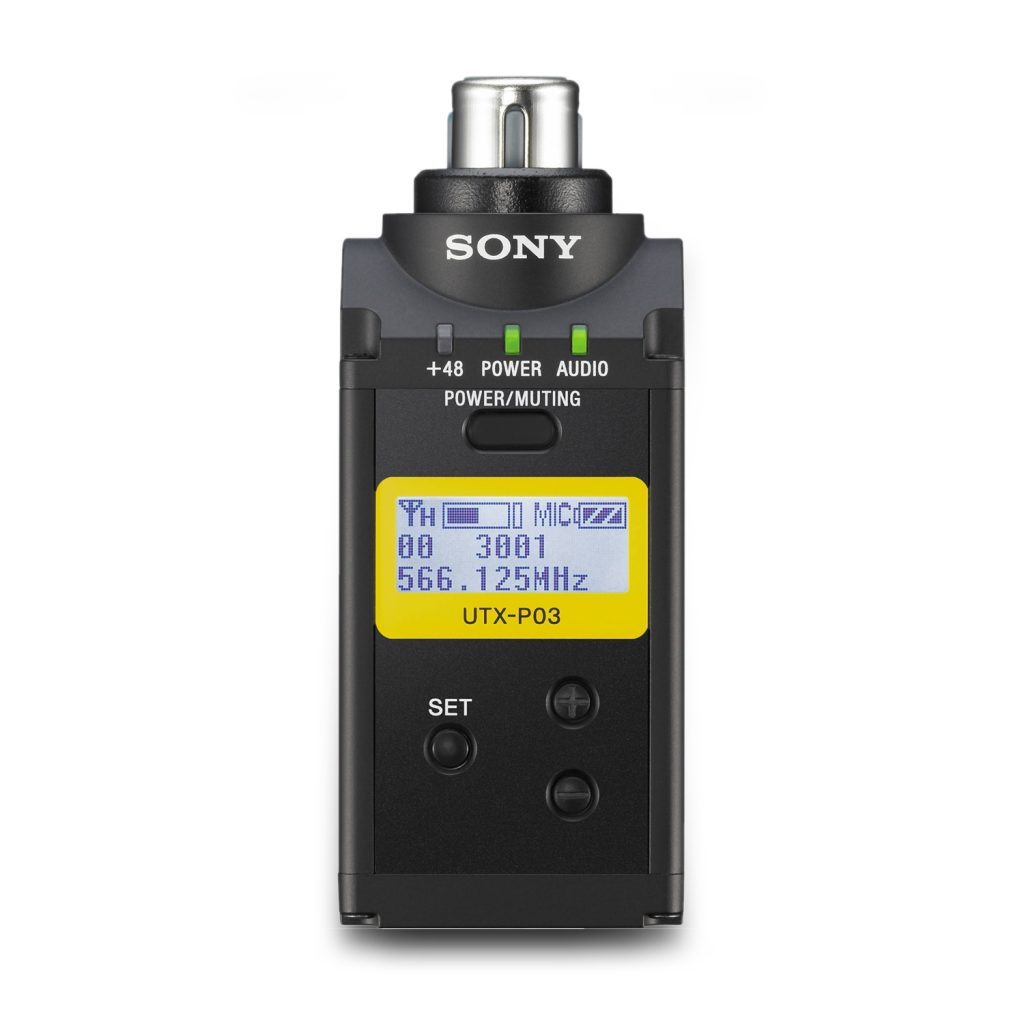

Cubo Emissor Microfone de Mão Sony UTX-P03

25.00 + IVA /dia

Digital Audio Processing for high-quality sound for ENG / EFP productions

The UTX-P03 XLR package offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from. Easy-to-use features include a large display, automatic channel setting function, micro USB connection for power supply and line input availability. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications

  • +48V Phantom Power
  • Digital Companding Circuitry
  • USB Charging and Power
  • Mic/Line Input Level Switch
  • Tone Squelch Suppression Circuitry
  • Simultaneous Multi-Channel Operation
  • UWP and WL-800 Series Compatibility

Alugar este artigo

As datas indicadas deverão ser as datas de utilização do equipamento, não contando com as datas de levantamento e de entrega. Condições especiais para alugueres de longa duração. Contacte-nos

Informação Adicional

The UTX-P03 Integrated Digital Wireless Plug-On Transmitter features an all-metal chassis, an easy to read LCD display, a wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between transmitter and receiver, a Mic/Line switchable input, +48V phantom power, and digital companding circuitry. The transmitter is suitable for a wide range of wireless applications such as ENG (Electronic News Gathering), documentary work, talk shows, conferences, and more.

The transmitter is referred to as integrated digital because it utilizes DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.

The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection. An LCD display provides channel AND frequency information, battery life, RF-input level, audio-output status and accumulated operating time.

For power, the transmitter operates on two AA batteries for up to six hours, or on 5 VDC of USB power over a USB micro B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge.

The transmitter features a mic- and line-level switch for standard wired microphone- or line-level sources. The plug-on transmitter also features selectable +48V of phantom power for connection to a condenser microphone. Selectable transmission output power provides a choice between 5mW output, which is suitable for simultaneous multi-channel operation, or 30mW output for long distance transmission. The transmitter comes with a soft case.

Digital Companding
Utilizes analog-to-digital and digital-to-analog converter stages so that the transmission signal can be digitally companded by the transmitter and digitally expanded by the receiver for improved audio transient response

Automatic Channel Scanning
Scans for available transmission channels and then syncs the transmitter to the receiver via infrared

Frequency Coverage
Provides up to 72 MHz of transmission bandwidth

UWP Series / WL-800 Series Compatibility
Enables cross-compatibility between the UWP-D transmitter with a UWP Series or WL-800 Series receiver or UWP Series or WL-800 Series transmitter with a UWP-D receiver

USB Power Options
Supports USB powering and USB charging of internal Ni-MH rechargeable batteries placed in the battery cartridge

Phantom Power on Plug-On Transmitter
Provides selectable +48V of phantom power for use with condenser microphones

UHF Phase Locked Loop (PLL) Synthesized Frequencies
Provides stable transmission and reception by generating a transmission frequency and locking the phase of the transmission signal to the incoming signal of the receiver

Tone Squelch Circuitry
Transmits a pilot-tone signal with the audio signal and only outputs the audio signal if the pilot tone is present to reduce RF interference from other sources

Mic and Line Input Switch
Enables switching between microphone- and line-level inputs

Simultaneous Multi-Channel Operation
Stores the most stable interference-free transmission frequencies to internal memory for rapid setup and switching between frequency groups

Selectable RF Output
The transmitter allows selection between 5mW output power and 30mW output. 5mW is suitable for indoor, simultaneous multi-channel operation while 30mW is intended for outdoor, long-range use

Visual Display
Features a comprehensive LED display providing channel and frequency information, battery life, total usage time and more

Improved All-Metal Construction
The transmitter features metal construction for durability

Type of System Camera-mountable UHF synthesized wireless plug-in system
RF Carrier Frequency Range 536 to 608 MHz
RF Bandwidth 72 MHz
Approx. Working Range Not Specified by Manufacturer
Transmitter
Type of Transmitter Crystal-controlled PLL synthesizer plug-on transmitter
Antenna Type Integral
Emission F3E
RF Power 30 mW / 5 mW
Type of Input Connector Mic/Line Switchable – 3-pin XLR female
Phantom Power +48 V
Reference Input Level Mic: -60 dBV (at 0 dB attenuator level)
Line: +4 dBu
Adjustment Range Mic input: 0 to 21 dB (in 3 dB steps)
Frequency Response 23 to 18,000 Hz (typical)
Signal to Noise Ratio 96 dB (max deviation, A-weighted)
Audio Delay Approximately 0.35 msec
Pilot Tone 32 kHz / 32.382 kHz / 32.768 kHz
Interchangeable Mic Heads Standard XLR type microphones
Display LCD
Power Requirements 3.0 VDC (with two AA-size alkaline LR6 batteries)
5.0 VDC (via USB micro-B)
Battery Type/Approx. Life Approximately 8 hours with Sony’s AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 131°F (-20 to 55°C)
Dimensions (W x H x D) 1.65 x 1.65 x 4.02″ (42 x 42 x 102 mm)
Weight Approximately 6.9 oz (197 g) including batteries
