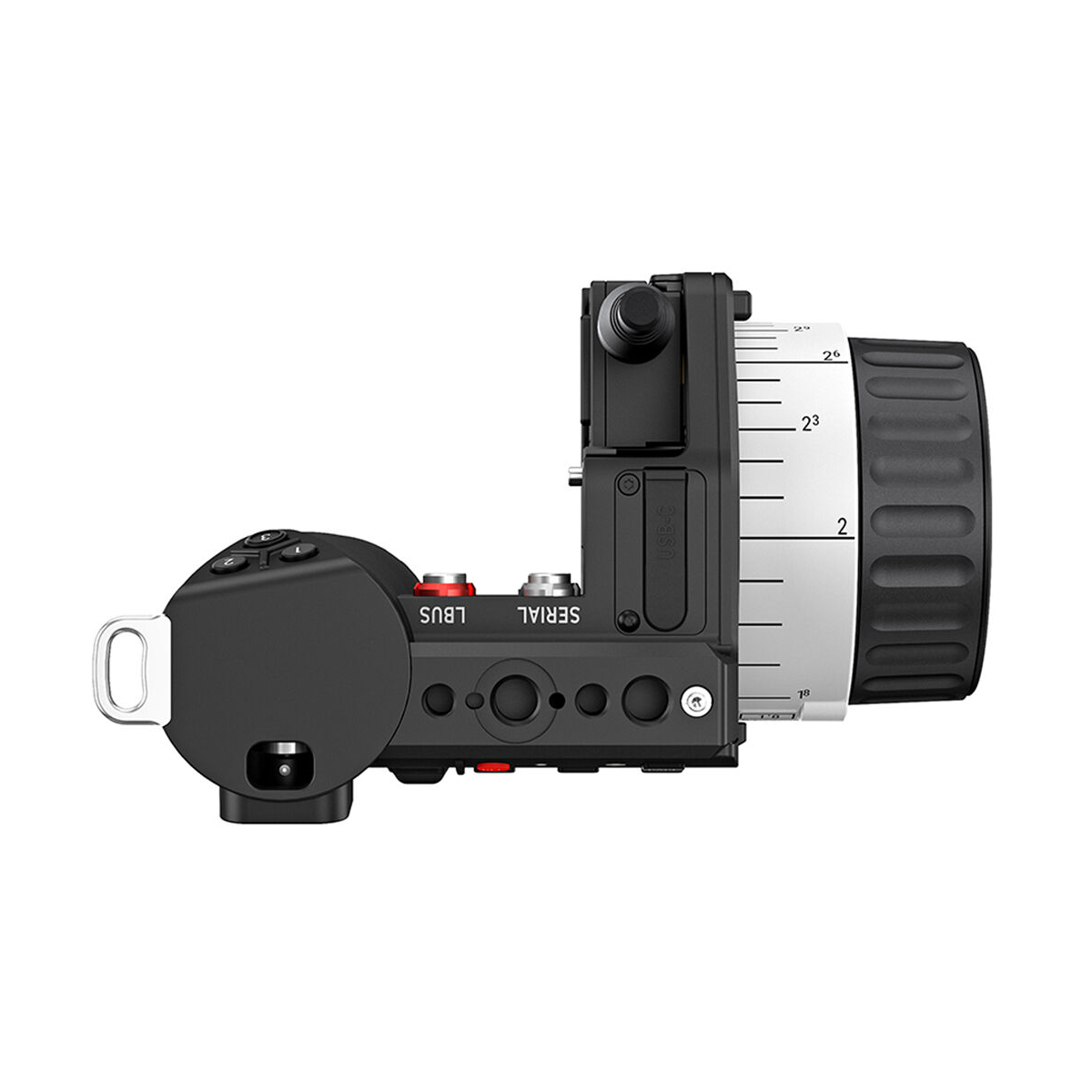

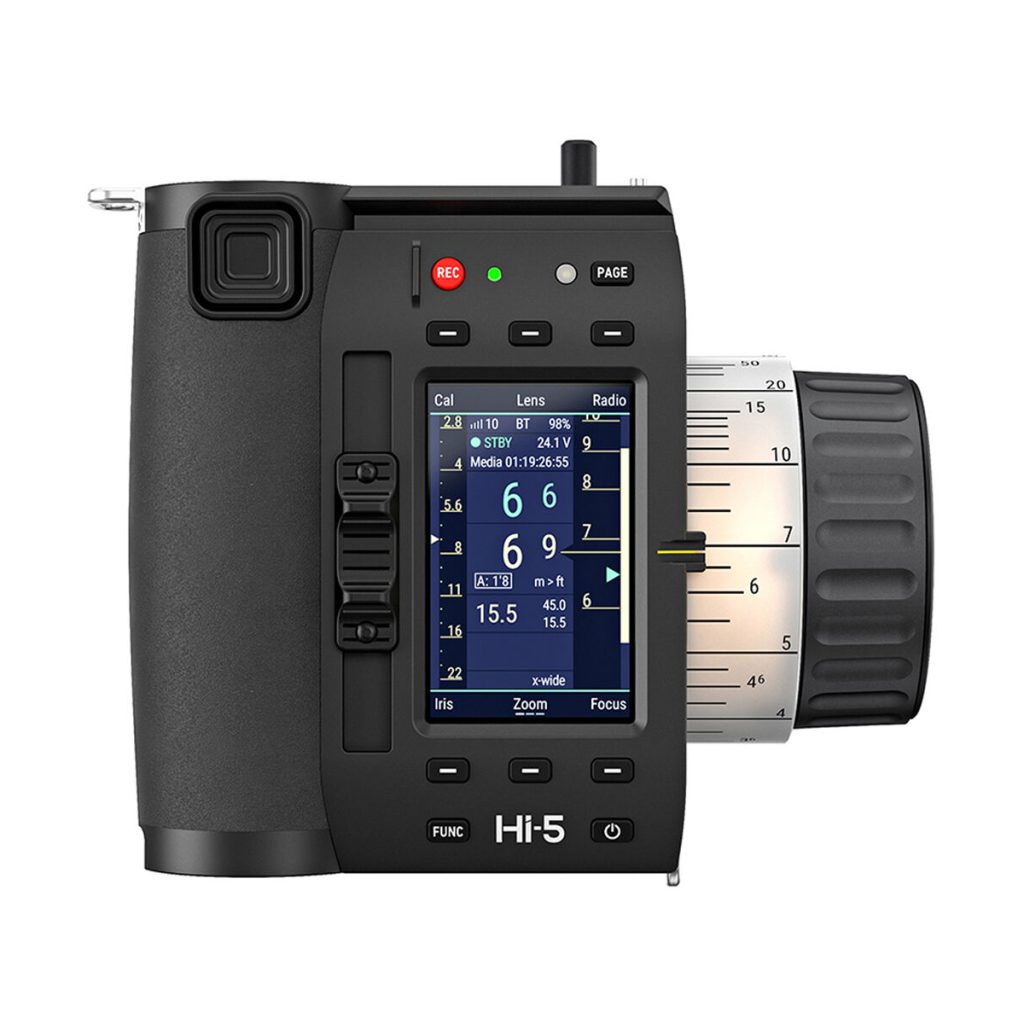

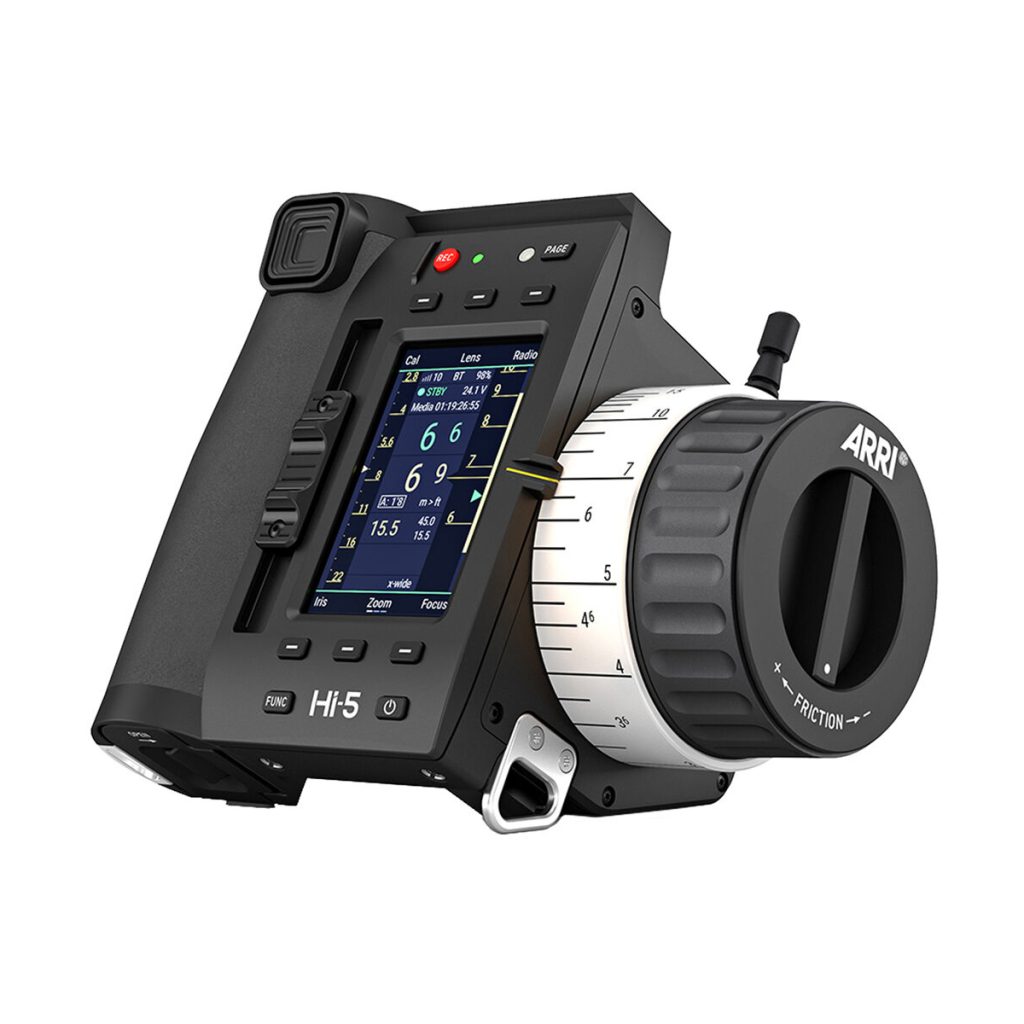

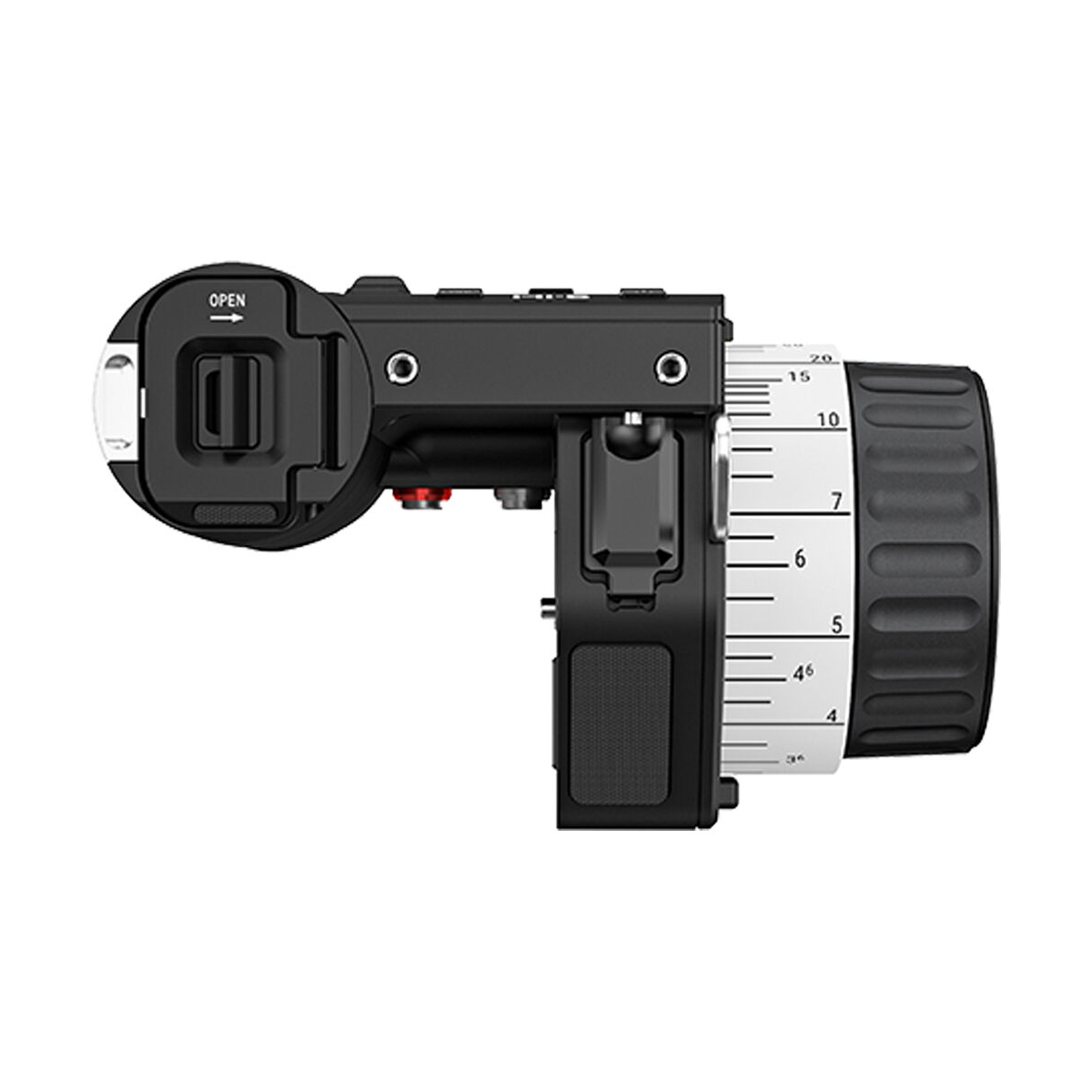

Descrição Geral (ARRI Hi-5 Hand Unit)

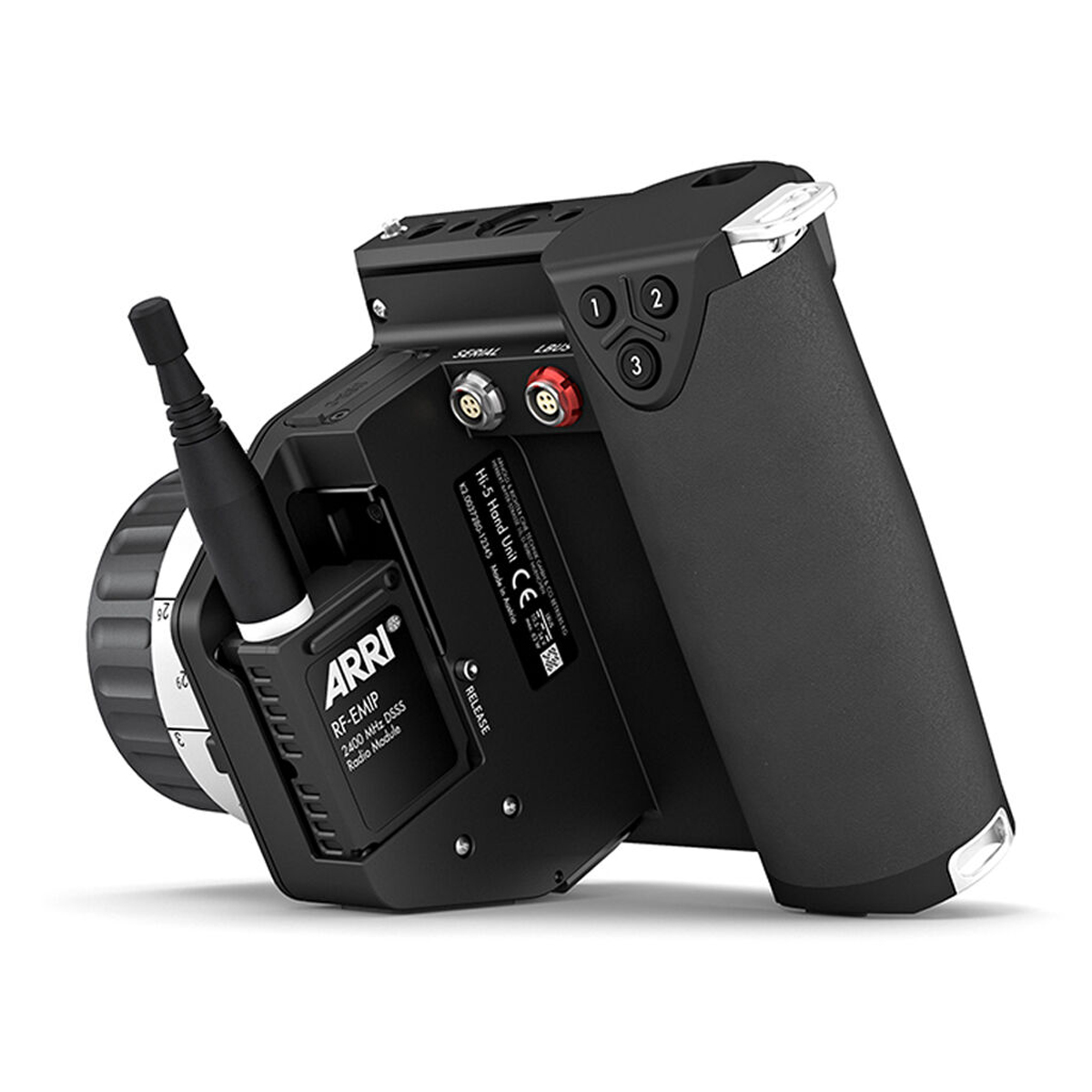

Features include hot-swapping battery support, optional radio modules for different regions, user-defined function buttons, pre-marked Smart focus rings, an integrated NATO rail, and a waterproof design to use in all-weather environments. Using the included Bluetooth dongle, the Hi-5 can be configured and updated using the ECS Sync app for iOS. It can also be used to update LBUS devices and configure the Hi-5. An optional radio module allows you to connect wirelessly with the RIA-1 radio interface adapter, it features 14 channels, and it is also backward compatible with white-coded radio EMIP modules, and there are radio module options for different regions.
The 4-pin LBUS ports allow you to hardwire the unit to your ARRI camera to control your lens functions, and you can purchase optional licenses to control cameras such as RED, Panavision, and Sony. The Hi-5 is also compatible with the cforce mini RF with the separately available RF-EMIP radio module. Other features include customizable focus knob operation, Focusbug Cine RT support, and compatibility with the one included and various optional pre-marked Smart focus rings with electronic detection, and it is powered using separately available LBP-3500 Li-Ion batteries.
Descrição Geral (ARRI cforce mini RF)

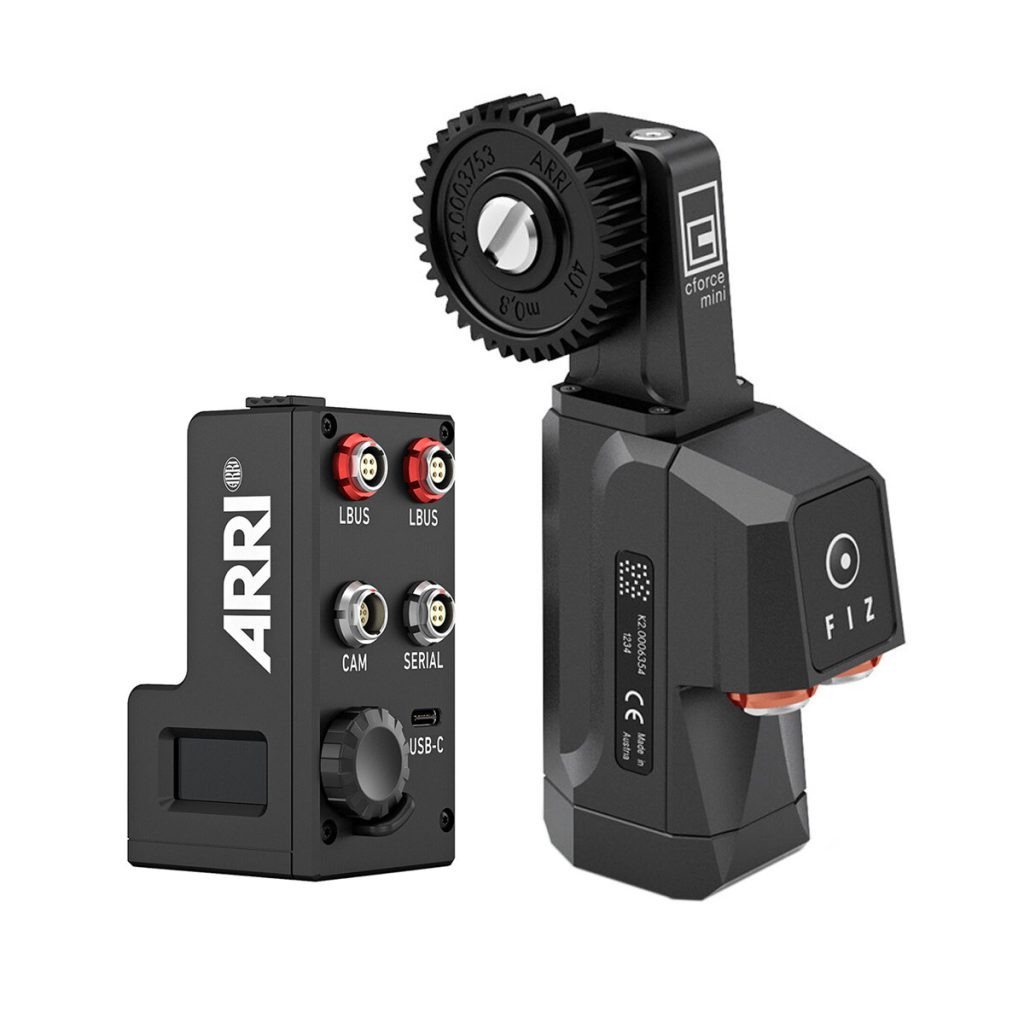

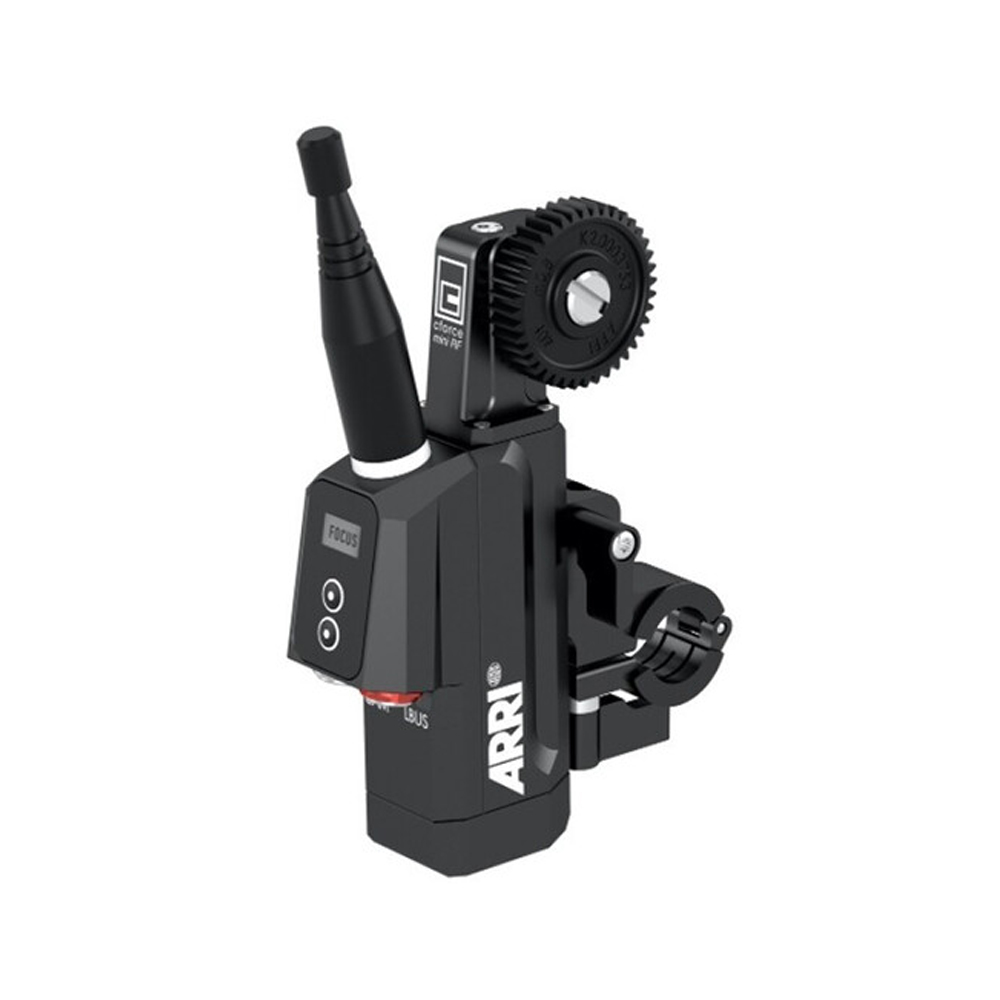

The ARRI cforce mini RF Basic Set 2 is a compact lens control motor set with an integrated white-coded RF radio module that eliminates the need for a separate receiver unit on your camera rig. This cforce mini Basic Set is comprised of one motor, an 08.MOD 40-tooth gear, a 2400 MHz antenna, and a rod clamp. Suited for gimbal, stabilizer, handheld, and drone setups, the cforce mini RF motor can be daisy-chained with classic cforce motors and ARRI LBUS components. Power and run/stop control are supplied for ARRI and select third-party cameras through the motor’s CAM connector.
- Link up to three motors for a complete FIZ lens control system
- Pair with up to three hand units for setups where splitting FIZ control is preferred
- Daisy-chainable with classic cforce motors and ARRI LBUS components
- Lens metadata support for focus mapping
- Abie to display data on a WCU-4 hand unit
- Integrated white ARRI radio module
- Supports OCU-1 override function
- Compatible with WCU-4, SXU-1, and legacy, white-coded ARRI hand units
Supports up to 4921′ wireless range
Descrição Geral (ARRI cforce Plus)
ARRI cforce Plus Overview

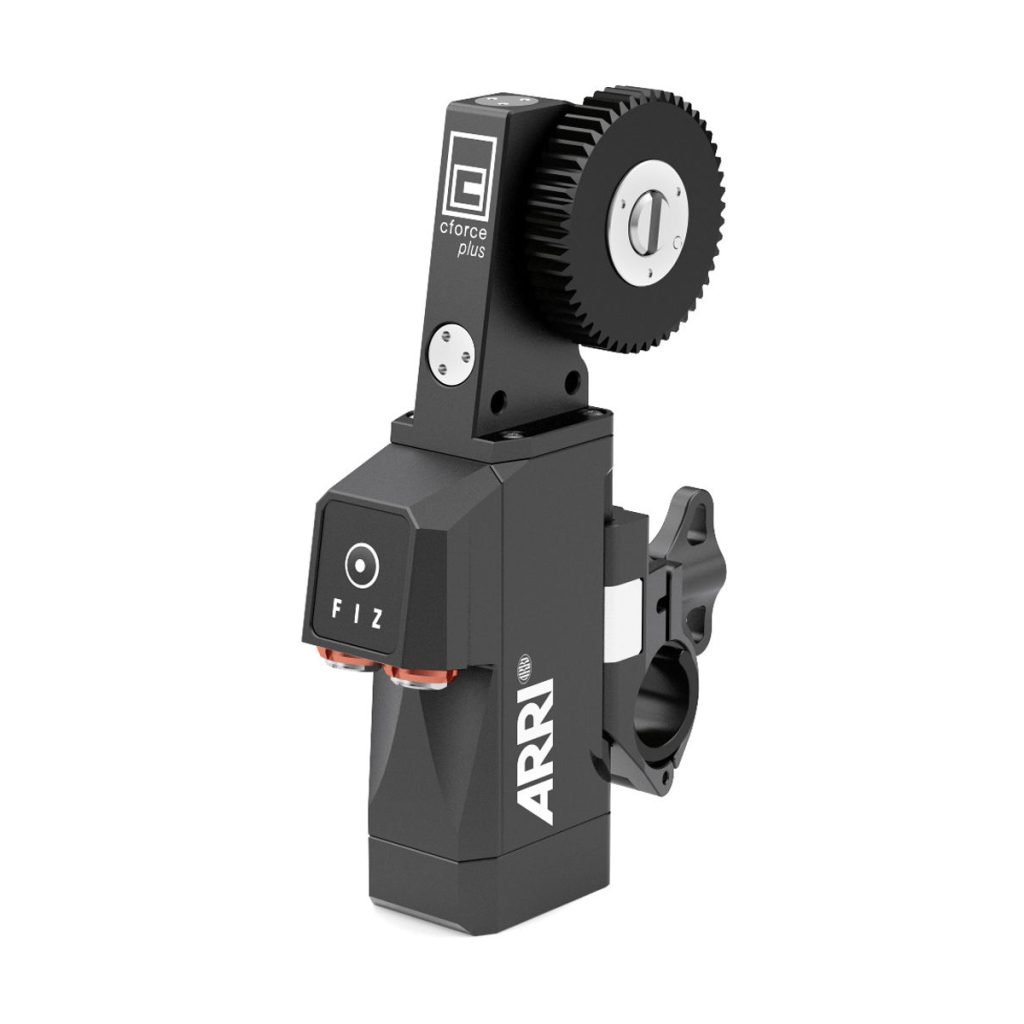

The ARRI cforce Plus Motor Basic Set includes a robust lens-control motor, an 0.8-mod, 60-tooth gear, and a 19/15mm rod-mounting bracket. Strong enough to smoothly drive any standard lens, the cforce Plus works directly with the ALEXA Mini camera (with PL LBUS lens mount). It may also be used with any other ARRI and third-party cameras when paired with the ARRI AMC-1 Active Motor Controller.
ARRI‘s cforce Plus Motor is a strong, LBUS-connected motor used to remotely control your lens’s focus, iris, or zoom function. With more torque than its cforce Mini cousin, the cforce Plus has the power to control any standard lens quickly and smoothly. Directly compatible with ARRI ALEXA Mini cameras and cmotion units, the cforce Plus Motor can be paired with an AMC-1 or UMC-4 controller when working with other ARRI or third-party cameras. Up to three cforce Plus Motors may be daisy-chained together, saving the space and weight of individual controllers in your camera rig.
The cforce Plus Motor offers compatibility with the same mounting options as the ARRI CLM-4 motor, including a Hill Bracket and standard rod mounts. The cforce Plus weighs about 11 ounces with a gear and bracket (available separately). This basic motor unit requires a separately available gear, cable, and bracket.
- Strong lens-control motor works directly with ARRI ALEXA Mini cameras and cmotion units via its LBUS interface
- Compatible with other ARRI and third-party cameras when used with the ARRI AMC-1 or WCU-4 controller
- Provides sufficient torque for smooth, quick control of standard lenses
- Up to three motors may be daisy-chained together via their LBUS connectors
- Works with CLM-4 mounting options including a Hill bracket, and standard rod mounts (available separately)
The ergonomic 19/15mm cforce Plus Clamp Console from ARRI is designed to offer easier rod mounting and removal of several ARRI lens components. This clamp is compatible with the cforce Plus Motor Control Unit. The clamp design offsets the thumb levers for easier handling, and it secures using two thumb levers. This 19mm clamp can be used with the included 15mm rod adapter insert for mounting on different rod systems.
Descrição Geral (ARRI cforce mini)
ARRI‘s cforce Mini Motor is an ultracompact, lightweight motor used to remotely control your lens’ focus, iris, or zoom function. The cforce Mini Motor weighs just over six ounces with a gear and bracket (available separately). Directly compatible with ARRI ALEXA Mini cameras and cmotion units, the cforce Mini Motor can be connected to an RIA-1 (Radio Interface Adapter) to work with any camera. Up to three cforce Mini Motors may be daisy-chained together, saving space and weight in your camera rig.
The cforce Mini Motor’s ultralight, compact form makes it suitable for gimbal, drone, and other lightweight camera rigs. This basic motor unit requires a separately available gear, cable, and bracket.
Compatibility
- Ultracompact lens-control motor works directly with ARRI ALEXA cameras.
- Connects to RIA-1 (Radio Interface Adapter) for use with any camera.
- Works with WCU-4 or SXU-1 and the ARRI AMIRA.
- Quick, versatile control for all standard cine-style lenses.
- Uses twin LBUS ports for daisy chaining up to three motors in a row.
The ergonomic cforce mini Clamp Console 2 from ARRI is designed to offer easier rod mounting and removal of several ARRI lens components. This clamp is compatible with the cforce mini, cforce mini RF, cmotion cpro, and CLM-5 motors, as well as the OCU-1 control unit. The clamp design offsets the thumb levers for easier handling, and a spring-loaded plunger provides a secure fit. This 19mm clamp can be used with the included 15mm rod adapter or the separately available 5/8″ bushing.
- cforce mini and cforce mini RF motors
- cmotion cpro and CLM-5 motors
- OCU-1 control unit
This Gear for CLM-5 or cforce mini from ARRI is designed for use with a CLM-5 or cforce mini lens control motor. This 0.8-mod, 32-pitch, 40-tooth gear is compatible with ARRI/Zeiss and Fujifilm focus, iris, and zoom gears. It will also drive the focus gear on Panavision lenses.
Including but not limited to:
ARRI/Zeiss focus, iris, and zoom gears
Fujifilm focus, iris, and zoom gears
Panavision focus gears
Especificações Técnicas
ARRI Hi-5
| Supply Voltage |
LBUS Interface: 10.5 to 34 V
Battery: 7.4 V |
| Power Consumption |
Without Radio Module: 222 mA at 7.4 V
With RF-EMIP Module: 270 mAh at 7.4 V (Typical)
With RF-2400 Module: 370 mAh at 7.4 V (Typical)
With RF-900 Module at 100 mW: 330 mAh at 7.4 V (Typical)
With RF-900 Module at 1 W: 480 mAh at 7.4 V (Typical) |
| Connectors |
1 x 4-Pin LBUS
1 x 4-Pin Serial
1 x 10-Pin IRISO Radio Adapter
1 x USB Type-A
1 x USB Type-C |
| Display |
3″ TFT LCD |
| Operating Temperature |
-4 to 122°F / -20 to 50°C |
| Dimensions |
Without Antenna:
6.7 x 5.6 x 4.1″ / 169 x 142.5 x 104.4 mm |
| Weight |
With Bluetooth Dongle and Blank Ring:
1.8 lb / 830 g |
ARRI Cforce Mini RF
Power
| Power Source |
Camera |
| DC Input Power |
12 to 34 VDC |
| Operating Current |
6 A |
Environmental
| Certifications |
CE, FCC-A, IC, Kcc
*as per Manufacturer |
Physical
| Mounting |
1 x 19mm Rod Clamp
1 x 15mm Rod Clam with Reducer |
| Dimensions |
5.6 x 3.8 x 1.4″ / 142 x 96 x 36 mm (Including Antenna) |
| Weight |
5.4 oz / 153 g (Including Gear & Clamp) |
ARRI Cforce Plus
| Connector |
2 x 4-pin LBUS |
| Torque |
0.7 Nm constant
1 Nm maximum peak (at motor axis) |
| Speed |
210 teeth per second (60-tooth gear, 3.5 R/s) |
| Supply Voltage |
12 to 34 VDC |
| Maximum Power Consumption |
32 W (peak) |
| Operating Temperature |
-4 to 122°F (-20 to 50°C) |
| Dimensions |
Without Gear & Bracket:
5.1 x 3.5 x 1.1″ (130 x 89.1 x 28.8 mm) |
| Weight |
With Gear & Bracket:
11.5 oz (325 g) |
ARRI 19/15mm Cforce Plus Clamp Console
Mounting
| Clamping Range |
0.7″ / 19 mm
0.6″ / 15 mm |
ARRI Cforce Mini
Wireless
| Mobile App Compatible |
No
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Source |
Camera |
| DC Input Power |
12 to 34 VDC |
| Power Consumption |
20 W (Maximum) |
Environmental
| Environmental Protection |
None |
| Certifications |
EU, CE, FCC, ICES, Kcc
*as per Manufacturer |
| Operating Temperature |
-4 to 122°F / -20 to 50°C |
Physical
| Color |
Black |
| Dimensions |
3.9 x 2.4 x 1.1″ / 97.9 x 61.9 x 28.8 mm |
| Weight |
6.1 oz / 173 g (Basic Set) |
ARRI Cforce Mini Clamp Console 2
Physical
| Rod Compatibility |
15 mm, 19 mm |
| Material of Construction |
Aluminum |
ARRI Gear For CLM-5 Or Cforce Mini Motor (0.8-Mod, 32-Pitch, 40-Tooth)
Physical
| Gear Standard |
0.8 MOD / 32 Pitch (40 Teeth) |
