Mesa de Mistura Áudio Allen & Heath ZED 14
40.00€ + IVA /dia
Mesa de Mistura Áudio Allen & Heath ZED 14 (14 canais):
- USB Connection for Mac and PC
- 14 Input Channels
- 3-Band EQ Section
- Four AUX Sends
- Mono and Stereo Channels
Informação Adicional
Características

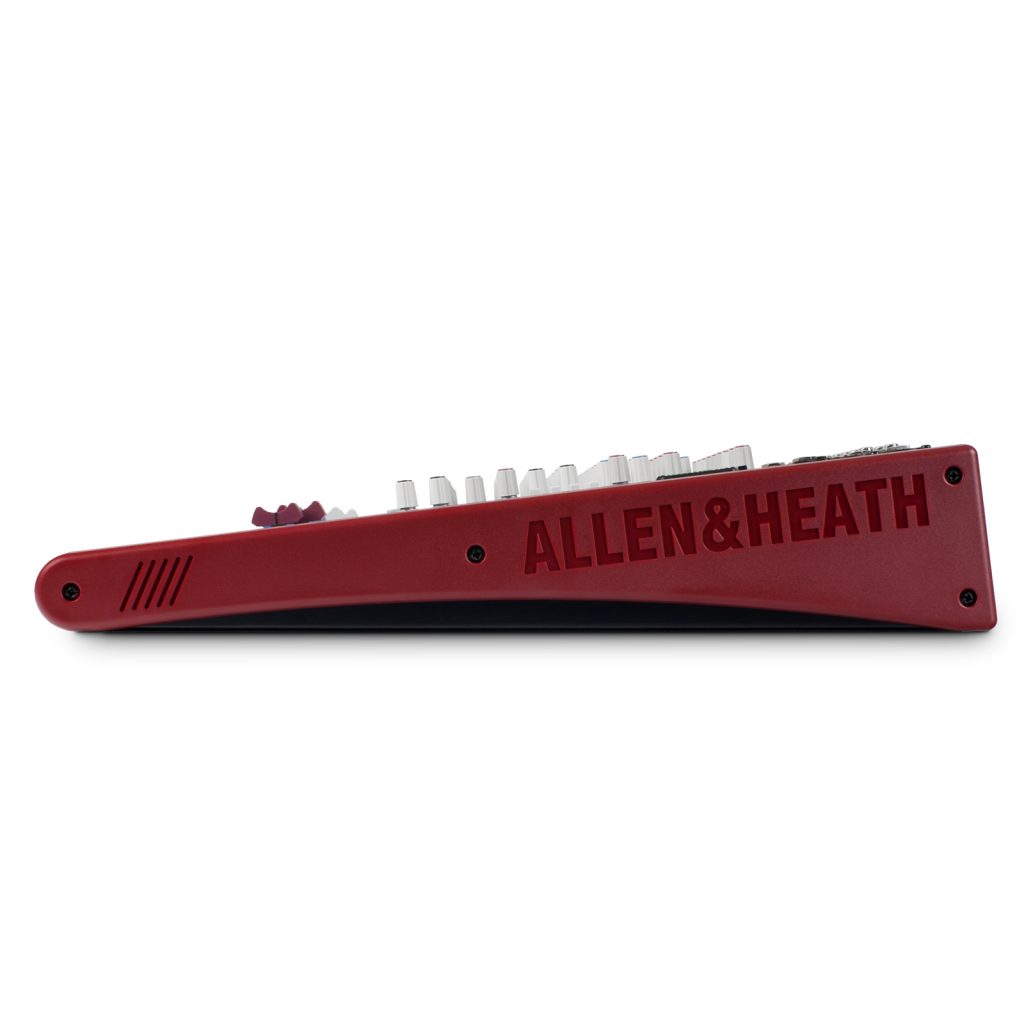

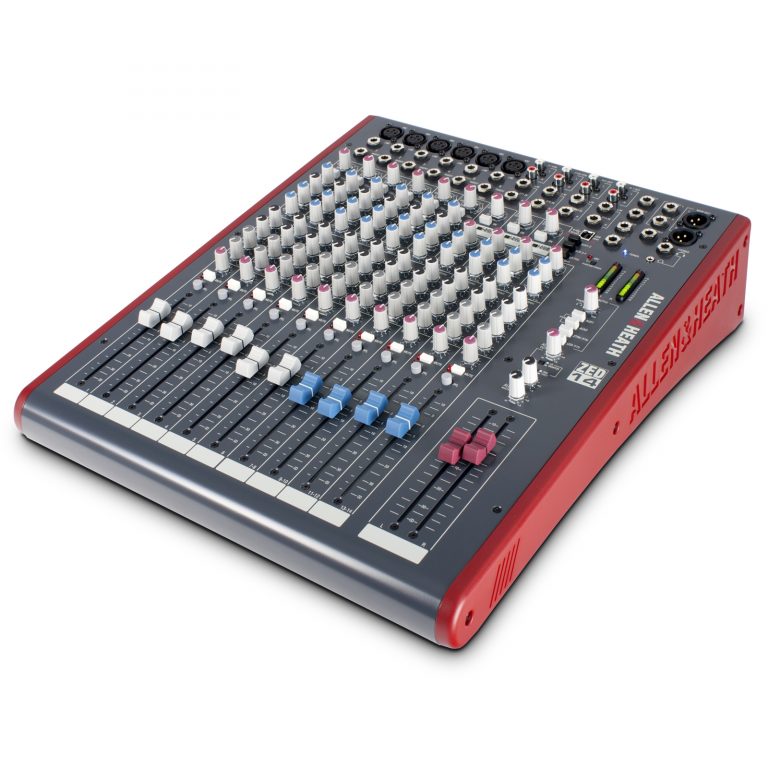

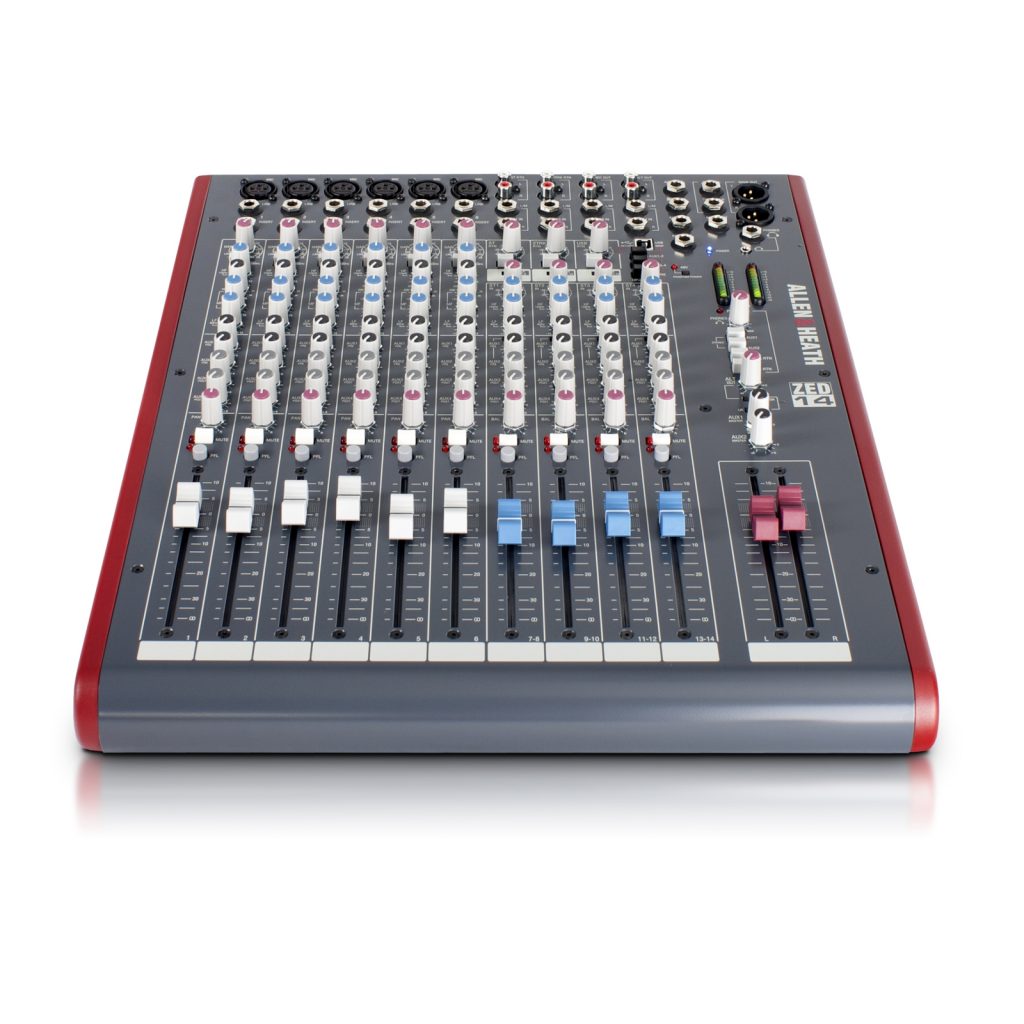

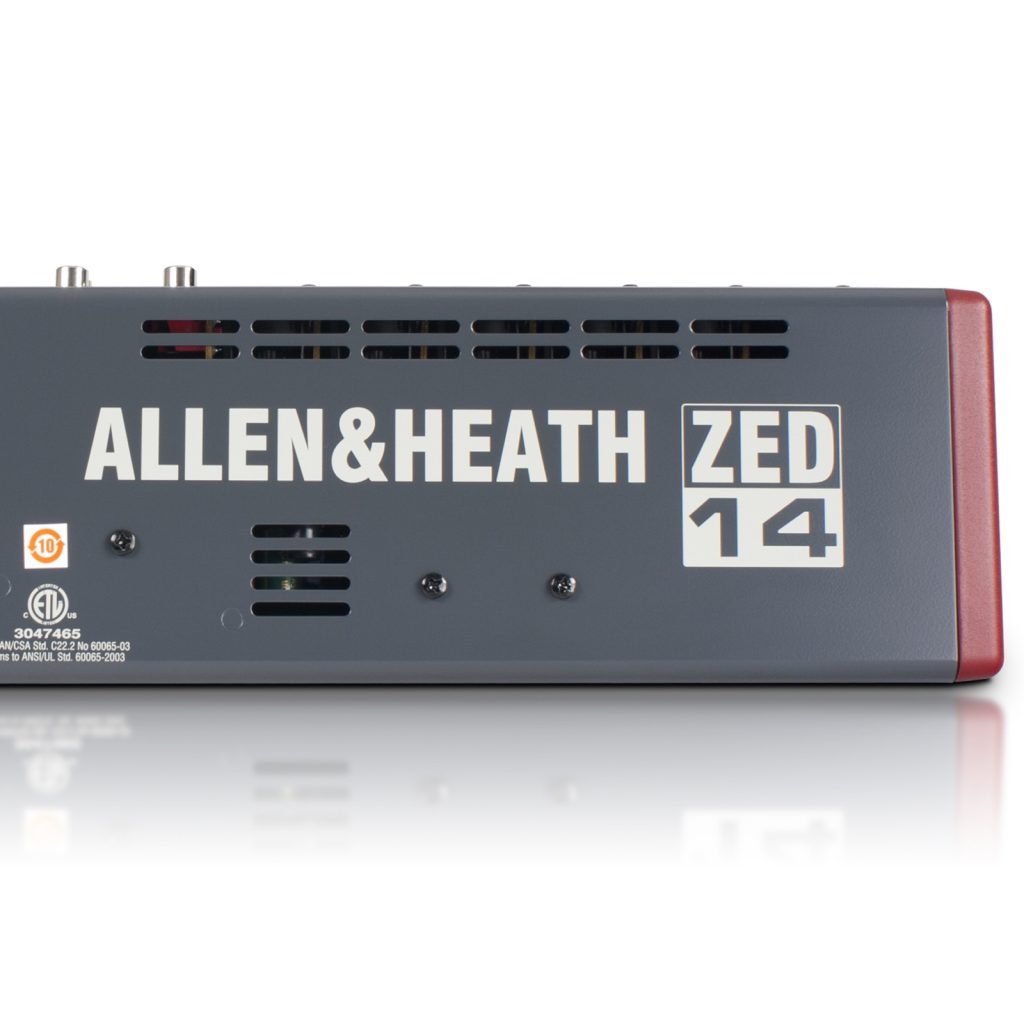

The Allen and Heath ZED-14 Mixing Console is a flexible, compact mixing desk for today’s home studio, project recording and small live sound reinforcement applications. The ZED-14 features 14 inputs comprised of 6-mono and 4-stereo channels. The mono inputs provide high quality microphone preamps and three-band EQ. The ZED-14 features a USB connector for direct integration with Mac and Windows computers and a copy of Sonar LE recording software is included.
- USB Connection
- A USB connection provides direct connection to Mac and Windows computers. Sonar LE recording software is also included.
- Six Mono Inputs
- There are six mono channels with line and microphone input connections.
- Four Stereo Inputs
- The four stereo channels feature stereo-paired 1/4″ phone connectors for stereo devices such as recorders, effects, keyboards, etc.

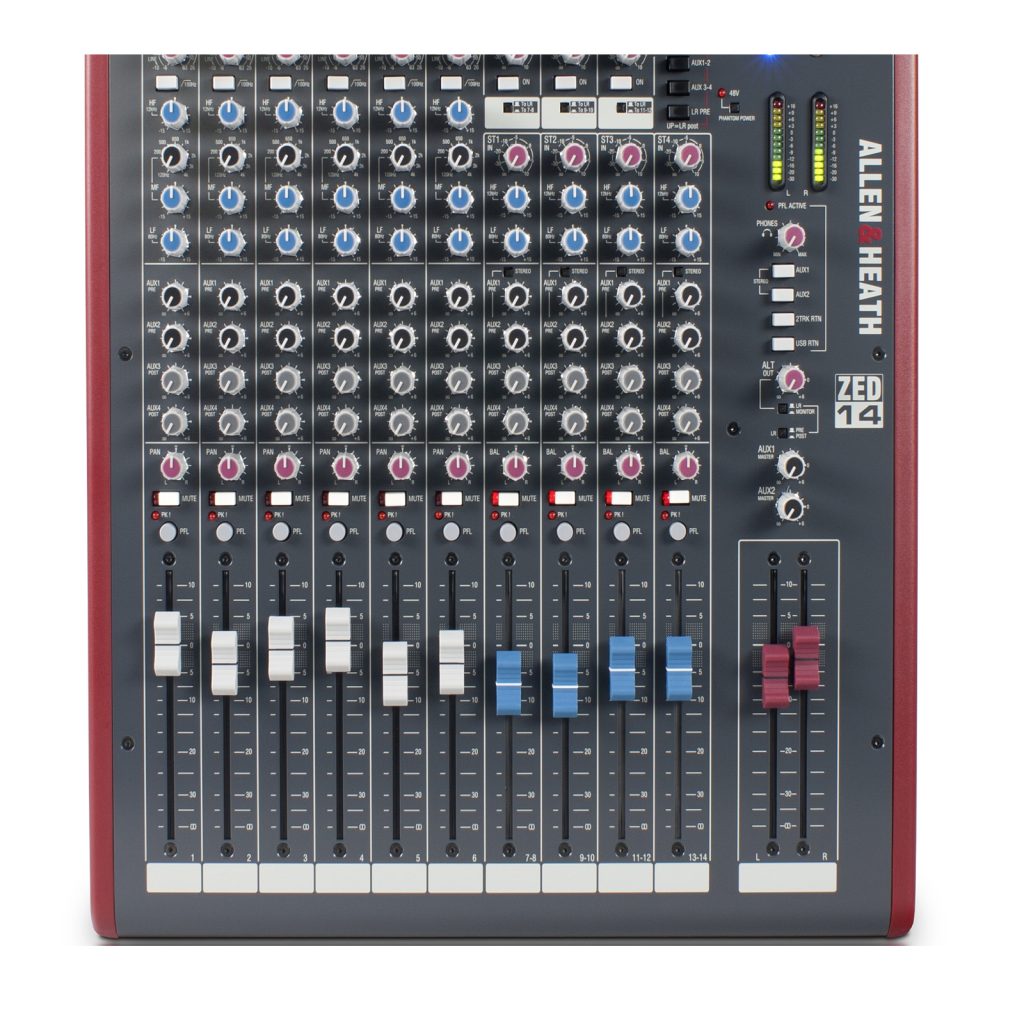

- Flexible EQ Section
- All mono channels feature a 3-band EQ with sweepable mid-range. The stereo channels feature 2-band EQ.
- Inserts
- Inserts on all mono channels and stereo output provide flexible routing and control to outboard processors, effects, monitors, etc.
- Balanced Outputs

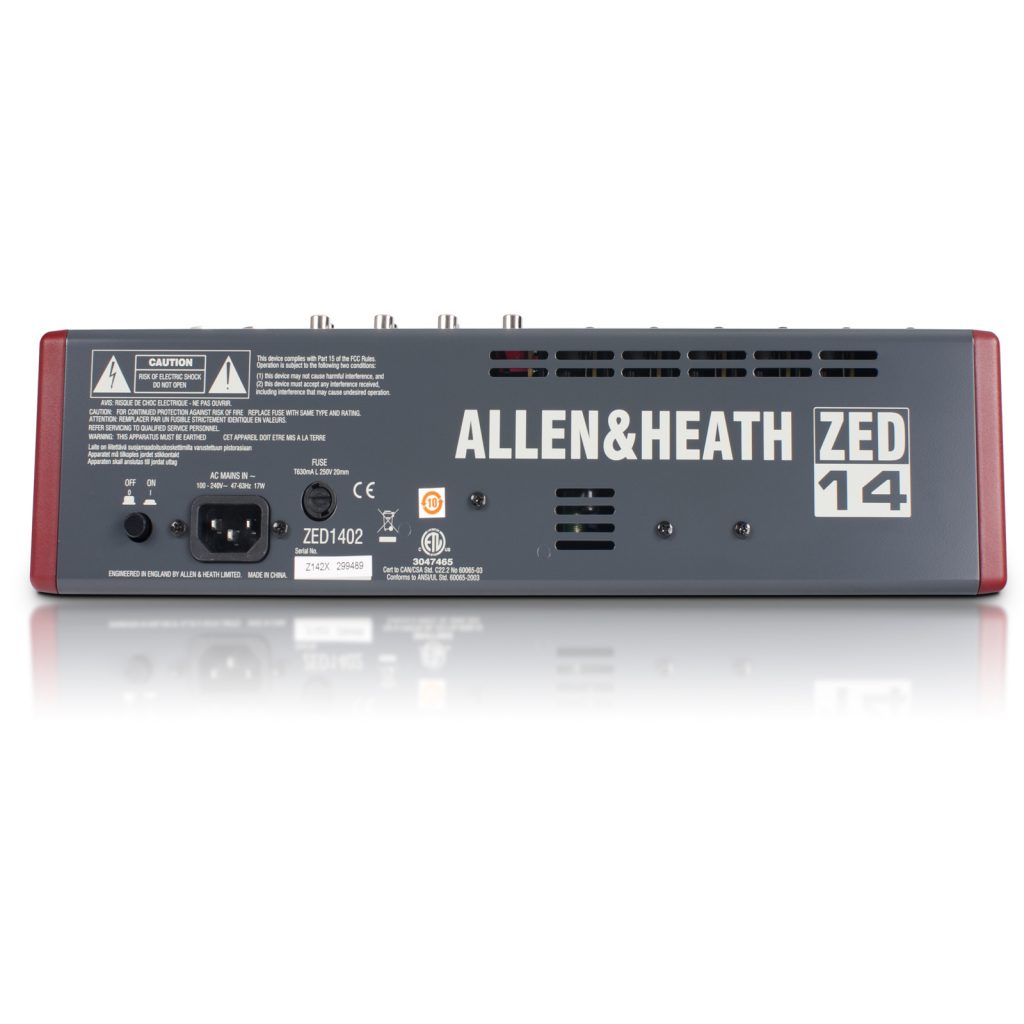

- The main output section feature a pair of balanced XLR connectors.
Especificações Técnicas
| Total # Of Inputs | 14 |
| Mic/Line Inputs | 3-pin XLR Balanced Microphone x3 1/4″ Phone Balanced Line x14 |
| Stereo Line Inputs | ST1 – ST4 1/4″ Phone L/R Stereo |
| In-Line Inputs/Returns | No |
| AUX Sends | 1/4″ TRS Phone x4 |
| AUX Returns | 1/4″ TRS Phone x4 |
| Inserts | 1/4 TRS Phone x8 (Mono chs and Main Stereo Out) |
| BUS (Group) Outputs | No |
| 2 Trk Master I/O | Main Output: Balanced 3-pin XLR |
| ALT I/O | USB Connector 1/4″ Phone Mono Out |
| Monitor Outputs | RCA Stereo Phono – ALT Out RCA Stereo Phono – REC Out |
| EQ Section | 3-Band with Mid Sweep On all Mono Channels 2-Band On Stereo Channels |
| Solo/Mute | Mute and PFL Solo |
| Channel Level Control | 100mm Fader |
| Trim/Gain Control | Rotary Control |
| Phantom Power | +48V Switched Globally |
| Metering | 12 Segment Peak LEDs |
| Frequency Response | 20Hz to 20kHz |
| Dynamic Range | Not Specified By Manufacturer |
| Signal-to-Noise Ratio | -88dBu |
| Total Harmonic Distortion (THD) | 0.004% |

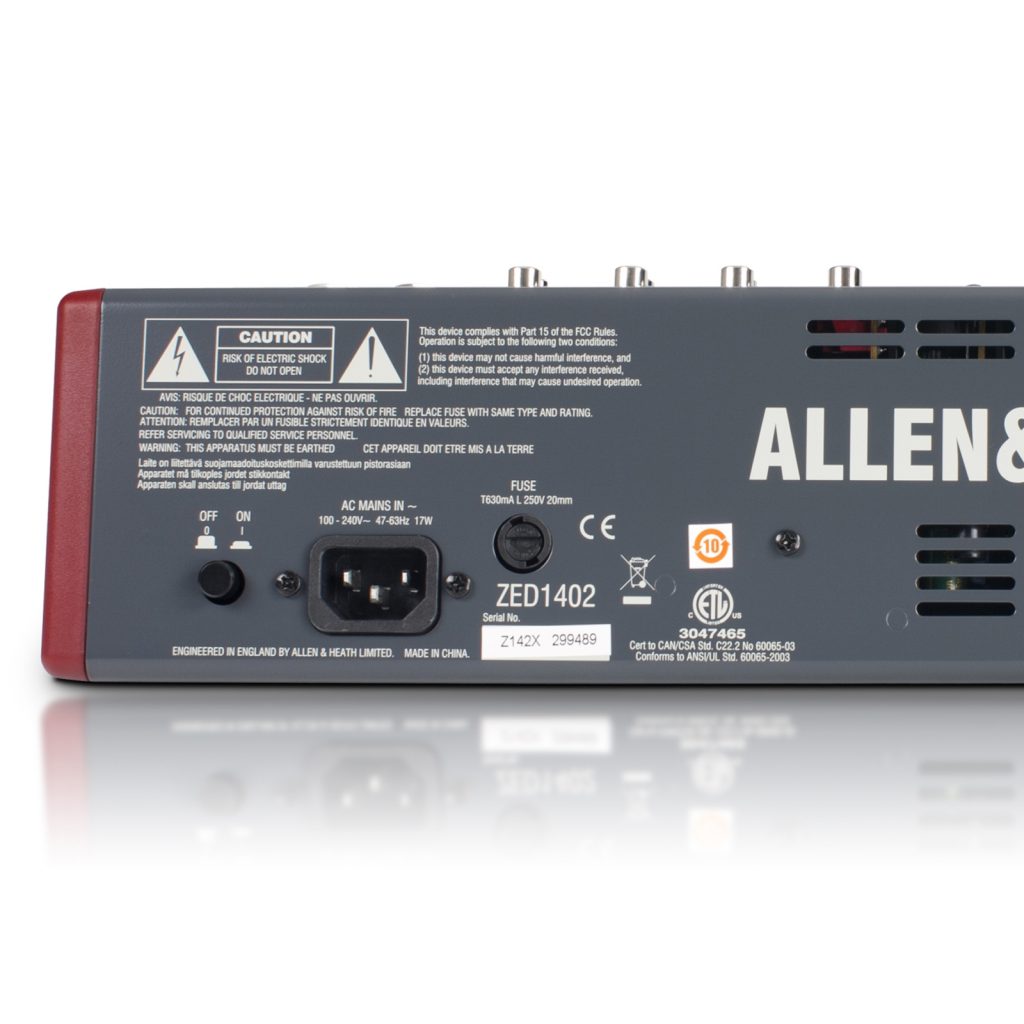

| Power Supply | 100-240V 47-63Hz 40W Max |
| Dimensions (WxHxD) | 15.11 x 4.35 x 18.30″ (384 x 110.69 x 465mm) |
| Weight | 14.3 lb (6.5 kg) |
