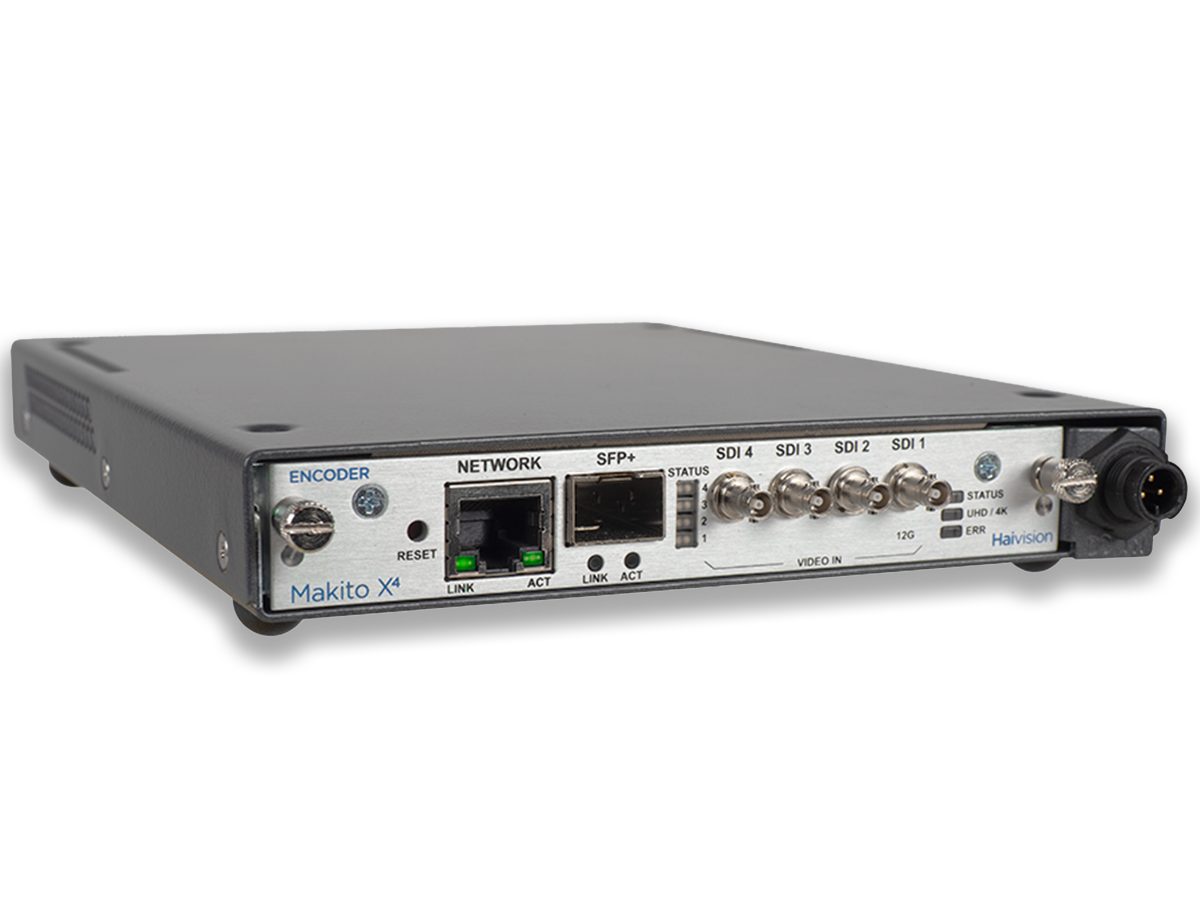

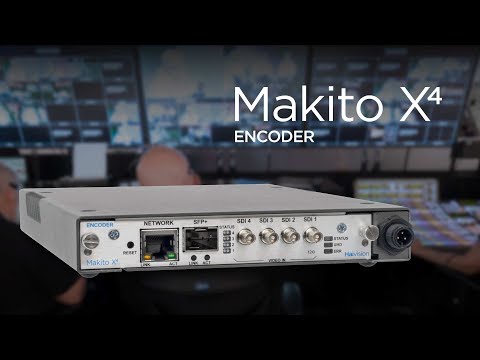

Haivision Makito X4 Video Encoder
Price on request /day
The Haivision Makito X4 Quad is a broadcast-grade IP encoder that converts up to four 3G-SDI feeds — or a single 4K UHD source — into secure streams via SRT, HEVC, and H.264 with ultra-low latency. It bridges your SDI world (cameras, switchers, routers) to IP, delivering 4:2:2 10-bit HDR video to any destination on the planet in under a second.
For productions shooting in Lisbon with remote contribution to London, Paris, or New York, the Makito X4 eliminates the two biggest IP risks: latency and unreliable internet. SRT compensates for packet loss without dropped frames, AES-256 encrypts confidential content end-to-end, and the browser-based UI means full four-camera configuration in 10–15 minutes — no installed software, no per-seat licensing, no unknowns on a 6 AM call.

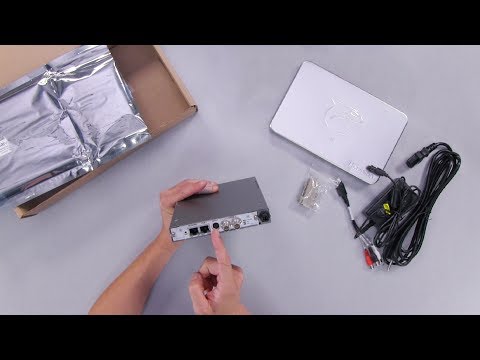

Articles included in this rental
- 1× Haivision Makito X4 Quad (firmware updated, factory-reset between jobs)
- 1× 12V DC PSU with IEC C13 EU (Schuko) and US (NEMA) power cables
- 1× 1RU rack-mount ear kit
- 4× BNC 3G-SDI cable 2m + 2× BNC 5m (Belden 1694A)
- 2× CAT6 STP patch cables — 2m and 5m
- 1× USB-A to RJ45 cable (CLI access)
- 1× Digital Azul cheat sheet (default IP, login, SRT defaults)
- 1× Pelican 1450 hard case with custom foam insert
- 1× QC tag with last service date and firmware version
Related Products
-
Kit Blackmagic PYXIS 12K PL
Reference: 50313250,00 € + IVA /day Select Dates -
Kit Sony BURANO 8K + 5 ARRI/ZEISS Ultra Prime Lenses
Reference: 50160600,00 € + IVA /day Select Dates -
INTINOR DIREKT LINK COMPACT BACKPACK
Reference: A603-T17-1Price on request /day Select Dates -
Antena Starlink Standard
Reference: 50132Price on request /day Select Dates -
Kit Sony FX6 + 3 Objectivas Canon CN-E Cine Prime – EF
Reference: 11037-1350,00 € + IVA /day Select Dates -
Kit Sony FX3 + DJI RS 4 PRO Combo + 5x Cooke Lens + Tilta Nucleus Nano II
Reference: A603-T19Price on request /day Select Dates -
LiveU – LU300 + LU4000 HEVC
Reference: 5710845844400,00 € + IVA /day Select Dates -
MiNE Media Q8 4G Live Streaming Bonding Video Encoder
Reference: 29007250,00 € + IVA /day Select Dates
Additional Information
| Spec | Value |
|---|---|
| Video inputs | 4× 3G-SDI BNC (or 1× 4K via quad-link) |
| Codecs | HEVC + H.264 simultaneous |
| Max resolution | 4K UHD p60 / 4× 1080p60 |
| Chroma / Bit depth | 4:2:2 10-bit |
| HDR | HDR10 (PQ) + HLG |
| Audio | Up to 64 embedded SDI channels |
| Protocols | SRT, RTMP, RTSP, UDP/RTP, HLS |
| Encryption | AES-128/256 via SRT |
| Management | HTML5 Web UI, REST API, SNMP, SSH |
| Power | 12V DC / ~25W |
Operational advantages:
- Four-camera setup live in 10–15 min from case open
- SRT recovers up to ~10% packet loss without visible artefacts
- Four frame-accurate ISOs in a single 1RU box
- Compatible with any SRT decoder: VLC, OBS, vMix, FFmpeg, Wirecast
- Cameras (via SDI): ARRI Alexa 35 / Mini LF, Sony Venice 2 /Burano / FX9 / FX6, RED V-Raptor / Komodo, Blackmagic URSA, Panasonic VariCam, broadcast ENG chains.
- Switchers: ATEM Constellation, Ross Carbonite, Grass Valley, TriCaster.
- Decoders: Makito X4 Decoder, StreamHub, VLC, OBS, vMix, FFmpeg.
- 12V DC @ ~2A via included PSU (100–240V AC universal). Battery operation possible via D-Tap or V-mount plate (add-on). UPS on AC feed recommended for live events.
- Keep management and streaming traffic on separate VLANs
- Set SRT latency buffer to 4× measured RTT (Lisbon→NY: 500–800ms typical)
- Do not enable 10-bit HDR encoding without confirming a full HDR-capable pipeline at the decoder end
- Always have a secondary network path (LTE router) on any job where the stream is the deliverable
