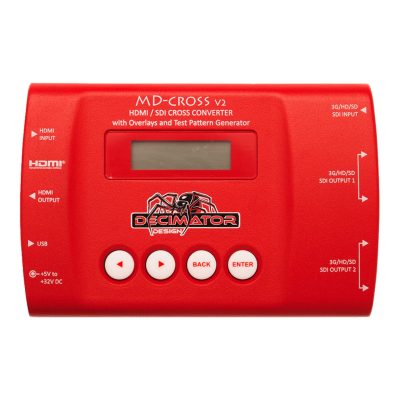

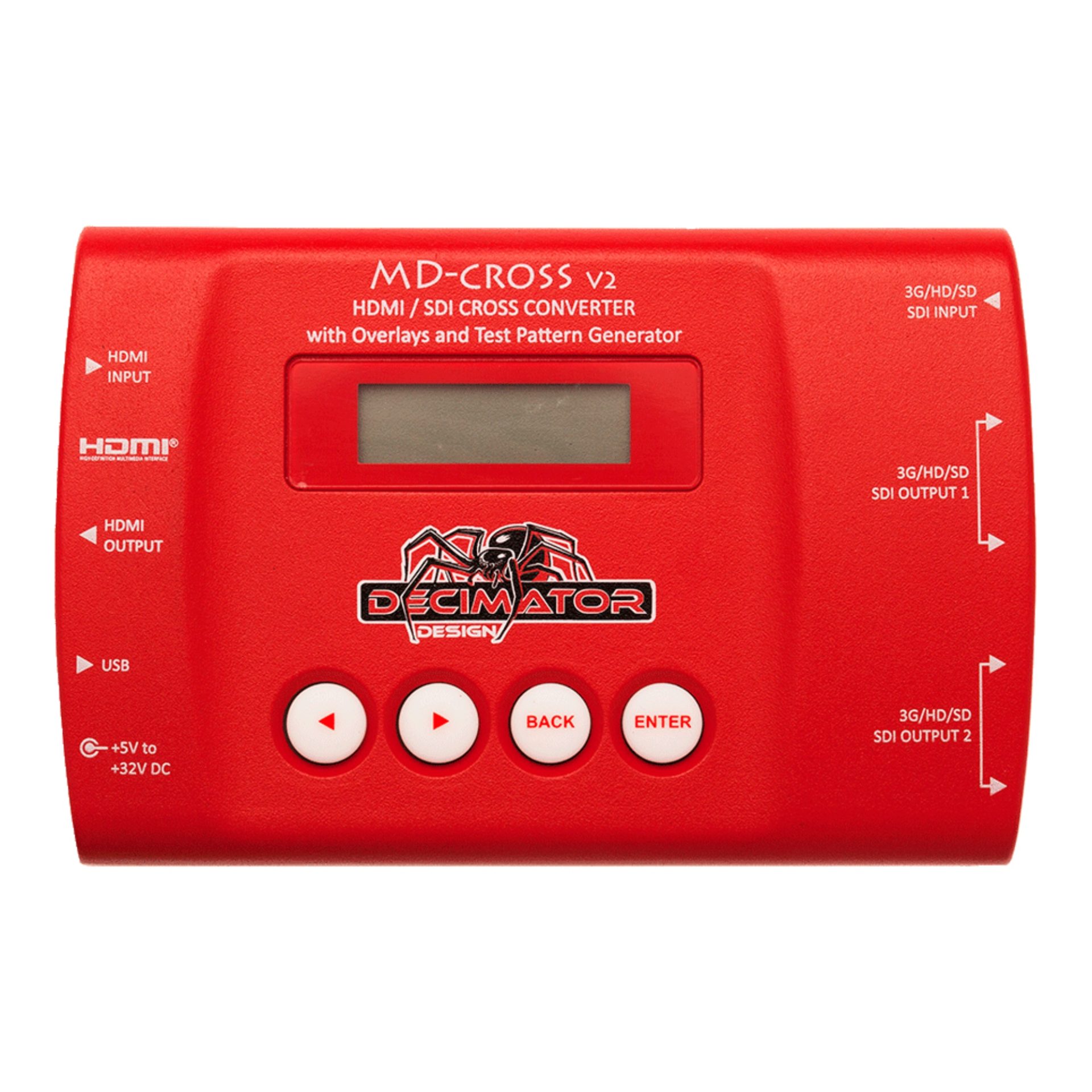

Decimator MD-CROSS HDMI/SDI Cross Converter

A pocket-size converter with a built-in test signal generator. The MD-CROSS converts between HDMI and 3G/HD/SD-SDI in both directions at the same time, with a broadcast-grade scaler and frame rate conversion on either path. On top of everything the Decimator MD-HX does, it adds a test pattern generator and an audio tone generator, so you can line up monitors, projectors, LED processors and recorders before the source is live. Used in OB setups, event video control, studio installs and camera-to-monitor chains across Portugal. For 4K and 12G-SDI signals, go for the Decimator 12G-CROSS.

Included in this rental

• Decimator MD-CROSS converter
• 12V DC power supply

Key specs

• Simultaneous bidirectional HDMI to SDI and SDI to HDMI conversion
• 14 conversion modes, with scaling and/or frame rate conversion on one path
• Up, down and cross conversion between SD and HD formats up to 1080p
• Test pattern generator: 54 patterns, including luma and chroma zone-plates, in 26 output formats
• Audio tone generator for line-up
• 16-channel audio metering, safe title/safe action markers, centre cross and text overlays
• Horizontal and vertical image flip
• 3G-SDI Level A and Level B, with conversion between them
• Audio pair remapping on SDI and HDMI outputs
• LCD screen and buttons for setup on the spot, no computer needed
• Fanless aluminium housing

Connections (I/O)

• Inputs: 1x 3G/HD/SD-SDI, 1x HDMI
• Outputs: 1x HDMI, 4x 3G/HD/SD-SDI (loop-through and converted outputs; usable as a 1-to-4 distribution amplifier)
• USB: control and firmware
• Power: 12V DC

Need setup or operation? Broadcast technicians available for your signal chain — format conversion, line-up, routing and live monitoring on request. Ask for it when requesting your quote.
