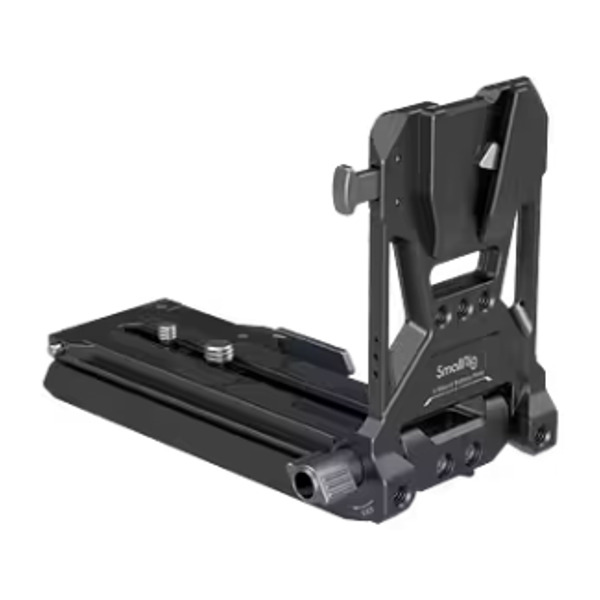

SmallRig 4323 V-Mount Battery Plate Kit

Run a compact cinema camera on V-Mount power, ready in minutes. The SmallRig 4323 is an all-in-one baseplate kit: V-Mount battery plate, extendable base with a built-in Manfrotto 501-type quick-release plate, and 15mm rod clamps front and rear, in one unit that mounts straight to the camera. Built for small cinema bodies such as the Sony FX6, Canon C70, Panasonic BGH1/BS1H, RED KOMODO and Z CAM, it keeps the camera running on a single V-Mount through long takes and leaves the rig open for follow focus, matte box or a wireless video receiver. Pair it with a SWIT V-Mount 98Wh for light handheld work or a SWIT V-Mount 240Wh for full shooting days. Need a simpler plate for a cage? See the SmallRig V-Mount Adapter Plate with Adjustable Arm.

Key specs

• For cameras up to 120 mm long: Sony FX6, Canon C70, Panasonic BGH1/BS1H, RED KOMODO, Z CAM

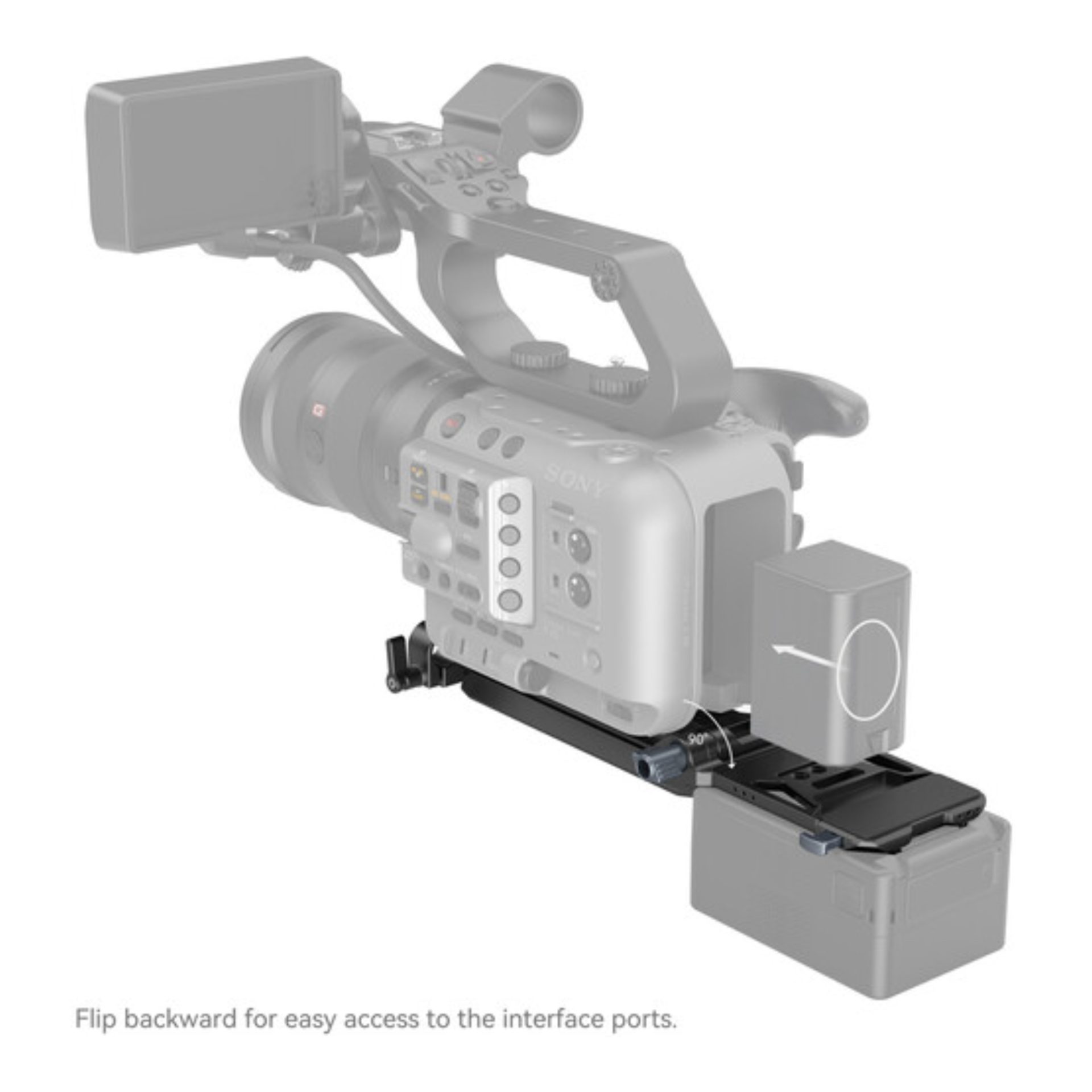

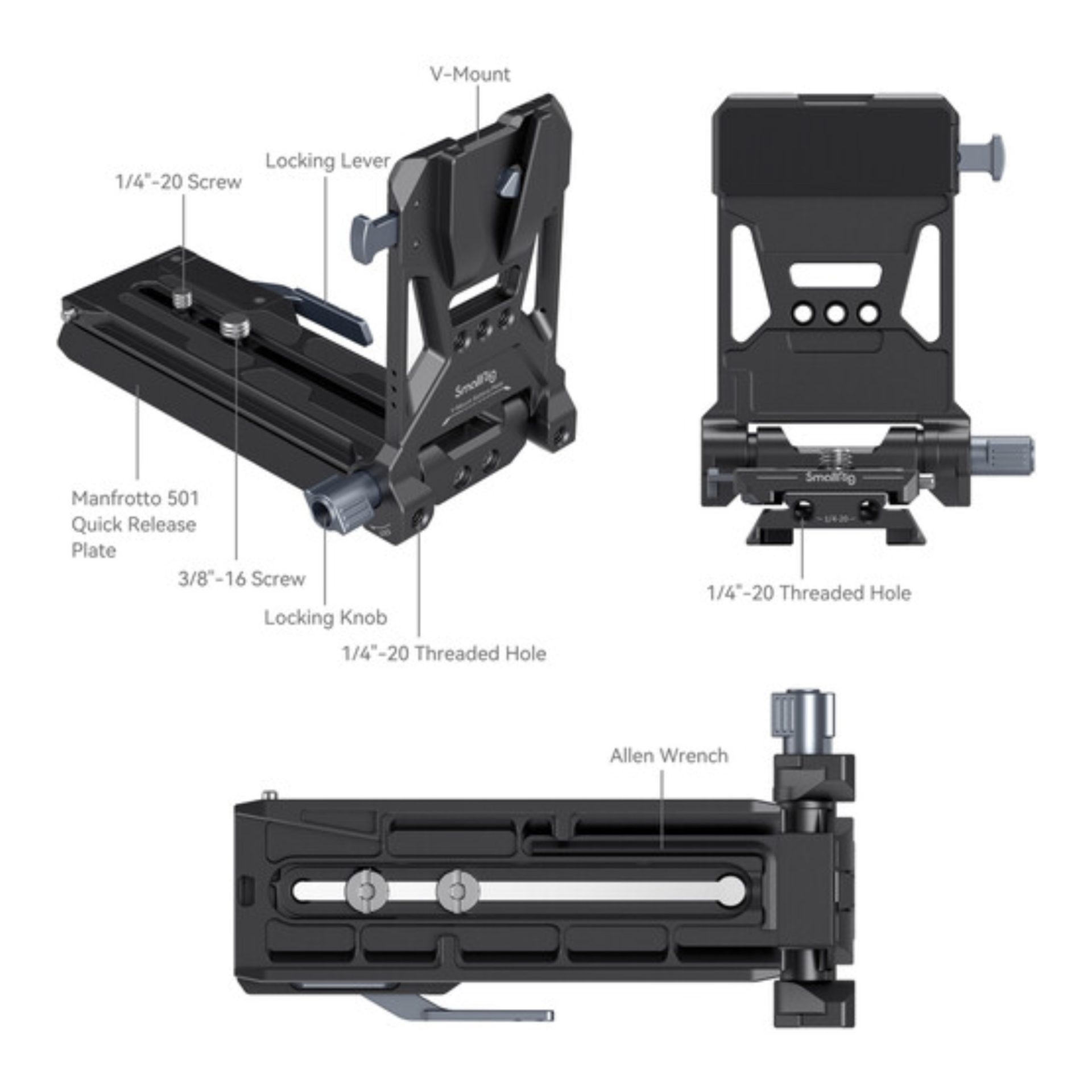

• V-Mount plate rotates 180° — folds forward for transport and clears the rear connectors of the camera

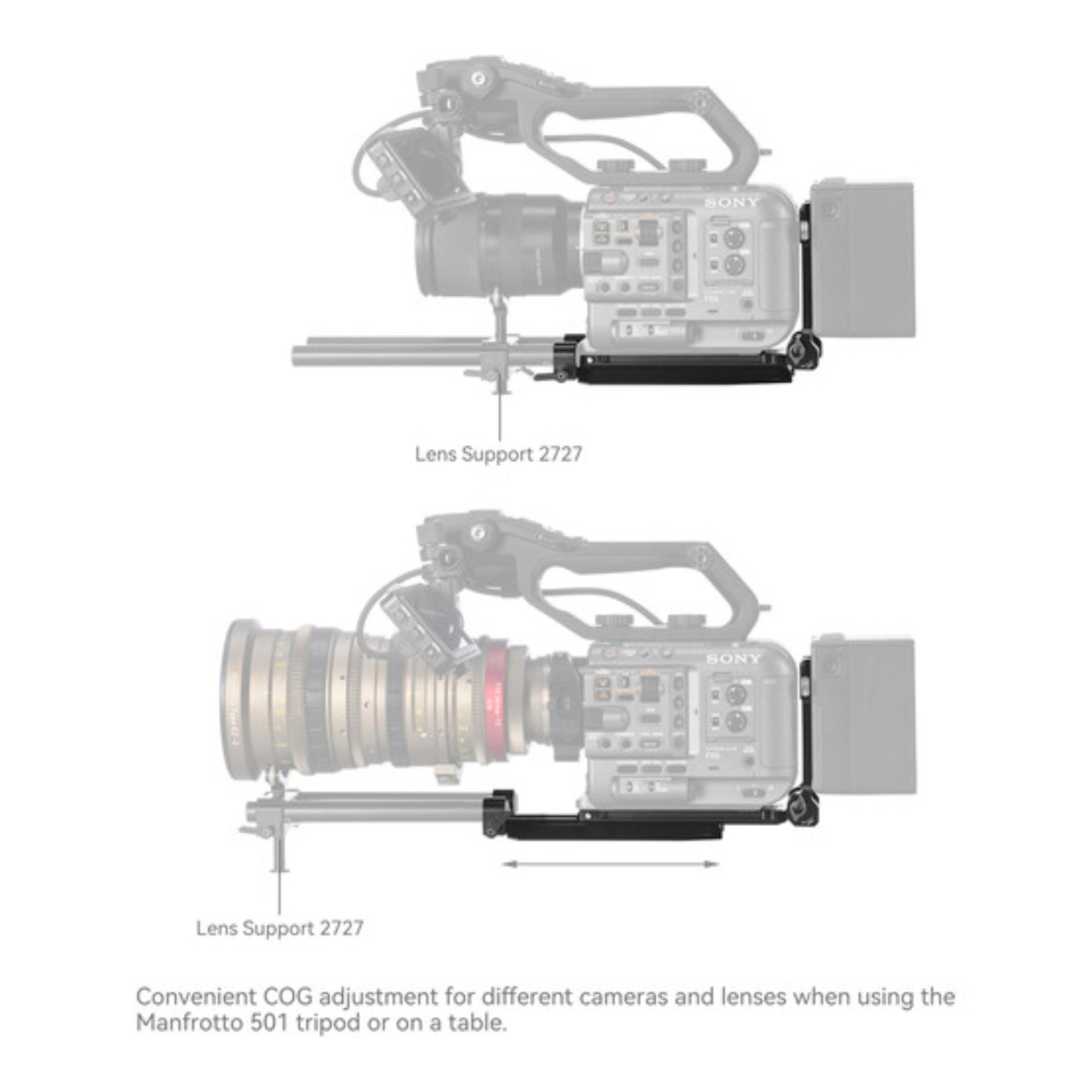

• Extendable base (approx. 100 mm travel) to rebalance front-heavy lens setups
• Built-in Manfrotto 501-type quick-release plate — tripod to handheld in seconds

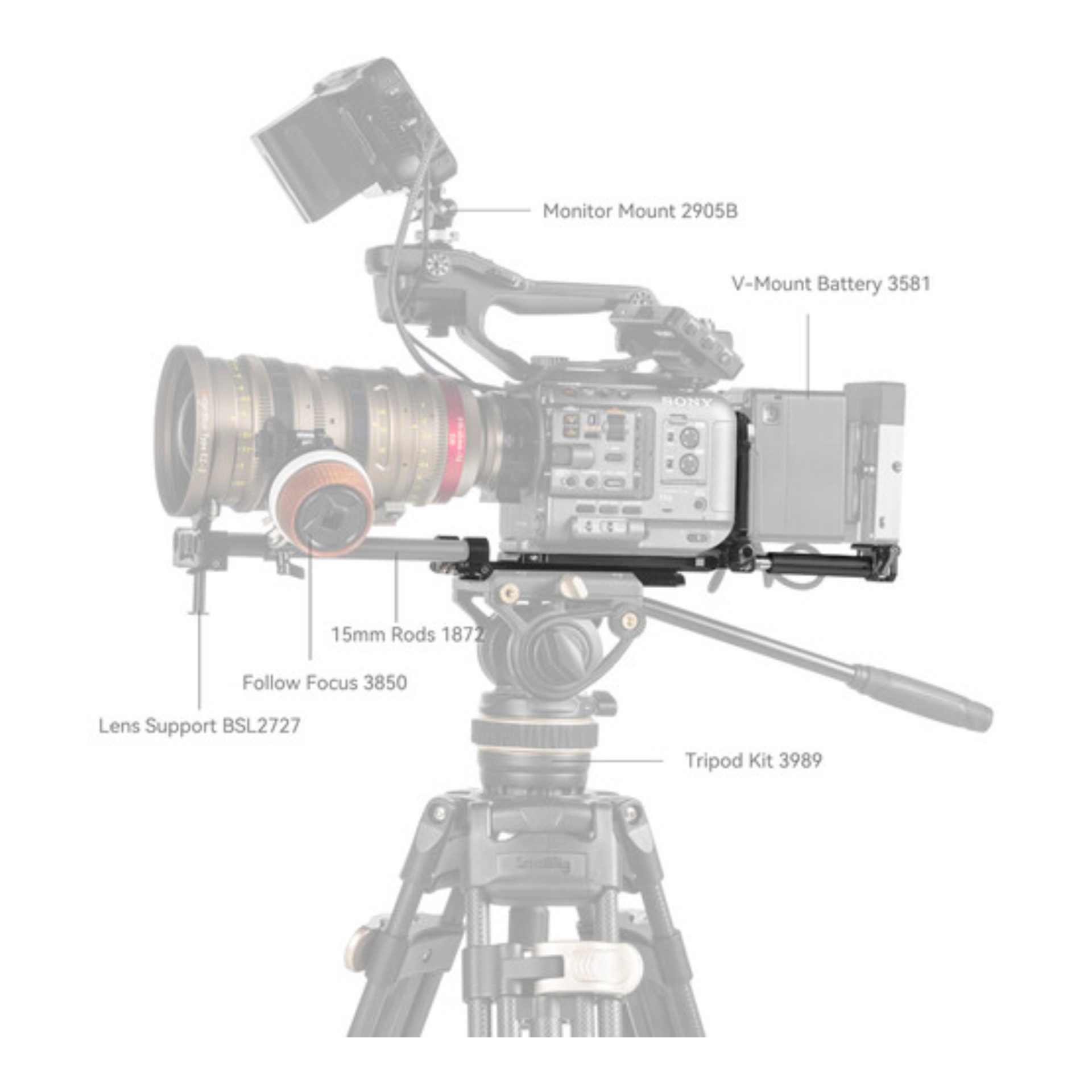

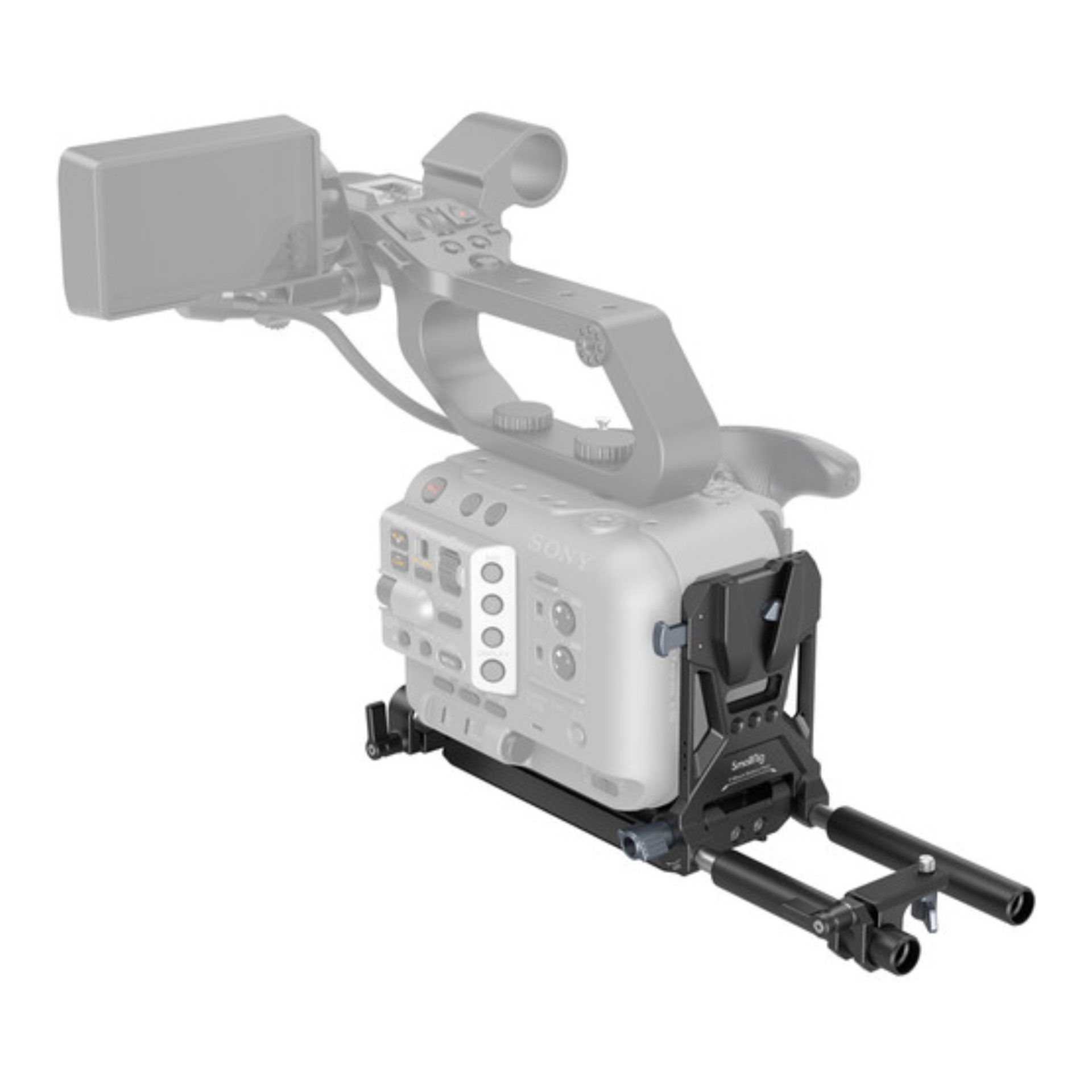

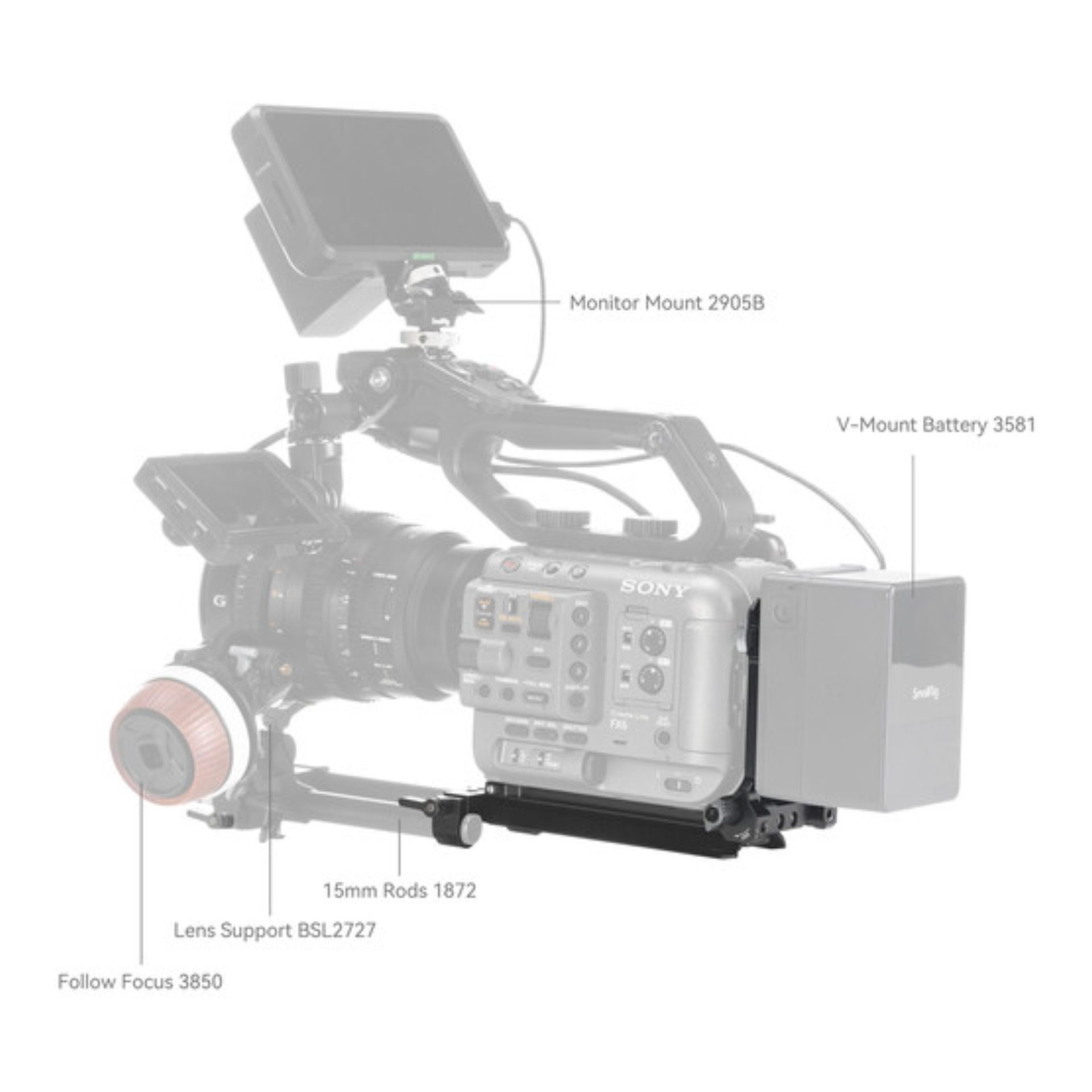

• Front 15mm rod clamp for follow focus, lens support or matte box; rear 15mm rods for a wireless receiver or chest pad
• Passive V-Mount plate (no electronics): the camera is powered from the battery D-Tap — ask for the right D-Tap cable for your camera when requesting your quote

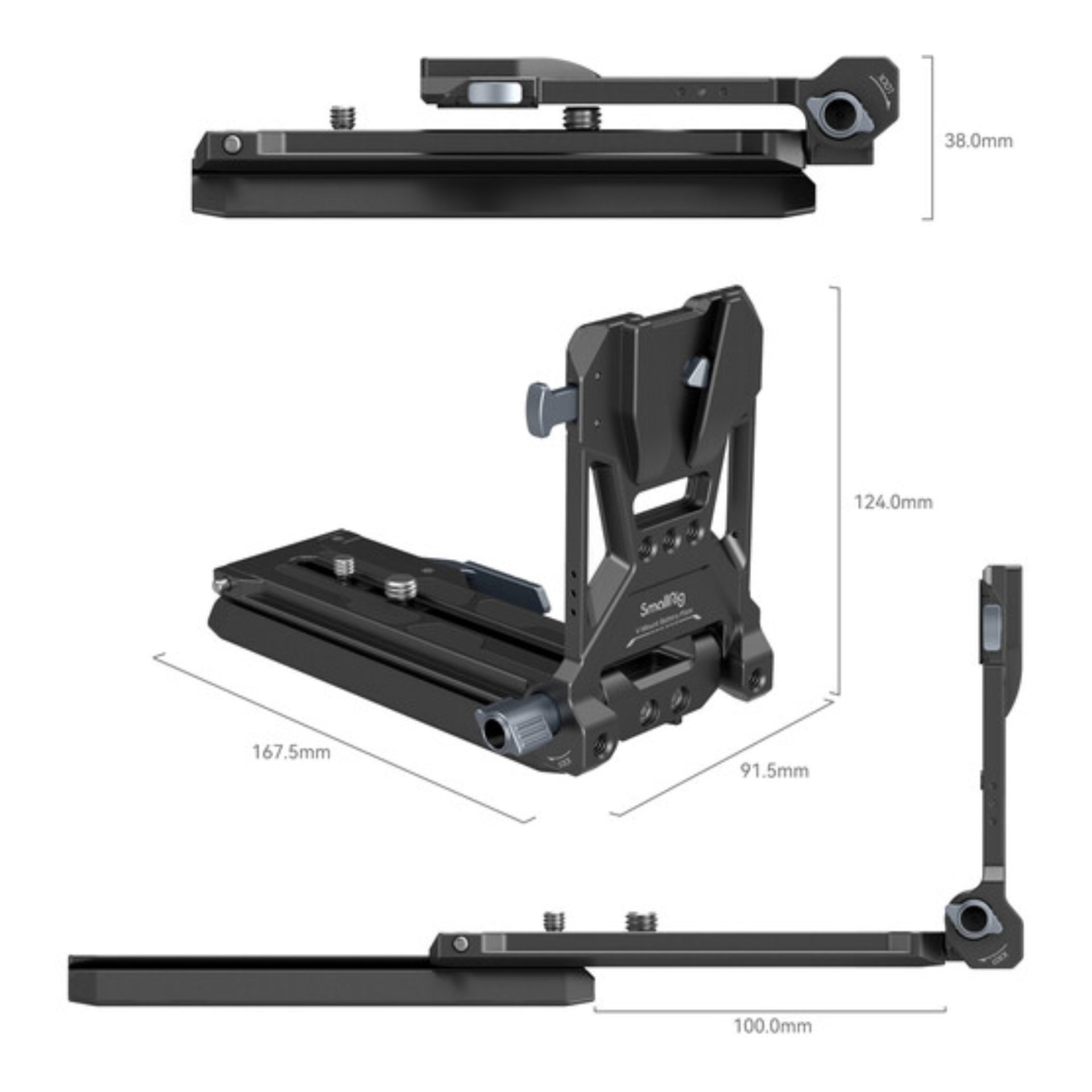

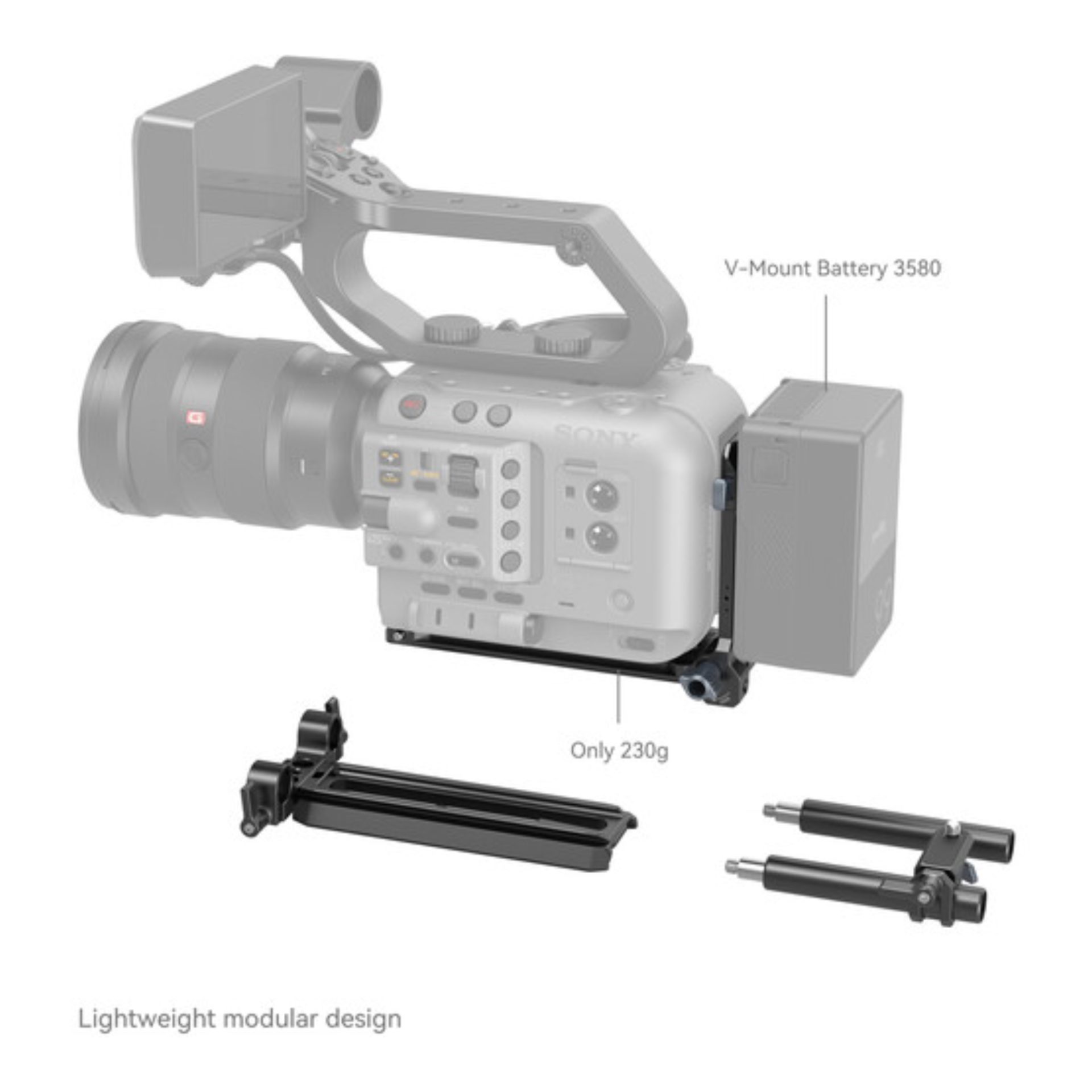

• 446 g complete, 230 g without the 501 plate · aluminium alloy and stainless steel · 10 kg load capacity

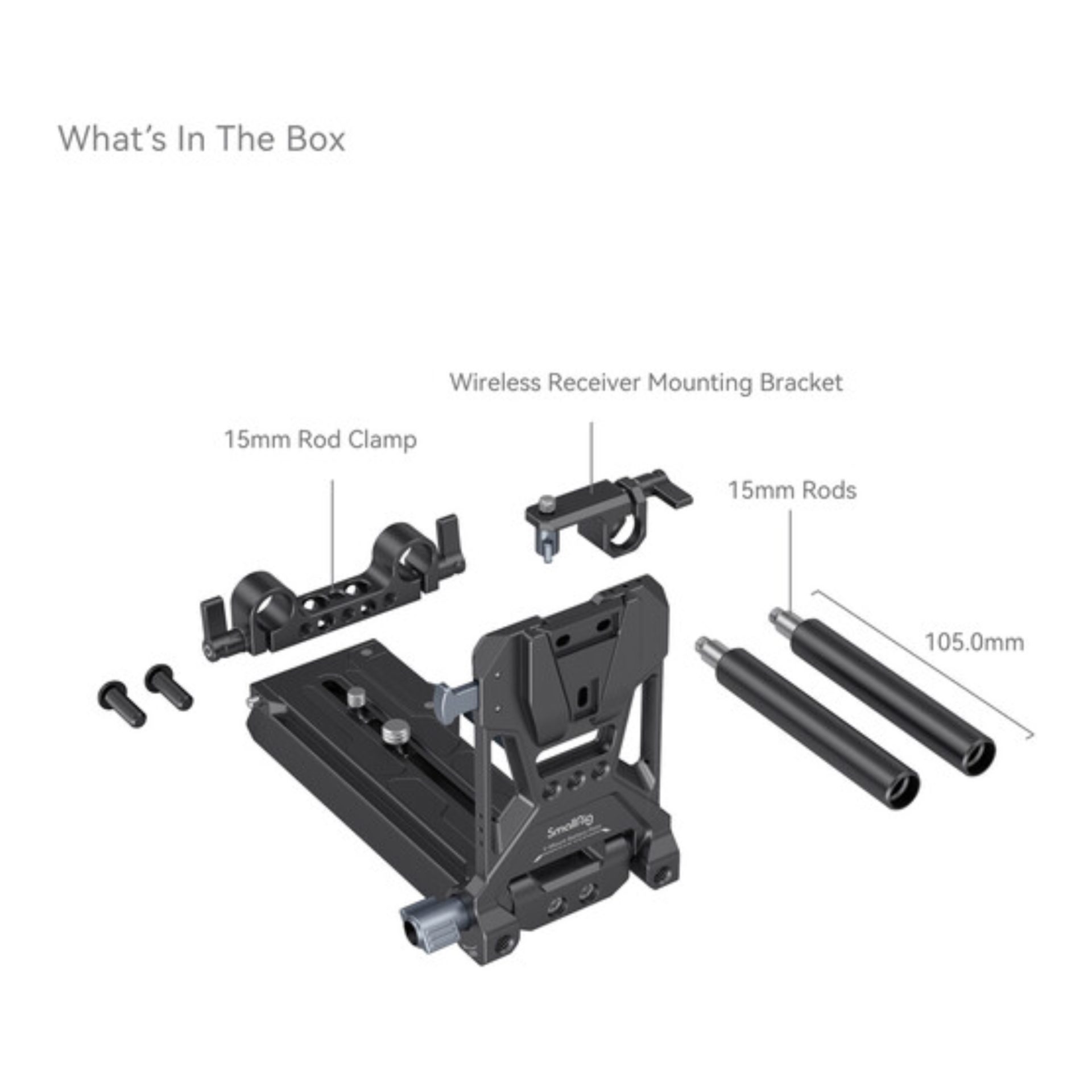

• 1x SmallRig 4323 V-Mount battery mount plate kit (extendable base with Manfrotto 501-type QR plate)
• 1x V-Mount plate
• 1x 15mm rod clamp
• 2x 15mm rods
• 1x wireless receiver mounting bracket
• 2x 1/4″-20 screws

Batteries not included — rented separately.
