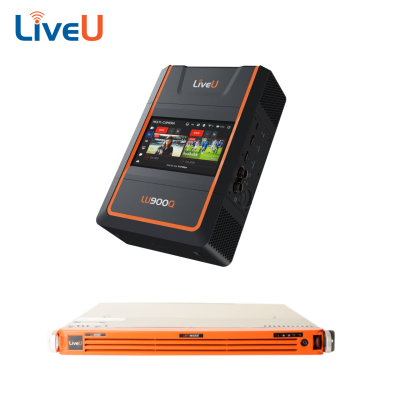

Kit LiveU LU900Q + LU4000

A complete live transmission chain, from the field to your control room, in one rental. The LU900Q sends broadcast-quality live video from anywhere over bonded 5G, and the LU4000 receives and decodes it for SDI or IP output. No satellite truck, no fibre line, and no receiving infrastructure of your own. Used by broadcasters and production companies for live sports, news coverage, festivals and corporate events across Portugal. Already have a LiveU server? Rent the LU900Q on its own.

Included in this rental

• LiveU LU900Q field unit in the ProShell RF-shielded backpack, with AC adaptor
• LiveU LU4000 1U receive server, with rack-mount ears and AC cable
• 4 SIM cards from 3 different operators, with unlimited data in Portugal

Key specs

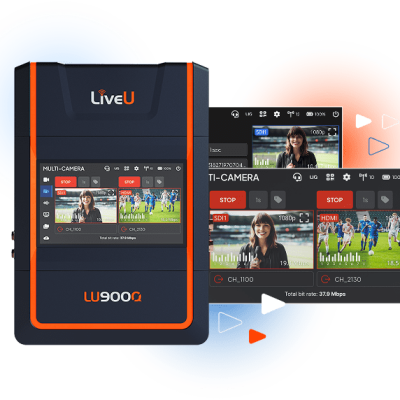

• LU900Q: 6x internal 5G MIMO modems + eSIM, up to 11 bonded links, single camera up to 1080p60 (SDI/HDMI/IP/USB), up to 7 hours of battery life
• LU4000: 1U rackmount HEVC/H.264 receive server — decodes 1x 4K over 12G-SDI or up to 4x independent full HD feeds over 3G/HD-SDI
• IP output and retransmission: NDI, SRT, RTMP and MPEG-TS
• End-to-end LiveU Reliable Transport (LRT™) with adaptive bit rate and error correction
• Managed remotely via LiveU Central

Optional (price on request)

• LU900Q licenses: 4K, 10-bit HDR 4:2:2, dual camera, 16 audio channels per camera (up to 32), dual video return, dual intercom, LiveU IQ
• Starlink satellite terminal, added to the bonded connection — recommended for events with large crowds, where mobile networks saturate
• Working abroad? Contact us for data plans

Connections (I/O)

• LU900Q: 2x SDI (12G + 3G/HD), 2x HDMI 2.0, 2x Ethernet, Wi-Fi 6, wired or Bluetooth intercom, HDMI/SDI video return
• LU4000: 1x 12G-SDI (4K) or 4x 3G/HD-SDI out, IP out over Ethernet

Filming in Portugal?

From a single ENG operator with the LiveU to a full EFP crew with camera, sound and lighting, plus a local fixer/producer and production vans with driver. Broadcast technicians available to set up and monitor your transmission. Ask for it when requesting your quote.
